Product Introduction

The self-unloading semi-trailer, also known as the dump truck and engineering vehicle, consists of an automobile chassis, a hydraulic lifting mechanism, a suction device and a cargo compartment.

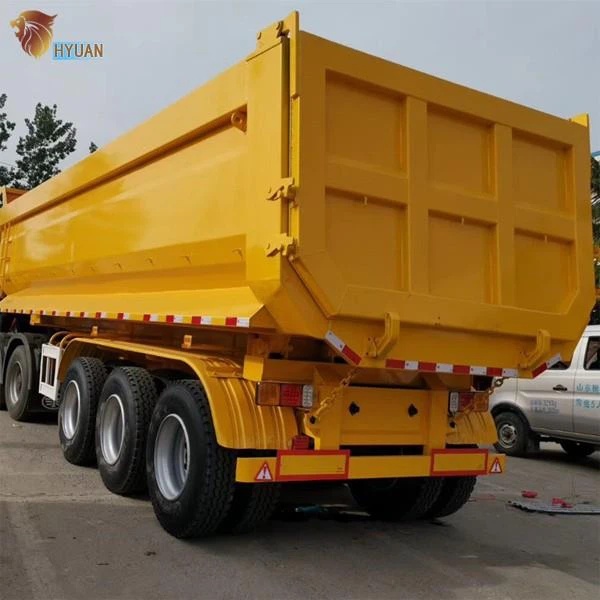

U-shaped dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. The corner of U-shaped box doesn't exist dead ends, unloading more clean; Adopt T700 High strength plates to lower the tare weight; reduce the damage of ore head on the box; U-shaped structure of the lower center of gravity to avoid the goods spilled.

Product specification

Product feature and application

1) Lighter tare weight. dump trailer adopts high-strength steel. It with a higher loading performance than the normal Q345 steel. In this case, the trailer's tare weight reduced by 20%~40%.

2) Less fuel. dump trailer can save 4~5L diesel for you within 100km.

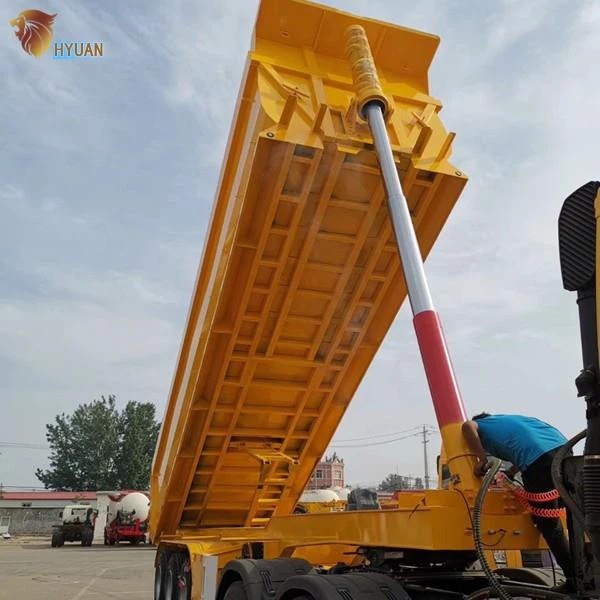

3) HYVA hydraulic lifting cylinder with a strong lifting power and its performance is stable. It also with the global quality warranty.

4) Fast discharge and less residual. The inside of CIMC tipper trailer body is smooth and without corner pockets. So, the trailer's discharge can be faster.

5) Lower ( 200-300mm ) centre of gravity due to no stiffeners, increases stability.

6) The optimized braking system makes the dump trailer can stop within a shortest braking distance.

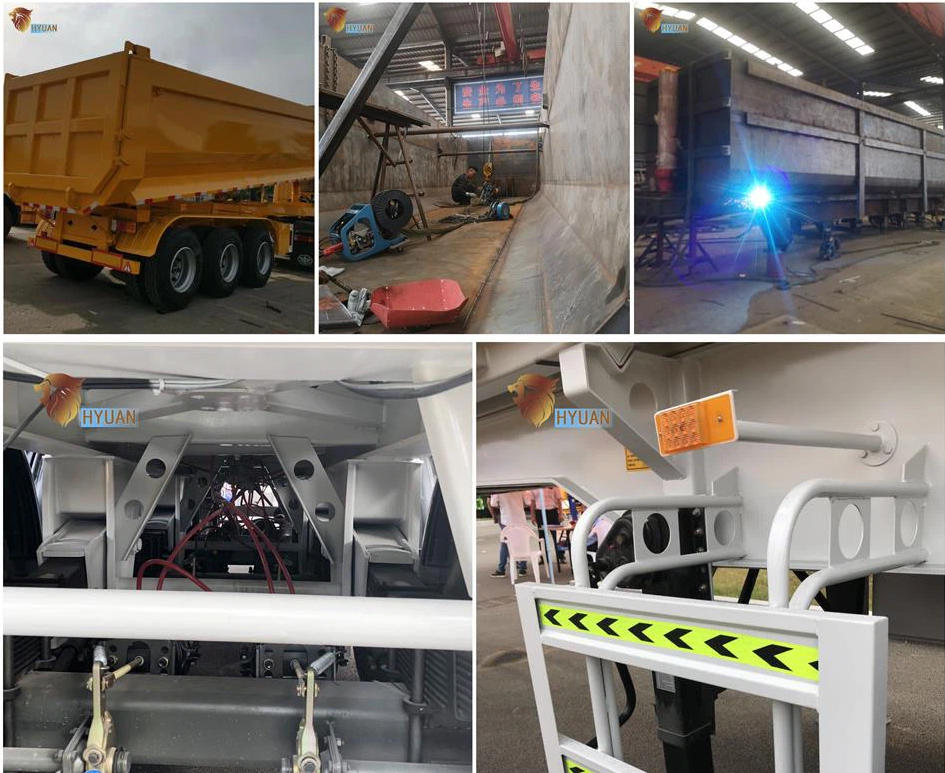

Production details

1) Main-frame: Longitudinal beam, using high strength structural steel and offering bending and shock resistance, can met heavy load requirments.

2) Sub-frame: Using high strength 16Mn structural steel and intergrated hydraulic system increase operation accuracy. Widened turning point of tipper body increase the overall stability, reliability and safety of the operation.

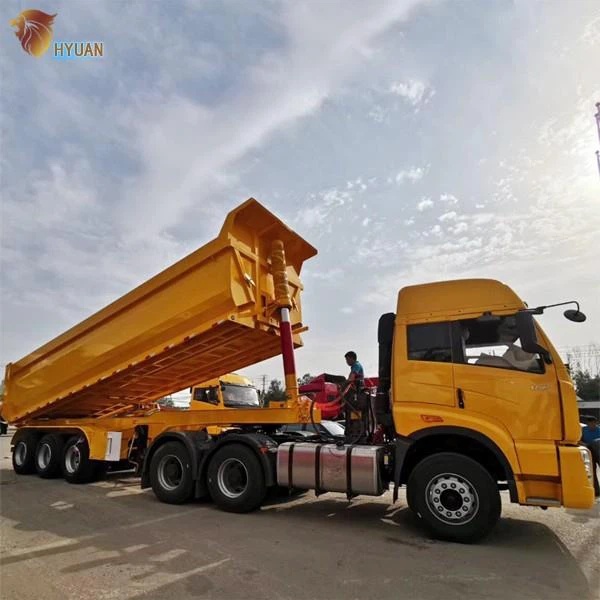

3) Tipping mechanism: Mallery type rear dumping, front tipping rear dumping, side dumping mechanisms available for customer order.

4) Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.

5) Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.

Product qualification

The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.

Deliver,shipping and serving

There are optional transportation manners including RORO ship, bulk cargo ship, 40' HQ to meet your requirements.
Shipping Tipper trailers By Flat Rack or Shipping By 40HQ Container to reduce cost.
