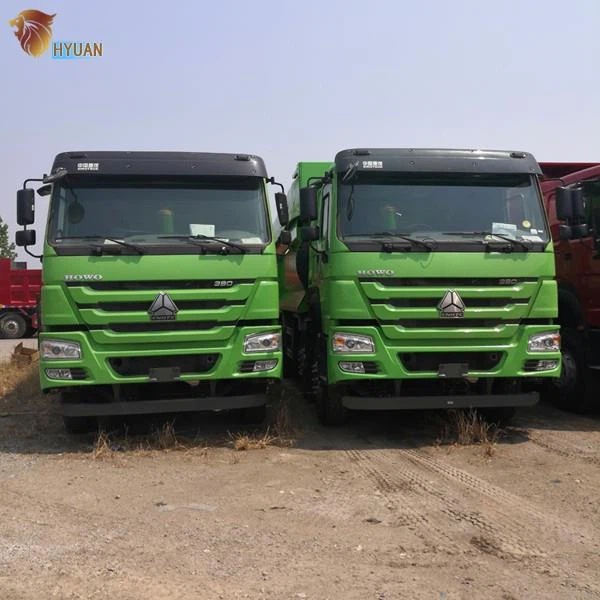

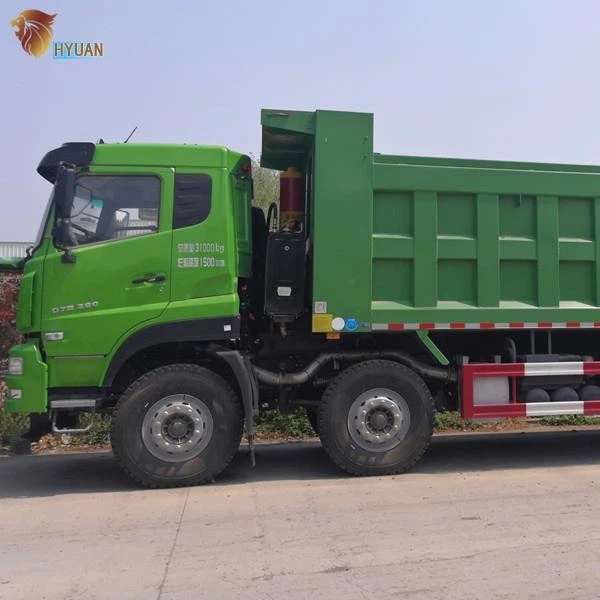

8X4 Howo Dump Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
A standard dump truck is a truck chassis with a dump body mounted to the frame. The bed is raised by a hydraulic ram mounted under the front of the dumper body between the frames, and the back of the bed is hinged at the back to the truck. The tailgate can be configured to swing on hinges or it can be configured in the "High Lift Tailgate" format wherein pneumatic rams lift the gate open and up above the dump body
Product specification
|
Main parameter |
Cab type |
flat proof, single row with sleeper, air conditioning |
|
Overall dimension(L×W×H)(mm) |
11145x2496x3450 |
|
|
Axle number |
4 |
|
|
Drive type |
8*4 |
|
|
Steering type |
LHD or RHD with hydraulic power steering |
|
|
Max. Drive Speed (km/h) |
80 |
|
|
Curb weight (kg) |
15500 |
|
|
Chassis parameter |
Chassis brand |
Sinotruk |
|
Transmission |
Manual, 12 speed forward and 2 reverse |
|
|
Brakes |
air brake, breathe brake |
|
|
Tire |
12.00R20 with 1 Spare tire |
|
|
Engine parameter |
Brand |
Sinotruk |
|
Model |
D10.38-50 |
|
|
Fuel type |
Diesel |
|
|
Horse Power |
276kw/380HP |
|
|
Displacement(ml) |
9726 |
|
|
Emission Standard |
Euro 5/4/3 |
|
|
Superstructure Parameter |
Body material |
High quality structural steel Q235 |
|
Body dimension(L*W*H)(mm) |
8200×2300×970 |
|
|
Side thickness(mm) |
4mm with swastika grid side panels |
|
|
Bottom thickness(mm) |
6mm |
|
|
Lifting type |
middle cylinder lifting |
|
|
Dump method |
Rear dump |
Product feature and application
Dumper truck is mainly composed of a chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device, and is used for transporting coal, stones, earth slabs, asphalt, and the like. Because the loading compartment can automatically dump a certain angle of unloading, greatly saving unloading time and labor, shortening the transportation cycle, improving production efficiency and reducing transportation costs, it is a common transportation truck. Among them, the hydraulic cylinder is a power component lifted by the dump truck, and a high-quality hydraulic cylinder is selected.

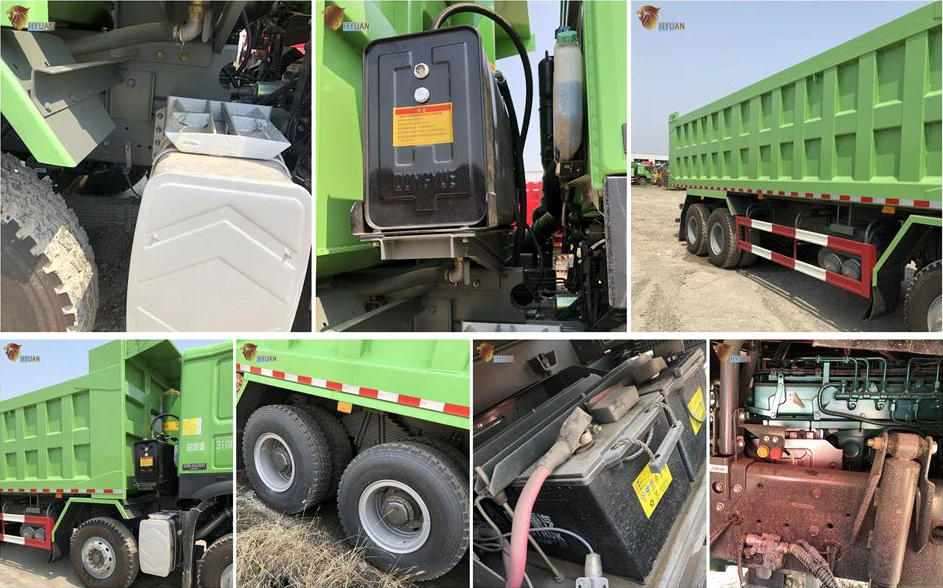

Production details
The driving methods of the End dump truck are mainly 4x4, 6x4, 8x4. The driving modes are left hand driving and right hand driving. According to the goods transported by the customer, we can provide the most suitable Rear dump truck advice for the customer.
The height of the plane on the chassis frame is from the ground. Generally, the height of the plane on the 6x4 chassis frame is 1050-1200. The larger the value, the higher the center of gravity of the end dump truck, and the easier it is to cause the rollover.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
1) Packaging: nude or waxing.
2) Shipping: in the 20GP/40GP container or Ro-Ro ship or bulk ship according to the customer’ order or requirement.
Our service
Professional Production Team:
Experienced Sales,Provide Clients High Assembling for Fast Quality Delivery
Customize:
Professional Design Team Provide Suitable Programs and Customized,Support Local Adaptive Product
7*24H Service
7*24H Service Provide Professional Fast Response
Parts Support:
Abundant Parts Supply Provide Lasting Support for Worldwide Clients
FAQ
Q1: What kind of payment do you accept?
A: We accept T/T and L/C; Others payment is negotiable.
Q2: Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Q3: What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 7 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
Q4: Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
