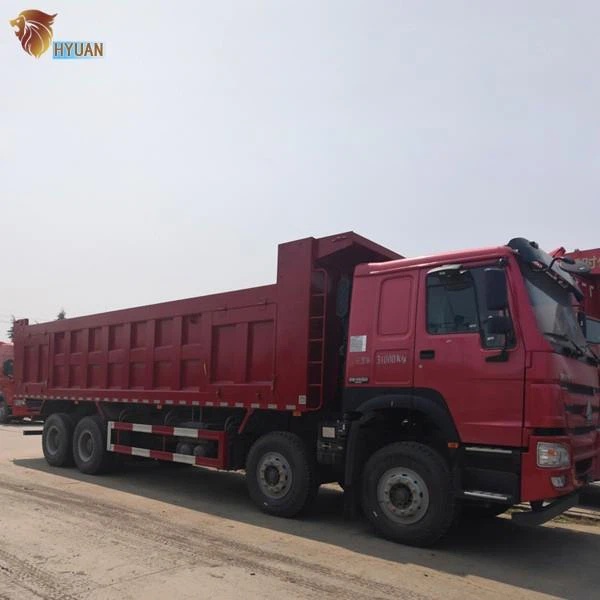

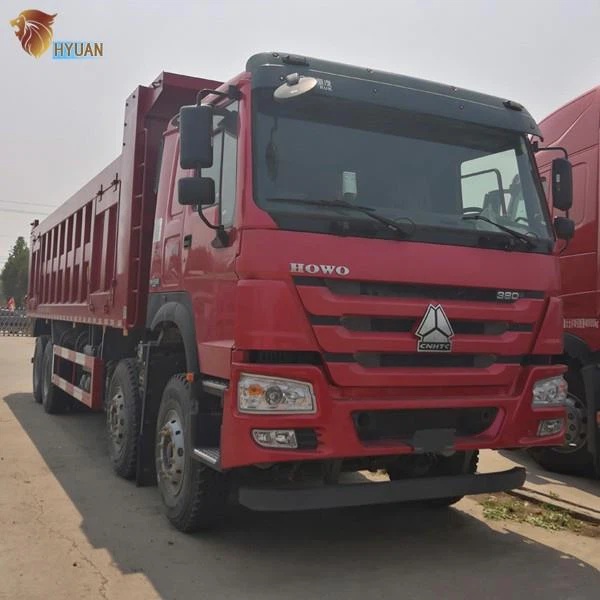

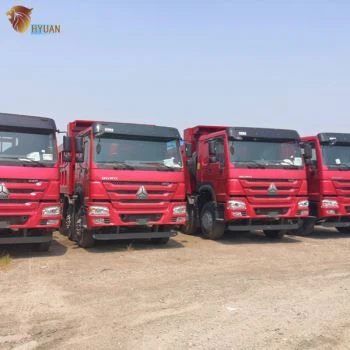

Sinotruk Howo Dump Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Dump truck is a vehicle that unloads goods by itself through hydraulic or mechanical lifting. Also known as dumper truck. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and force taking device.
Product specification
|
Cab |
HW76, HOWO long cab, with one sleeper, with air conditioner |
|
Engine |
SINOTRUK brand,WD615.87, 290hp, EUROII emission standard |
|
Transmission |
HW19710, 10 shifts gearbox, Nu clearance: 1900Nm |
|
Driving Axle |
AC16, double driving axle, rated payload of each axle: 16tons |
|
Front Axle |
HF9 , drum brake |
|
Steering |
ZF8118, hydraulic steering with power assistance |
|
Tires |
12.00-20, 11.00-20,12.00R20,11.00R20 radial/steel tyre |
|
Wheel base (mm) |
3625+1350 |
|
Front/rear overhang (mm) |
1500/1670;1500/1739 |
|
Approach/Departure angle (°) |
19/27,19/26 |
|
Maximum driving speed (km/h) |
80 |
|
Steel thickness of Cargo body (mm) |
Floor: 8 Side: 4 |
|
Lift of Carriage |
ventral lifting |
|
Loading capacity (kg) |
20000 |
|
Cargo body size (mm) |
5400,5600×2300×1195 (optional) |
|
Overall sizes (mm) |
8145,8214×2496×3450 (optional) |

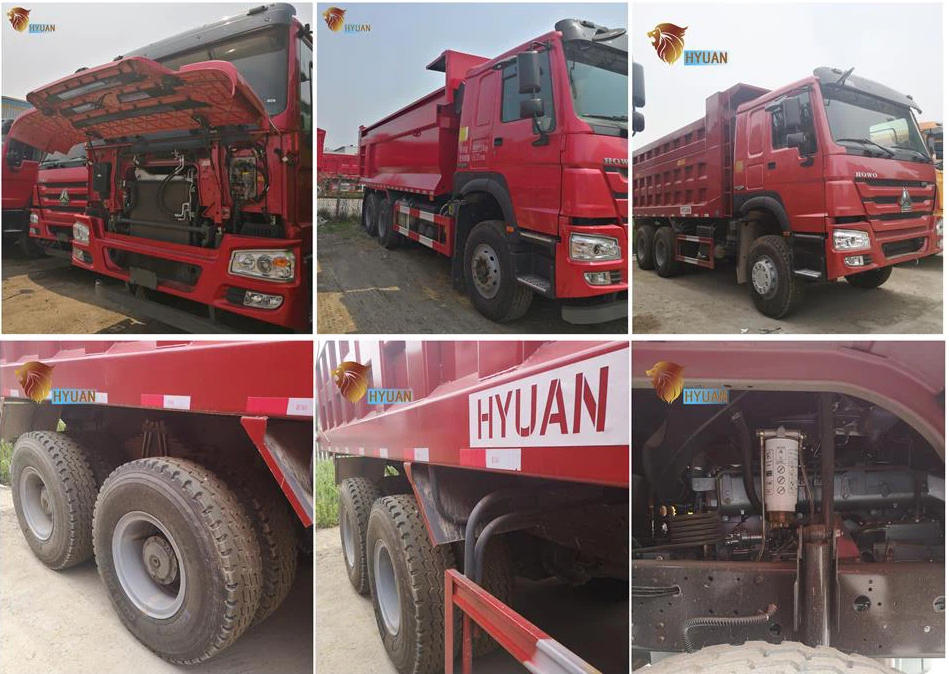

Production details
1) HW76 cab, (single sleeping, with air-condition)
2) All-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds.
3) Laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/ cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Packing: Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO
FAQ
1. Q: How is the quality of the machine exported from your country?
A: All of the machines we export are in excellent condition and ready to work.
2. Q: What's your MOQ?
A: One unit trailer or truck. We suggest two trailers one time to save the freight
3. Q: What is your payment?
A: Usually T/T(30% deposit+70% balance),other payment terms can be negotiate
4. Q: What is your delivery time?
A: 3-10 working days after receiving deposit.
5. Q: What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply
