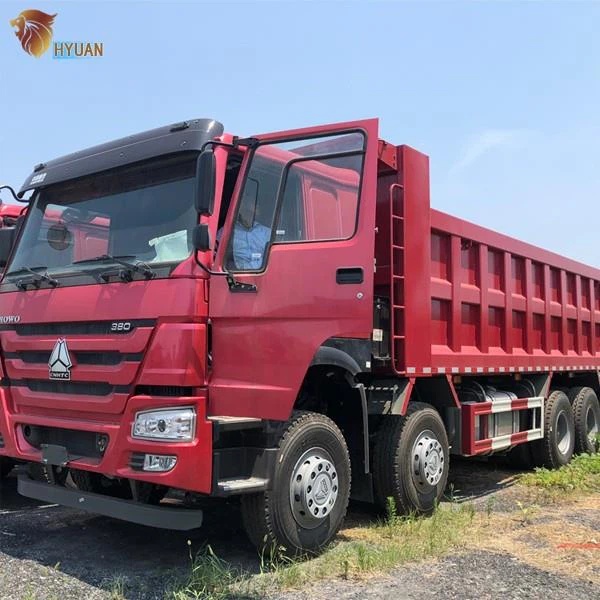

380HP Howo Dump Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
A dump truck is a truck used to convey loose materials like sands, pebbles, soils, building materials, coals, ores, crops, farm products, etc. A dump truck is usually installed with a hydraulic motivated open-box bed hinged at the rear. The front of this open-box can be lift up so that the materials are discharged on the ground behind the truck.
Product specification
|
Truck Brand |
SINOTRUK –HOWO |
|
|
Driving Style |
Left Hand Driving |
|
|
Color |
According to your requirement |
|
|
Dimension(Lx W x H)(unloaded)(mm) |
8545x2496x3580mm |
|
|
Cargo body size (L*W*H, mm) (mm) |
5600x2300x1500mm |
|
|
Cargo thickness(mm) |
Bottom:10mm, Side:8mm |
|
|
Lift type of Carriage |
middle lifting |
|
|
Approaching angle/Departure angle(°) |
19/26 |
|
|
Overhang(front/rear) (mm) |
1500/1739 |
|
|
Wheel base (mm) |
3825+1350 |
|
|
Max speed(km/h) |
75 |
|
|
Maximum gradeability (%) |
40 |
|
|
Minimum ground clearance(mm) |
314 |
|
|
Minimum turning circle (m) |
20 |
|
|
Curb weight(kg) |
12290 |
|
|
Loading Weight(kg) |
25000 |
|
|
Fuel tanker capacity(L) |
300 |
|
|
Fuel consumption(L/km) |
23L/100 km |
|
|
Clutch |
Single-plate dry clutch Φ430mm |
|
|
Engine |
Fuel type |
Diesel |
|
Horse Power, max (kw/rpm) |
371hp |
|
|
Emission |
EURO II |
|
|
Engine Model (Steyr technology, made in China) |
Model |
WD615.47,water-cooled,four strokes, 6 cylinders in line with water cooling, directly injection |
|
Bore |
126mm |
|
|
Stroke |
130mm |
|
|
Compression ratio |
29.8hp/l |
|
|
Specific fuel consumption |
195g/kwh |
|
|
Transmission |
Model |
HW19710, 10 forwards and 2 reverse |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Steering system |
Model |
ZF8118 hydraulic steering with power assistance |
|
Front axle |
HF9,Steering with double T-cross section beam |
|
|
Rear axle |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels |
|
|
Tyre |
1200R20 10+1spare |
|
|
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
|
|
Starter |
7.5Kw/24V |
|
|
Cab |
HOWO76 cab, single sleeper with air conditioner |
|
Product feature and application
According to clients' requirements, we can customize different loading capacity and volume.
The popular dump truck models include: sinotruck HOWO 371hp 6X4 10 wheel 16 cubic meters dump truck, sino truck 375hp 10 wheeler 30 tons 20 cubic meters dump truck, SINOTRUK howo 380 8X4 12 wheeler 40tons end dump truck and so on.

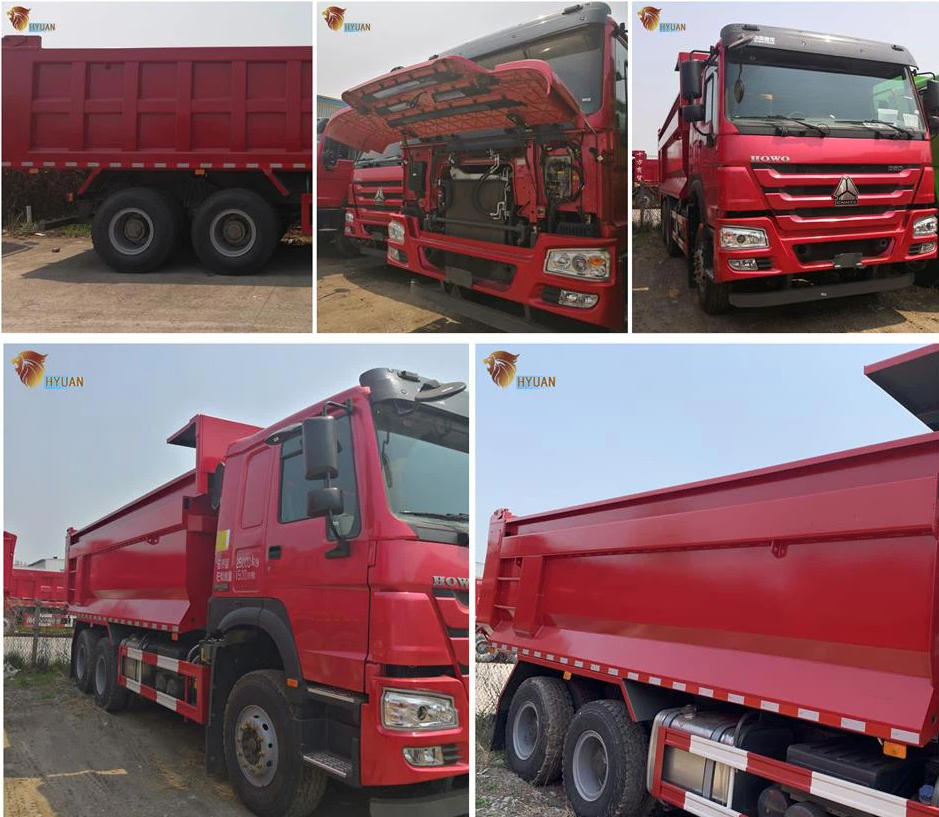

Production details
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Low oil consumption with strong horse power 380hp
3. Large load capacity 30-40ton
4. LHD or RHD are optional
5. Volume of tanker 15-20cbm
6. One year for three key parts (engine ,gear-box, axle)
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
Our service
1. Competitive price
From numerous comparison and feedback from clients, our price is more competitive than manufacturers/ factories.
2. Quick response
Our team is consisted of a group of diligent and enterprising people, working 24/7 to respond clients inquires and question all the time.
3. World class quality
100% quality control is guaranteed during production and before delivery.
4. Fast delivery
We have a variety of resources, locally and nation widely, to receive trailer in timely manner. In 70% circumstance, we can have an 15 days delivery of regular trailer for our clients.
FAQ
1. How do you control quality?
We have a standard procedure to inspect the materials and products at every stage in the manufacturing process.
2. Do you inspect all your products before delivery?
Yes, we inspect the appearance and functions of the trailers before delivery.
3. Can you satisfy my special requirements?
Definitely! With strong R&D capability, our engineers can get what you need.
4. Do you have after-sales service?
Yes, we have a one-year warrant for every product and dedicated staff at your service.
5. What is your terms of payment?
30% T/T as deposit, and 70% before shipment. We'll show you the photos of the products and packages before you pay the balance.
