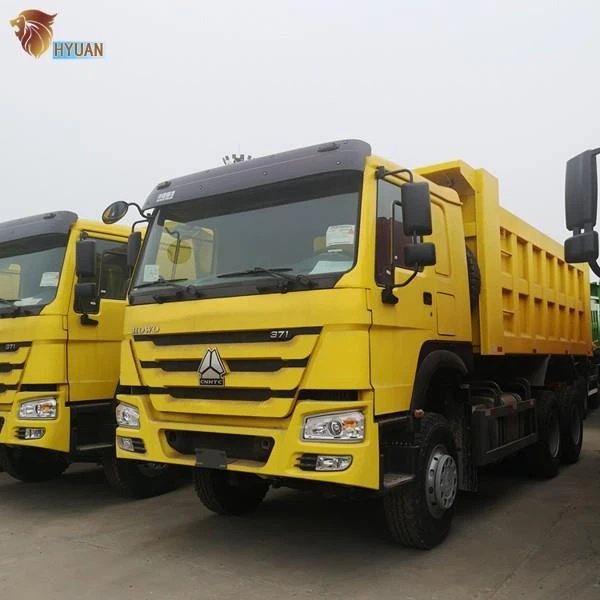

371HP Howo Dump Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
It is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, with its fame forged in construction and mining industries with adverse operating environments, available for the short-range earthwork transportation tasks for mines and construction projects.
Product specification
|
Truck Brand |
SINOTRUK –HOWO |
|
|
Driving Style |
Left Hand Driving |
|
|
Color |
According to your requirement |
|
|
Dimension(Lx W x H)(unloaded)(mm) |
8545x2496x3580mm |
|
|
Cargo body size (L*W*H, mm) (mm) |
5600x2300x1500mm |
|
|
Cargo thickness(mm) |
Bottom:10mm, Side:8mm |
|
|
Lift type of Carriage |
middle lifting |
|
|
Approaching angle/ Departure angle(°) |
19/26 |
|
|
Overhang(front/rear) (mm) |
1500/1739 |
|
|
Wheel base (mm) |
3825+1350 |
|
|
Max speed(km/h) |
75 |
|
|
Maximum gradeability (%) |
40 |
|
|
Minimum ground clearance(mm) |
314 |
|
|
Minimum turning circle (m) |
20 |
|
|
Curb weight(kg) |
12290 |
|
|
Loading Weight(kg) |
25000 |
|
|
Fuel tanker capacity(L) |
300 |
|
|
Fuel consumption(L/km) |
23L/100 km |
|
|
Clutch |
Single-plate dry clutch Φ430mm |
|
|
Engine |
Fuel type |
Diesel |
|
Horse Power, max (kw/rpm) |
371hp |
|
|
Emission |
EURO II |
|
|
Engine Model (Steyr technology, made in China) |
Model |
WD615.47,water-cooled,four strokes, 6 cylinders in line with water cooling, directly injection |
|
Bore |
126mm |
|
|
Stroke |
130mm |
|
|
Compression ratio |
29.8hp/l |
|
|
Specific fuel consumption |
195g/kwh |
|
|
Transmission |
Model |
HW19710, 10 forwards and 2 reverse |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Steering system |
Model |
ZF8118 hydraulic steering with power assistance |
|
Front axle |
HF9,Steering with double T-cross section beam |
|
|
Rear axle |
HC16,Pressed axle housing, central double reduction with differential locks between axles and wheels |
|
|
Tyre |
1200R20 10+1spare |
|
|
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
|
|
Starter |
7.5Kw/24V |
|
|
Cab |
HOWO76 cab, single sleeper with air conditioner |
|
Product feature and application
10 Wheel 371HP 20 Cubic Meters Sinotruk HOWO Tipper Dump Truck Dump Truck Price
Quality is our culture and with best price,with us , your business is safe, your money is safe, this is Betty, hoping we can be good friends.
According to clients' requirements, we can customize different loading capacity and volume.
The popular dump truck models include: sinotruck HOWO 336hp 6X4 10 wheel 16 cubic meters dump truck, sino truck 371hp 10 wheeler 30 tons 20 cubic meters dump truck, SINOTRUK howo 8X4 12 wheeler 40tons end dump truck and so on.

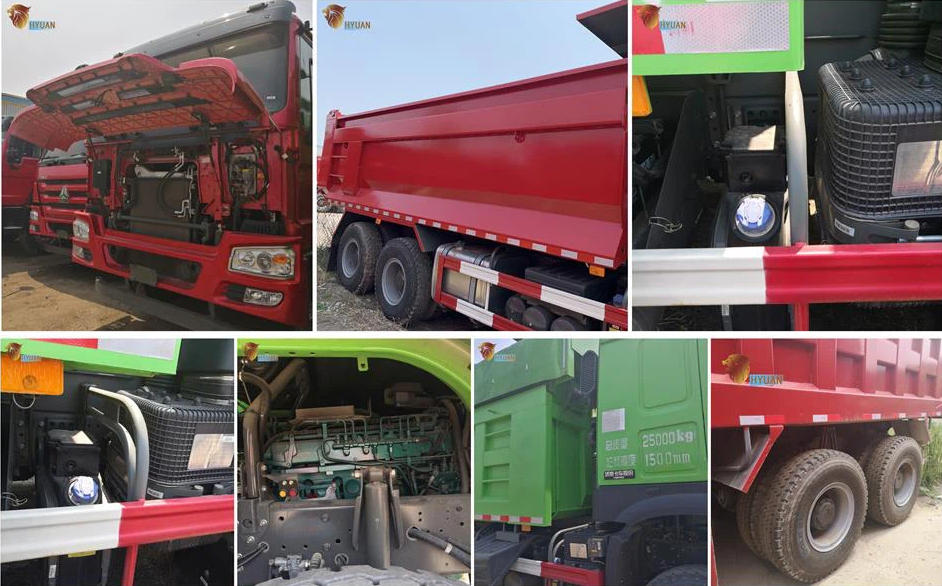

Production details
Cabin: Four point s suspension HOWO Cabin with spring and air shock absorber, VDO panel
Engine: 336HP WD615 STR engine ( from 290hp - 420 hp you can chose )
Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner coolin
Front axle: HF9 STEYR technology front steering axle
Rear axle: HC 16ton STEYR technology double reduction hub reductor driving axle
Steering: ZF8098, driver sit at the left hand side
Loading capacity: More than 30ton
Designed for tough road condition especially for African countries
Punctual delivery time
Excellent spare parts supply for after-sales service
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
1) Packaging: nude or waxing.
2) Shipping: in the 20GP/40GP container or Ro-Ro ship or bulk ship according to the customer’ order or requirement.
Our service
1. Variety of products, including all kinds of light trucks, tractors, heavy duty trucks, trailers and special vehicles.
2. High quality and competitive price, technology absorbed from the top companies in the world
3. Quick response to your inquiry, we have special sales team for different markets in Asia, Africa, Europe, America, ETC
4. Flexible payment terms,we can accept T/T,L/C
5. Rich experience and strong production capacity, 60 years experience and 50000 units annual output.
FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.
4. Delivery time: Within20 workdays after receiving 30% deposit of T/T.
