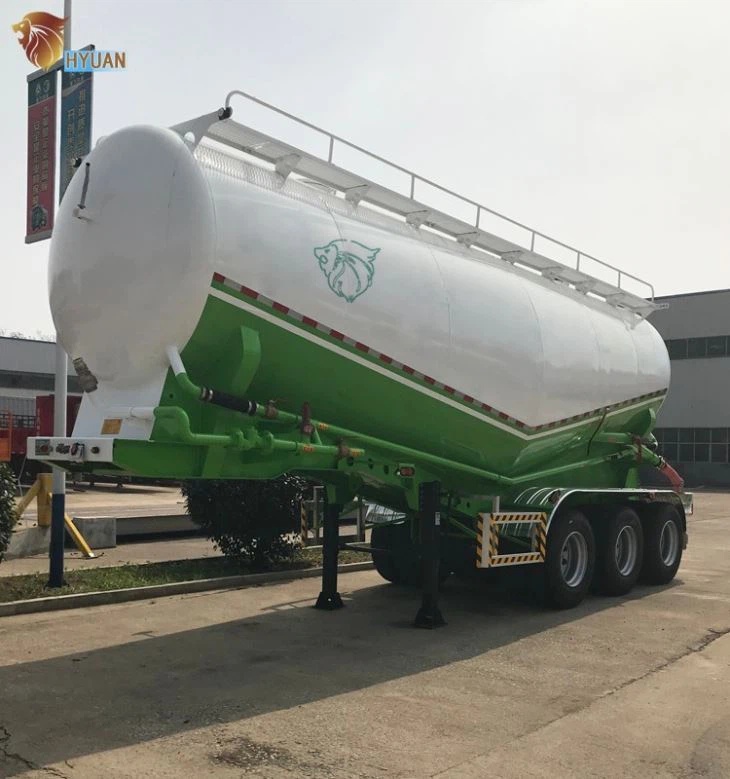

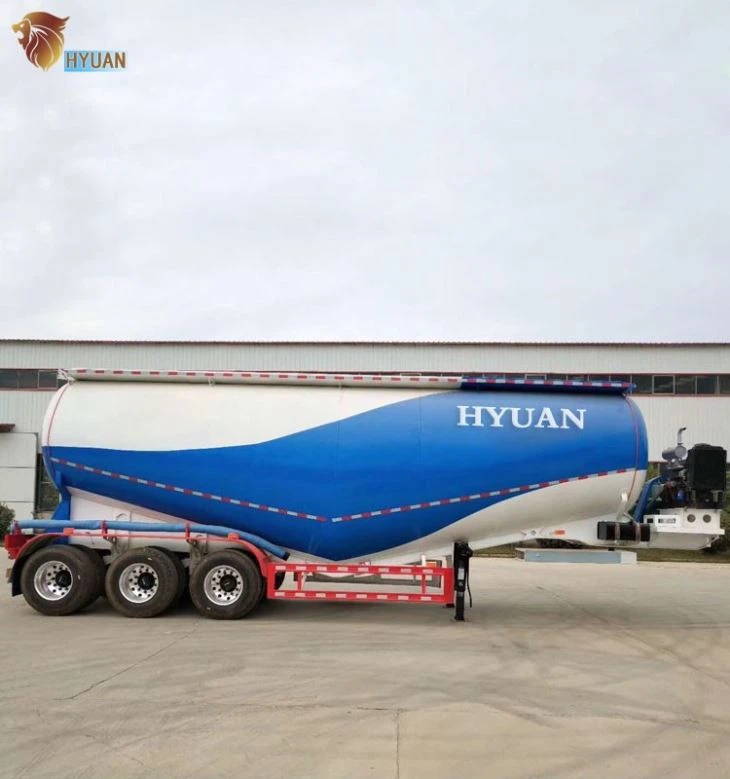

Cement Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Descriptior
Cement Tank TrailerCement Tank TrailerCement Tank TrailerCement Tank Trailer
|
Main Dimensions |
|
|
Tank Body |
|
|
Shape |
Optional ( One Silo with V type or Two ,Three Silos Design) |
|
Dimension |
12000mm*2490mm*3990mm ( Exact size depends on the final design) |
|
Tare weight |
About 7500KGS-15000KGS |
|
Total Volume(m3) |
50m³ |
|
Tanker Body Material |
5mm or 6mm/ Q235 carbon steel |
|
End Plate |
5mm or 6mm /Q235 carbon steel |
|
Diesel Engine |
WEICHAI ,Tianhe 4100/4102 or other brand |
|
Compressor |
BOHAI 10m³/12 m³or other brand |
|
Manhole Cover |
Carbon steel or Aluminum 500mm |
|
Discharging Valve |
Diameter is 3 or 4 inch (Material: Aluminum ) |
|
Discharging Pipe |
3 or 4 inch rubber hose, 1pcs, 6m/each |
|
Cat Walk |
With (Common model or special design) |
|
Chassis |
|
|
Main Beams |
Welding Design ,Q345 carbon steel |
|
Axle |
3 axles,13T, BPW/FUWA/HUAJING brand |
|
Landing Gear |
JOST (D200T)or CHINA BRAND 28T |
|
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
|
Suspension |
Mechanical suspension/Germany or America type /Air Suspension |
|
Leaf Spring |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tanks. |
|
Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
|
Tire |
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
|
ABS |
Optional |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Accessories |
One standard tool box |
|
Shipping Terms |
By Bulk Cargo ,RORO |
