2axles Carbon Steel Diesel Transport Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
HYUAN Fuel Tanker Trailer rely on our 20 years experience, professional design, quality parts fitting, provide higher performance, durable, stable. Help clients get more, cost less.
Product specification
|
Trailer Model |
Round Shape or Ellipse |
|
Outside Dimensions |
11000mm-13000mmX2490mmX3950mm/3800mm-3900mm |
|
Tare weight |
About 8-12.8T |
|
Total Volume |
25m³-60m³ |
|
Material |
1. Q235B/Q345B carbon steel 2. 5XCT4aluminum5454 3. 304 stainless steel |
|
Tanker Body Material |
1. 6mm/5mm Q235B/Q345B carbon steel 2. 7mm/6mm 5XCT4 aluminum 5454 3. 5mm/4mm 304 stainless steel |
|
Axles |
13T/16T, FUWA/BPW/HuaJing brand |
|
Axle Number |
2/3/4/ Axle or multi axle |
|
Main Beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel. |
|
Tire |
12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
|
King Pin |
JOST brand 2.0 or 3.5 inch bolts type or Welding type |
|
Support legs |
JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) |
|
Rear ladder |
Dismountable or foldaway |
|
Wheelbase |
8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm |
|
Spring leaf |
8/10/12/16 pieces |
|
Manhole Cover |
2/3/4/5/6 piece Carbon steel API manhole cover ,500mm European standards |
|
Brake Chamber |
6 double brake chamber |
|
Electrical System |
24V, 7core socket, lights according to European standards |
|
Accessory |
One tooling boxes ,Two spare tire carrier, Two fire extinguisher |
|
Other tools |
A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) |
|
Discharge mouth |
diameter is 280mm |
|
Receptacle |
7ways (7wire harness) |
Product feature and application
Rust Resist Tank Design, good for fuel delivery, such as diesel,gasoline and so on
Tank Material: Carbon steel,Aluminum 5083 5454
All Aluminum Pipe line with the aluminum valve.
Optional for Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding

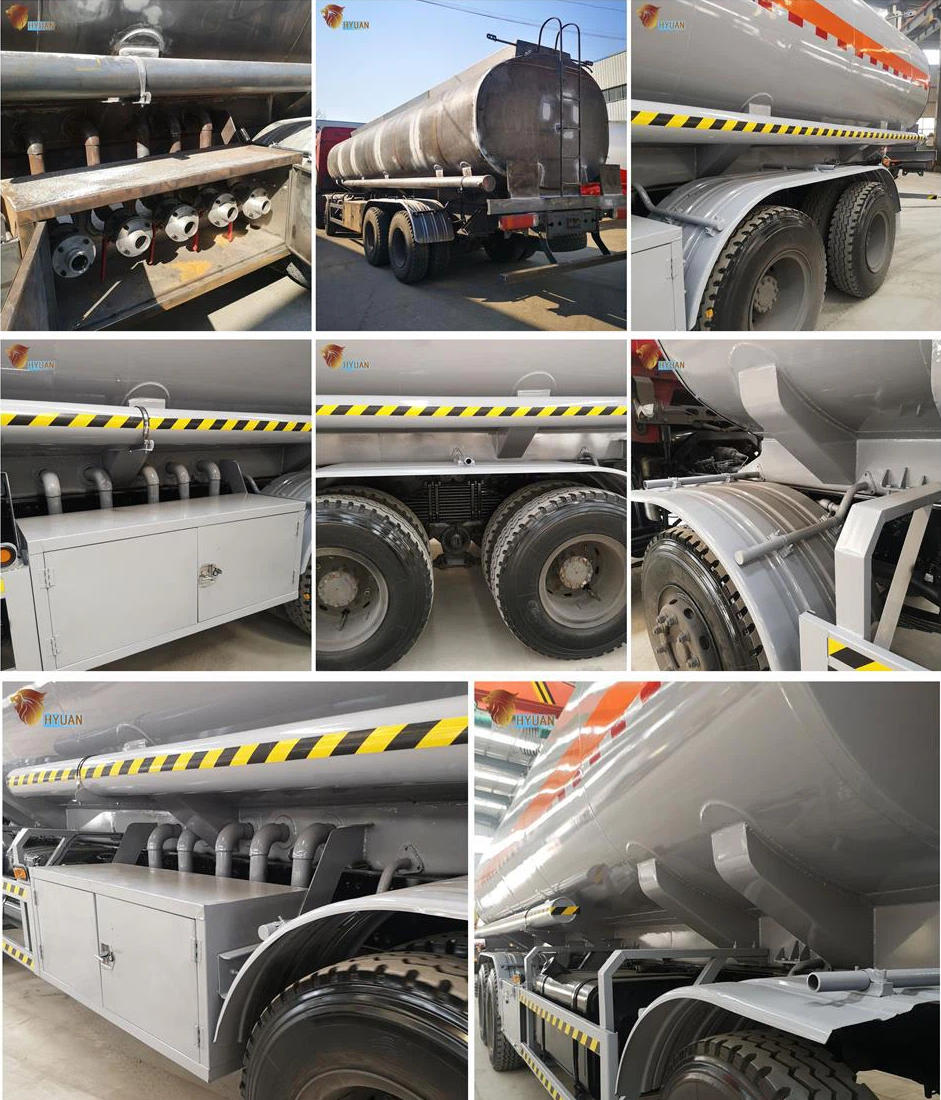

Production details
1) With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2) The tank body is automatically welded by an advanced large-scale special welding machine.
3) The TITAN tanker body is longitudinally welded.Ensure the safety of the tanker and increase the service life.
4) Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
5) The waved board reduces the impact of the liquid on the tanker.
6) Advanced paint system and polyurethane paint.Appearance is beautiful, use time is above 5 years.
7) We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service.
