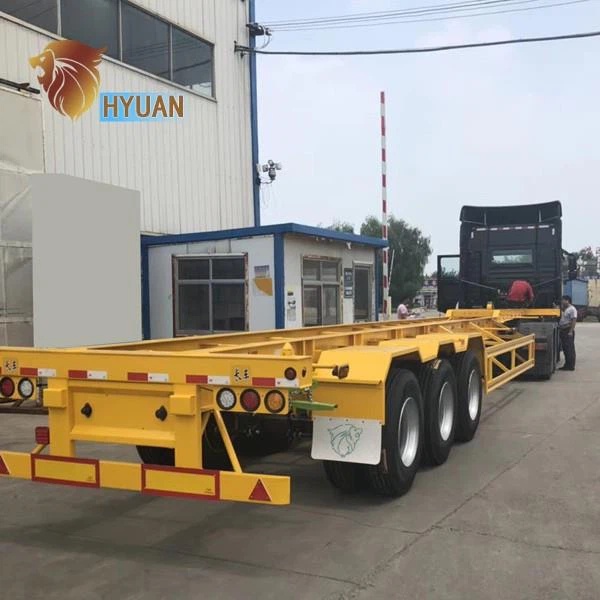

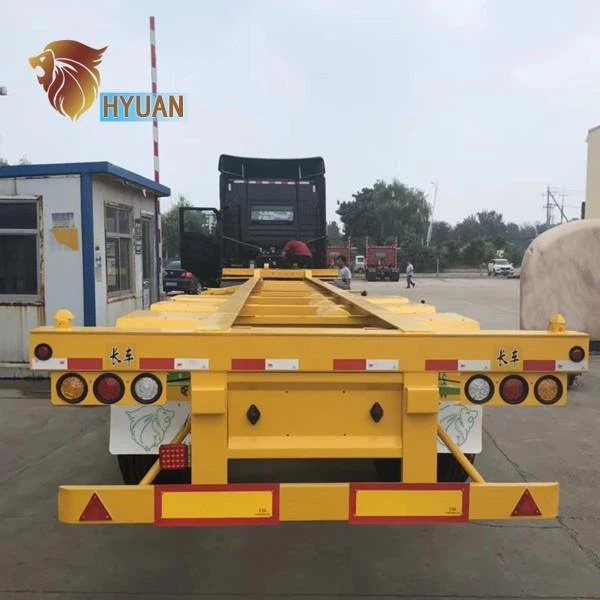

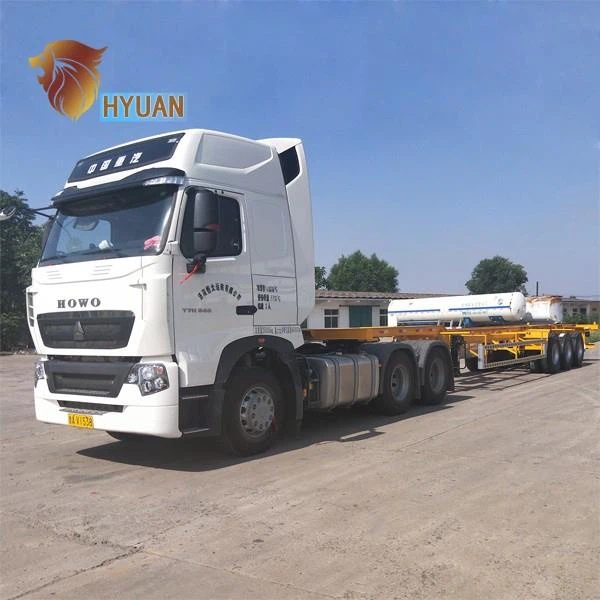

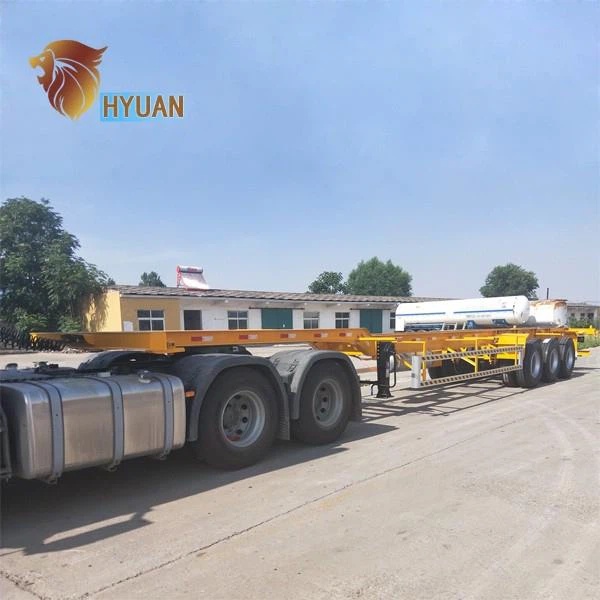

3axles Container Transport Semi Trailer

    Leading sales products: Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Contact us
Product Details

Product Introduction

Container trailer feature: Dedicated to using for transporting kinds of containers, for example 20ft and 40ft container. Can use for long terms repeatedly and with enough strength.

Product specification

Specifications

Overall Dimension (Lx W x H) (mm)

12500*2500*1550(Customer optional)

Tare Weight(KG)

6550

Loading Weight(KG)

40000

Wheel Base

2300mm+1310mm+1310mm

Semi Trailer Chassis

The material of Main beam

The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm.

Axle Brand

13TON Fuwa axles brand

Axle Number

3

Suspension system

Common Mechanical suspension

Leaf Spring

10/10/10 leaf spring suspension

Landing Gear

Chinese standard 28ton

Tire Type and quantity

12R22.5 tyres, triangle brand

Container Twist Locker

12pcs container lock

Spare Wheel Bracket

1 pieces

Tool Box

1 Standard

Electrical & Paint

Brake system

Dual Line braking system

Brake air chamber

Two double and two single chamber

Electrical system

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.

Side Guard

According to customers requirement

Painting

Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request

Packing&Shipping

Packing

NUDE, Polish with wax before shipping

Pattern and Logo

According to customers request

Shipping Terms

Shipped by bulk cargo ship, Roll-roll ship or in container





Product feature and application

(1) Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect;

(2) Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle;

(3) Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable;

(4) Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards;

(5) Products fully comply with relevant national standard GB1589, GB/T6420, at the same time to meet the individual needs of customers.

Production details

More charactors of strong low bed trailer you will concern

1. High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

2. The welding machines and most skilled workers make welding of low bed trailer more frequent and strong.

3. Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.

4. We have standard low bed semi trailer which is with 3 axles and 60 tons loading capacity. Meanwhile, we can have your trailer customised with options.

Product qualification

The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.

Deliver,shipping and serving

NUDE AND WAX

FASTENED IN FLAT RACK CONTAINER/BULK RO-RO SHIP

COST SAVING WHILE SAFETY FIRST

Our services

(1) OEM Manufacturing welcome: Product, Package.

(2) Sample order
(3) We will reply you for your inquiry in 24 hours.

(4) After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

FAQ

Q1. Are you a Manufacturer or Trading company?

A: We are trailer manufacturer and we have our own factory in Shandong province, China. You are welcomed to visit our factory to check our various trailers.

Q2. Whats your MOQ?

One unit trailer.


Q3. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. Well show you the photos of the products and packages before you pay the balance.

Q4. What is your terms of delivery?

A: EXW, FOB, CFR, CIF.


Q5. What kind of payment do you accept?

A: We could accept T/T and L/C normally. For other, please contact me for more information.


Q6. Whats your after-sale service?

A: We have excellent after-sale service system and 24h liftetime service.
