Skeleton Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Details
Spec. Parameter

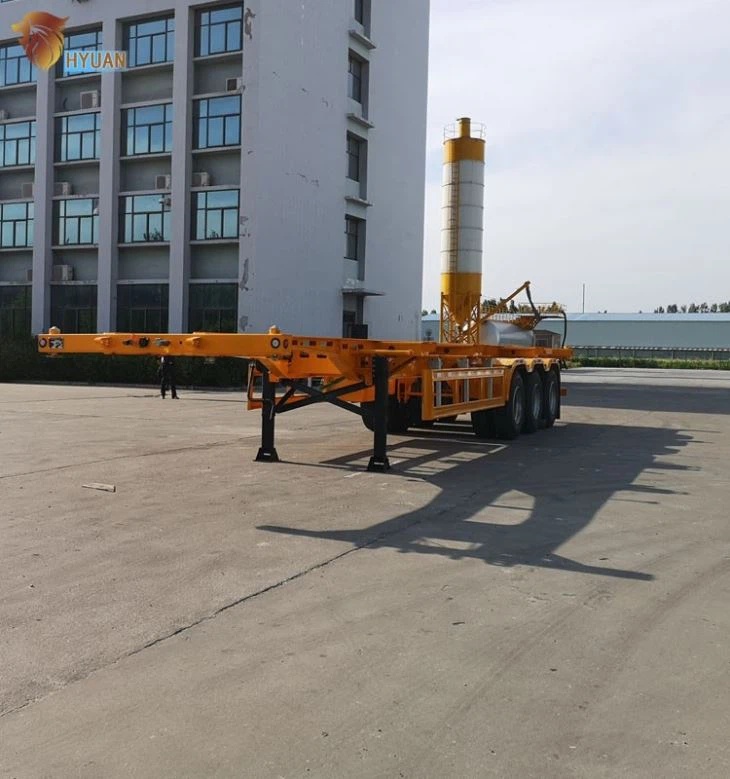

Skeleton Semi Trailer
| 20 Feet Container Trailer | 40 Feet Container Trailer | 45 Feet Container Trailer |
| 2 Axles | 3 Axles/4 Axles | 3 Axles/4 Axles |
| Loading Capacity 20-50 Tons | Loading Capacity 30-80 Tons | Loading Capacity 30-80 Tons |
| Gooseneck Type:Available | Gooseneck Type:Available | Gooseneck Type:Available |
| Tandem Type | Tandem Type | Tandem Type:Available |
| CKD/SKD Cooperation:Available | CKD/SKD Cooperation:Available | CKD/SKD Cooperation:Available |
| OEM/ODM:Available | OEM/ODM:Available | OEM/ODM:Available |
| 20 Feet Container Trailer | 40 Feet Container Trailer | 45 Feet Container Trailer |
| Vehicle Painting | Vehicle Painting | Vehicle Painting |
| Electrophoresis painting | Electrophoresis painting | Electrophoresis painting |
| Main Beam | Main Beam | Main Beam |
| Material:Q345/T700 | Material:Q345/T700 | Material:T700 |
| Upper Plate Thick:12mm | Upper Plate Thick:14mm | Upper Plate Thick:10mm |
| Middle Plate Thick:6mm | Middle Plate Thick:6mm | Middle Plate Thick:5mm |
| Lower Plate Thick:12mm | Lower Plate Thick:16mm | Lower Plate Thick:10mm |
| Beam Height:500mm | Height Height:500mm | Height Height:420mm |
| Trailer Size | Trailer Size | Trailer Size |
| L 7000mm | L 12400mm | L 13950mm |
| W 2480mm | W 2480mm | W 2500mm |
| H 1560mm | H 1580mm | H 1600mm |
| Axles | Axles | Axles |
| 2 Axles 13T/16T CIMC/FUWA/BPW | 3/4Axles 13T/16T CIMC/FUWA/BPW | 3/4 Axles 13T/16T CIMC/FUWA/BPW |

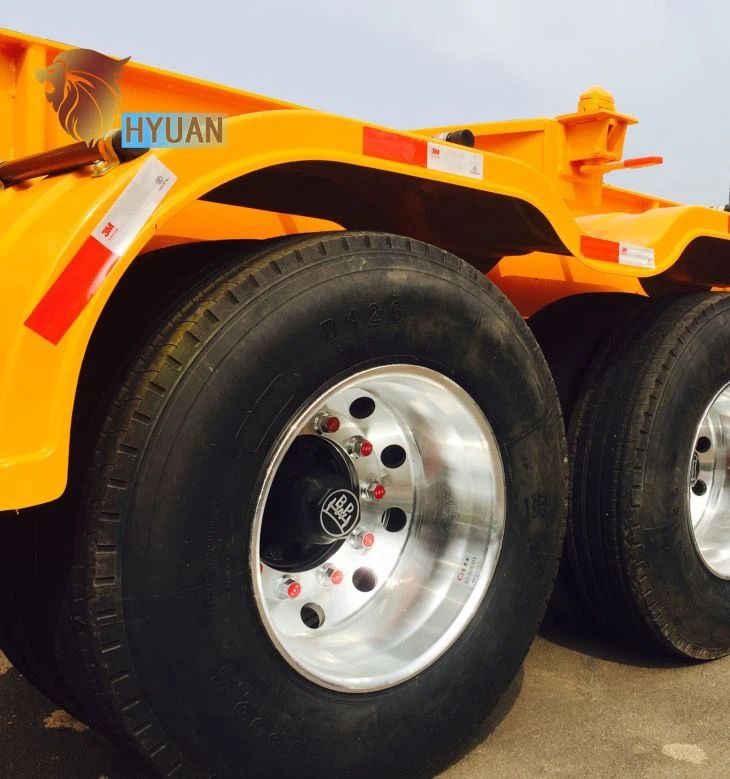

| Tire | Tire | Tire |
| 12R22.5 (8/12 Pieces) | 12R22.5 (8/12 Pieces) | 12R22.5 (8/12 Pieces) |
| Rim | Rim | Rim |
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (12/16 Pieces) Steel/Aluminum | 9.00*22.5 (12/16 Pieces) Steel/Aluminum |
| Leaf Spring | Leaf Spring | Leaf Spring |
| 90mm*13mm/90mm*16mm 10 Pcs | 90mm*13mm/90mm*16mm 10 Pcs | 90mm*13mm/90mm*16mm 10 Pcs |
| Kin Pin | Kin Pin | Kin Pin |
| 2″/3.5″JOST | 2″/3.5″JOST | 2″/3.5″JOST |
| Landing Gear | Landing Gear | Landing Gear |
| 28 Tons CIMC/JOST Two Speed | 28 Tons CIMC/JOST Two Speed | 28 Tons CIMC/JOST Two Speed |
| Twist Lock | Twist Lock | Twist Lock |
| 4 Sets | 12 Sets |
12 Sets |
