Container Skeleton Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.

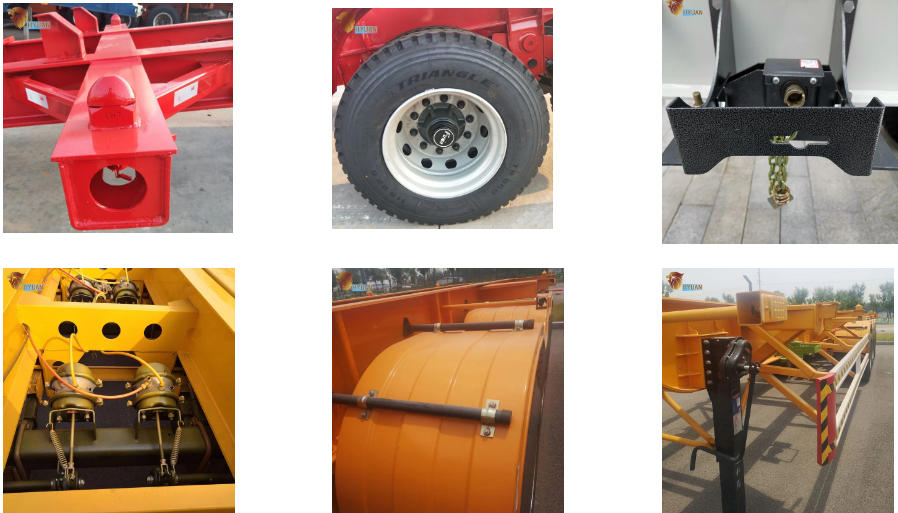

Product Details
The Container Skeleton Semi Trailer is specially designed to carry various cargo containers.You can choose to use you load trailer transport one 20 inch ,40inch or 45 inch container or two 20 inch containers at one time.According your needs,wo can choose BPW axle or FUWA axle,air suspension or leaf spring suspension.We adopt 6 big double air chamber. we can choose 4,8,or 12 container twist locks.
|
Specifications
|
|
|
Tare Weight
|
About 6.0T
|
|
Dimension
|
12400mm*2500mm*1575mm（Size can be choose freely)
|
|
Loading Capacity
|
30T-60T
|
|
Axle
|
13T/16T,FUWA/BPM Brand
|
|
Rim
|
9.00-22.5/8.00-20/8.5-20
|
|
Tire
|
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional
|
|
Suspension
|
Mechanical suspension(Germany Type or America Type)or Air suspension
|
|
Spring leaf
|
90(W)mm*13(Thickness)mm*10 Layer(especial for exporting market)
|
|
King pin
|
JOST brand 2.0 or 3.5 inch
|
|

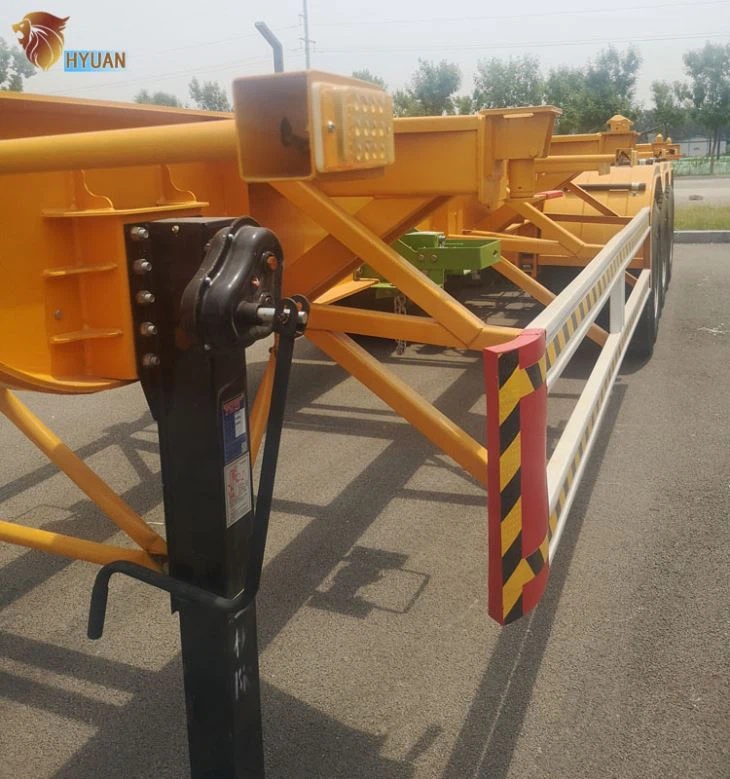

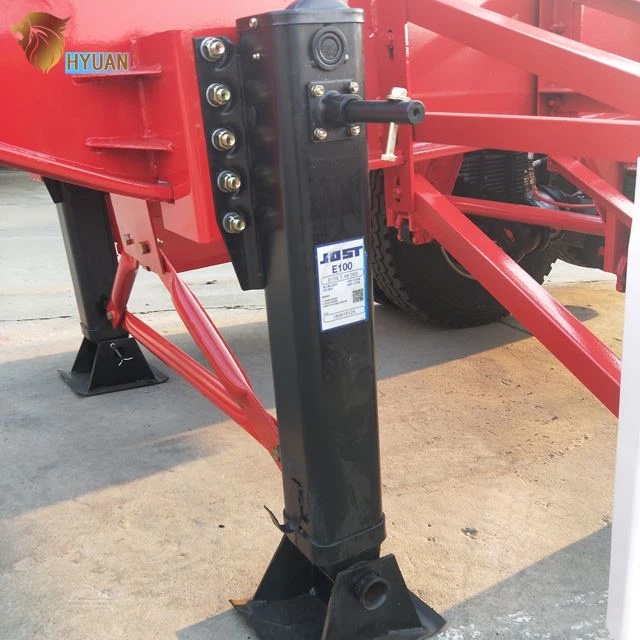

Support leg
|
JOST brand
|
|

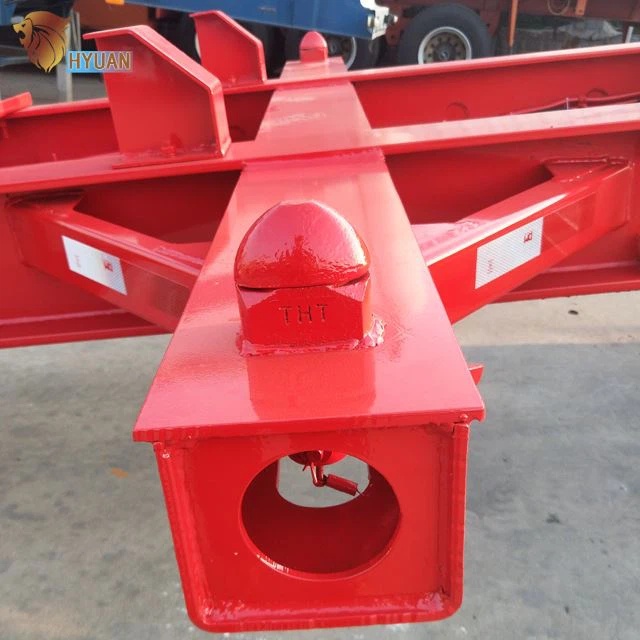

Main beam
|
Height:500mm,upper plate is 14mm,middle plate is 8mm,
Down plate is 16mm;Material is Q345B Steel. |
|
Side beam
|
16mm channel steel(Material is Q235steel).
|
|
Bottom platform
|
3mm diamond steel plate
|
|
Brake chamber
|
WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber;Two pieces of 45L air tanks
|
|
ABS
|
Optional
|
|
Twist Locks
|
Four,Eight or Twelve pieces(Lifting type or Twist screw type)
|
|
Valve
|
WABCO valve
|
|
Light
|
LED light (especial for exporting market)
|
|
Voltage
|
24V
|
|
Receptacle
|
7 ways(7 wire harness)
|
|
Tool box
|
One piece,1m×0.5m×0.5m(Size can be choose freely)(equipped with 1 unitTire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,2
coats of final paint |
|
Shipping Terms:
|
By bulk cargo carrier,RORO or 40HQ container
|
