3 Axles Gooseneck Flatbed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.

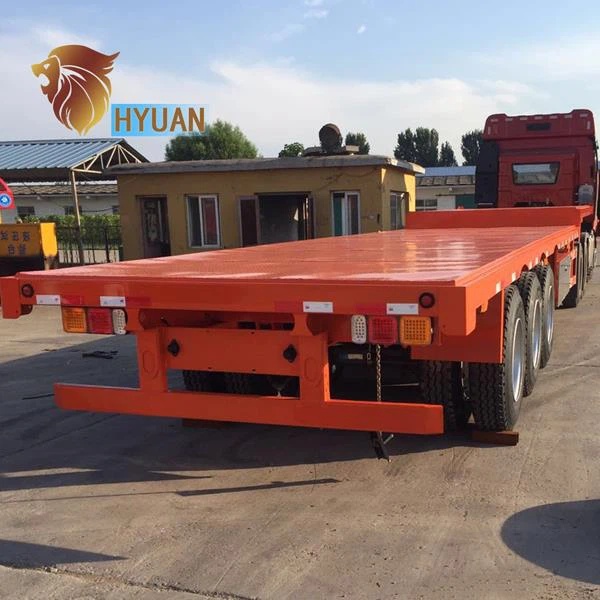

Product Introduction
Flatbed semi trailer is main used for transportation of 20ft container, 40ft container or some other cargos.
Product specification
|
Function |
Carry 40ft or 2*20ft container or other stuff |
|
Overall Dimension (Lx W x H) (mm) |
12500*2500*1550 |
|
Loading Weight( KG) |
40000 |
|
Axle Brand |
13TON Axle FUWA Brand |
|
Axle Number |
Three |
|
Wheelbase(mm) |
7450+1310+1310 |
|
Suspension system |
Mechanical Leaf Spring Suspension |
|
Leaf spring |
90(W)mm*13(Thick)mm*10 Layer |
|
The material of Main beam |
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm, middle plate is 8 mm. |
|
Side beam |
Q235 16# channel steel |
|
Platform plate |
3mm Diamond plate |
|
Container Twist Locker |
12pcs container lock |
|
Tire Type and quantity |
12R22.5 12units |
|
Rim |
9.00-22.5 |
|
Traction Pin |
2” or 3.5” |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Standard |
|
Landing Gear |
28ton Chinese brand,double speeds |
|
Brake system |
Dual Line braking system |
|
Brake air chamber |
Six double chamber |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
|
Painting |
Color as customers requirement |
|
Packing |
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint |
|
Delivery way |
Transfer to Qingdao/Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume. |
Product feature and application
(1) Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect;
(2) Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle;
(3) Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable;
(4) Frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards;

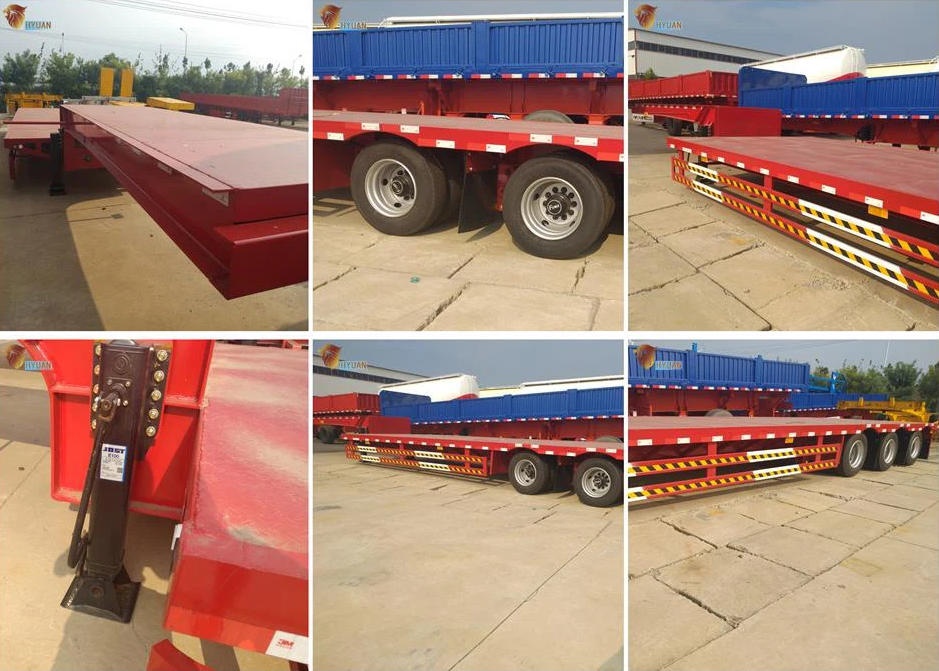

Production details
(1) The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
(2) The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
(3) The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Our Services
(1) We can pick up you in the airport port;
(2) Book the hotel for you;
(3) Show you around the workshop and production line;
(4) We can supply the truck parts;
(5) We can supply the stock trucks if you need the trucks urgently.
Deliver,shipping and serving
(1) Container shipment: 2 sets put into 40HQ container, need cut down trailer tail.
(2) Bulk shipment: Wax spray, put on the ship deck.
(3) RO-RO shipment.
FAQ
(1) You are a trading company or a factory?
Answer: We are a factory, but we have export right, we can export byourself.
(2) How do you control the quality?
Answer: We have our QC, they inspect all semitrailers before sending out.
(3) Do you accept ODM or OEM orders?
Answer: Yes, we accept ODM and OEM orders.
(4) How about the lead time?
Answer: Usually, it will take 25-30 days, if the quantity is over 10 units, we need to negociate.
(5) How about your payment terms?
Answer: there are two options:
Option 1: 30% contract amount for prepayment, the balance 70% need to be paid before shipping.
Option 2: 40% contract amount for prepayment, the balance 60% with irrevocable L/C at sight.
