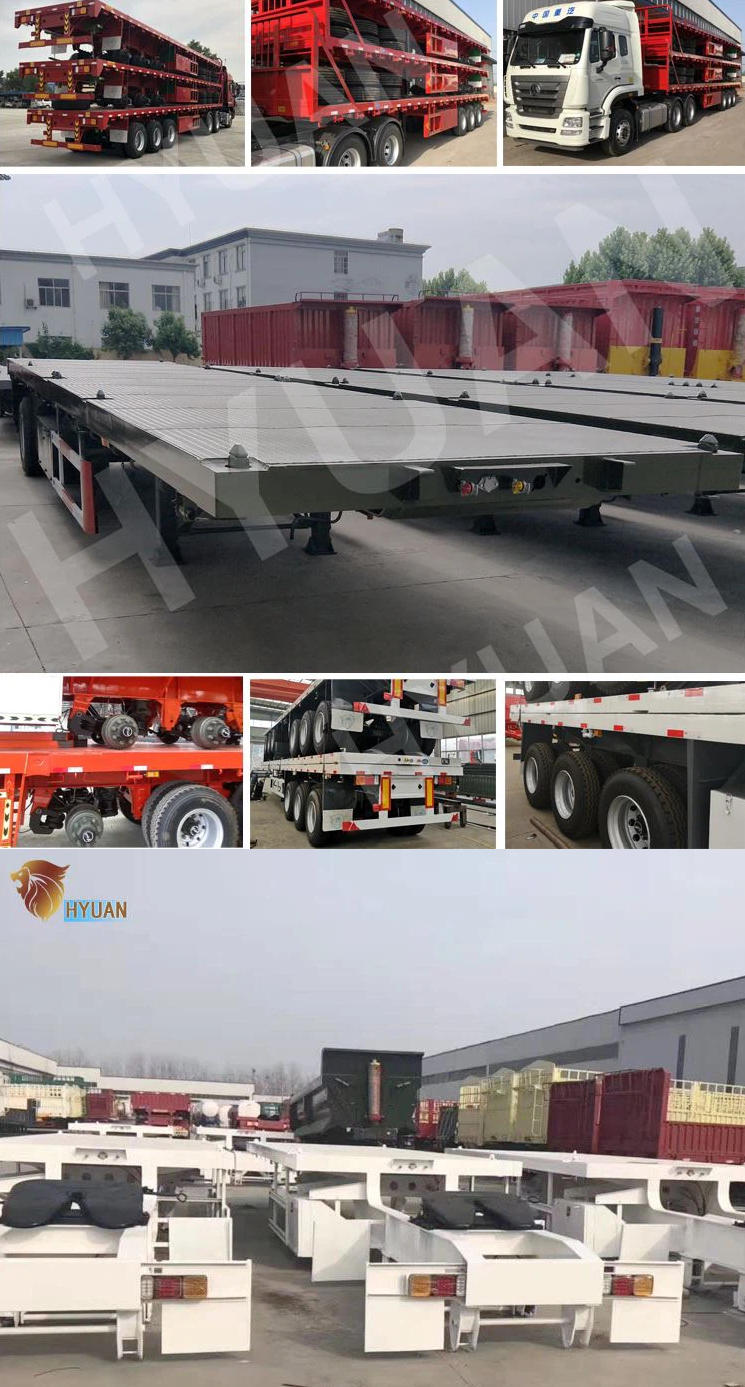

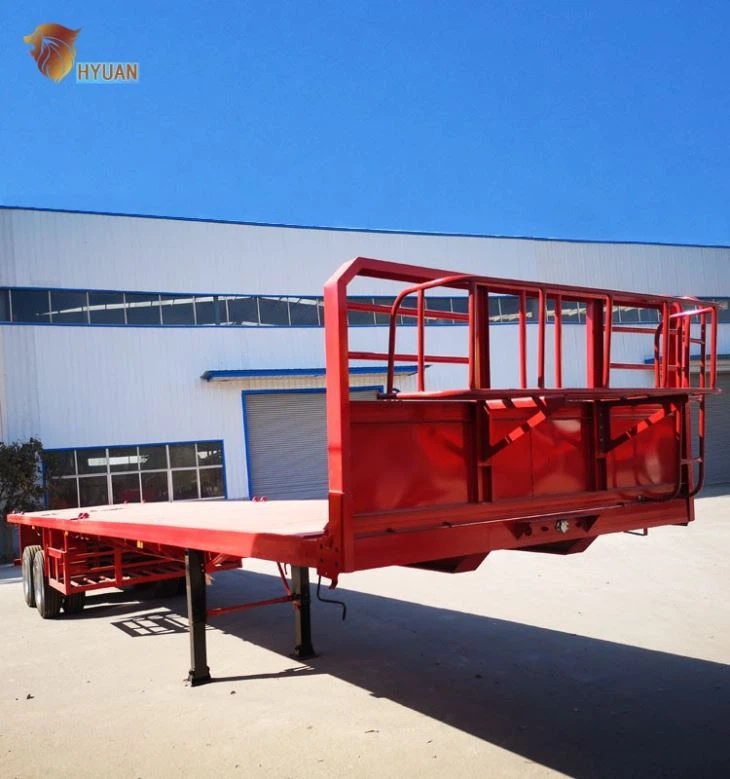

Flatbed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Details
Model Number:flatbed semi trailer
Shipping: Support Sea freight
Lead Time:
Flatbed Trailer
| Quantity(Units) | 1 - 1 | >1 |
| Est. Time(days) | 25 | Negotiable |
Customization:
Flatbed Trailer
Customized logo (Min. Order: 1 Units)
Graphic customization (Min. Order: 1 Units)
Flatbed Trailer
Supply Ability:Supply Ability:2000 Unit/Units per Month
port:Tianjin port Qingdao port Shanghai port /bulk cargo ship/container.
Product Description
We can change the types and brands of parts according to your requirement. Choose from a variety of world-class semi-trailer accessories brands, such as BPW WABCO JOST brand.
|
Trailer Model
|
China Manufacturer 40ft Flatbed Semi Truck Trailers |
|
Function
|
Carry 40ft or 2*20ft container or other stuff
|
|
Overall Dimension (Lx W x H)(mm)
|
12500*2500*1550
|
|
Tare Weight(KG)
|
6350
|
|
Loading Weight( KG)
|
40000
|
|
Total Weight(KG)
|
46350
|
|
Axle Brand
|
13TON Axle FUWA Brand
|
|
Axle Number
|
Three
|
|
Wheelbase(mm)
|
7450+1310+1310
|
|
Suspension system
|
Mechanical Leaf Spring Suspension
|
|
Leaf spring
|
90(W)mm*13(Thick)mm*10 Layer
|
|
The material of Main beam
|
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm.
|
|
Side beam
|
Q235 16# channel steel
|
|
Platform plate
|
3mm Diamond plate
|
|
Container Twist Locker
|
12pcs container lock
|
|
Tire Type and quantity
|
12R22.5 12units
|
|
Rim
|
9.00-22.5
|
|
Traction Pin
|
2" or 3.5"
|
|
Spare Wheel Bracket
|
2 pieces
|
|
Tool Box
|
1 Standard
|
|
Landing Gear
|
28ton Chinese brand
|
|
Brake system
|
Dual Line braking system
|
|
Brake air chamber
|
Six double chamber
|
|
Electrical system
|
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
|
|
Tail lamp with turn signal, brake light & reflector, side lamp etc.
|
|
|
One set 6-core standard Cable.
|
|
|
Painting
|
Color as customers requirement
|
|
Packing
|
Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint
|
|

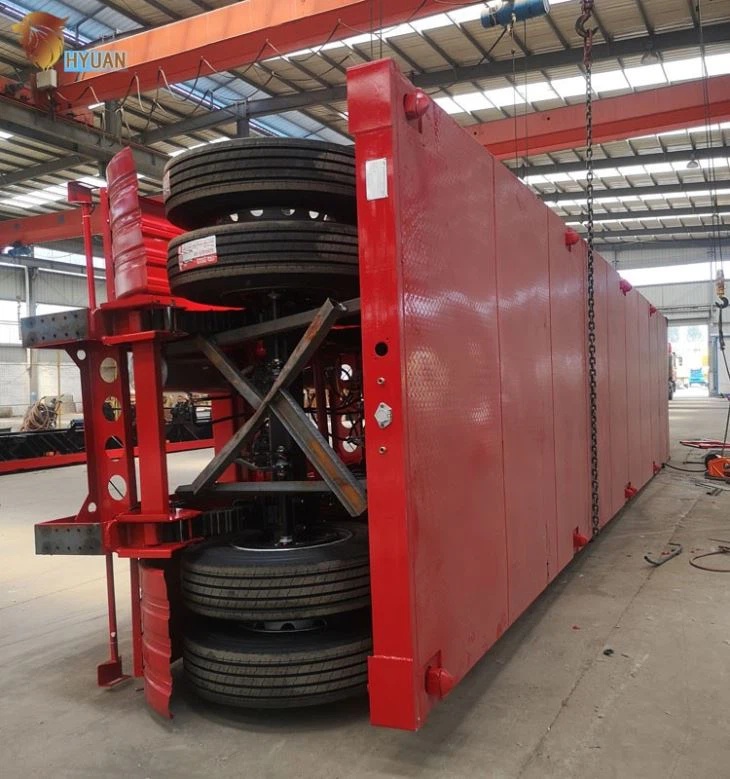

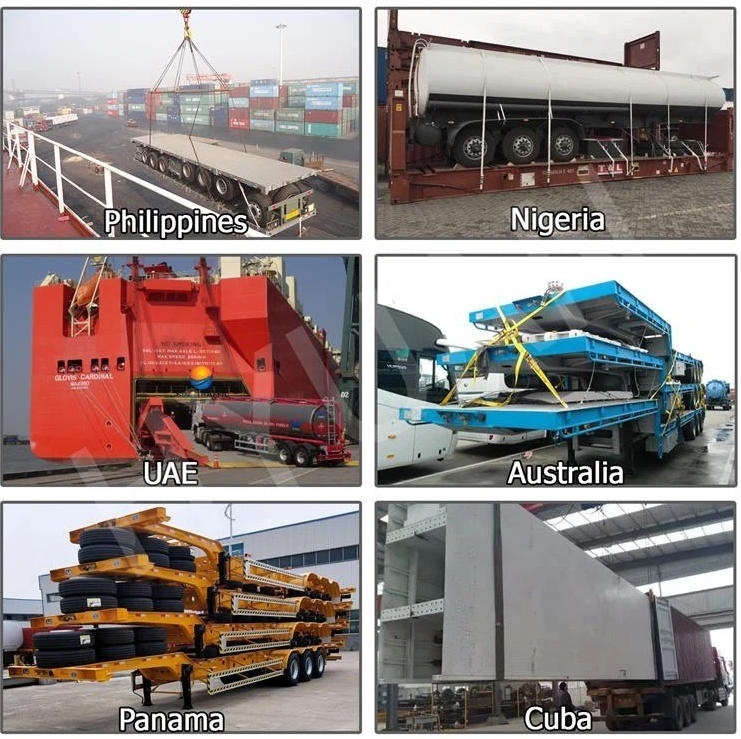

Delivery way
|
Transfer to Qingdao/Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.
|
