Overall Dimension(Lx W x H)(mm)

12500*2500*1550

Function

1x40ft container or 2x20ft container.

Tare Weight(KG)

7700

Payload ( KG)

45000

Axle Brand

13ton FUWA Axle

Axle Number

3

Wheelbase(mm)

6260+1310+1310

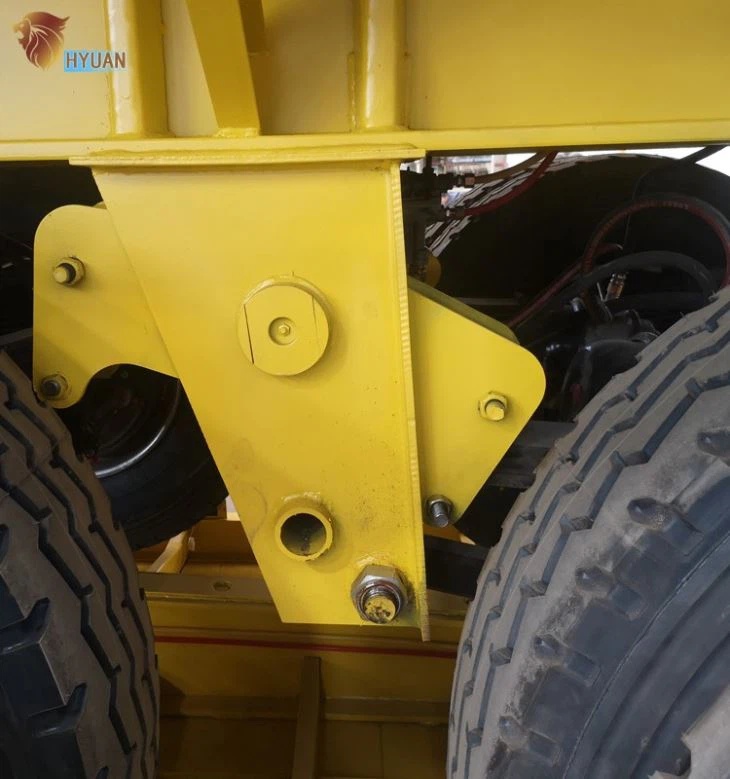

Suspension system

Mechanical suspension

Steel Spring

8/8/8 leaf spring suspension

The material of Main beam

The height of the beam is 500 mm,

upper plate is14mm,down plate is 16mm,

middle plate is 6mm.

Platform plate

3mm Diamond plate

Container Twist Locker

12 pieces

Tire Type and quantity

12R22.5,12pcs

Traction Pin

50mm or 90mm

Spare Wheel Bracket

2 picecs

Tool Box

1 Standard

Landing Gear

28ton landing leg

Brake system

Dual Line braking system ,none ABS.

Brake air chamber

Two double and two single chamber

Electrical system

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Side Guard

According to customers requirement

Painting

Color by customers requirement

Packing

Polish with wax before shipping
