Lowbed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Configuration
Lowbed Trailer
| Dimension | 13000*3000*1650mm (Optional) |
| Loading Capatity | 30-100T |
| Axle | 13T/16T, BPW/FUWA/Chinese brand |
| Axle number | Two,Three or Four and more |
| Rim | 6.5-20 / 7.5-20 / 8.00-20 / 8.5-20 |
| Tire | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
| Suspension | Mechanical supension(American or German)or air supension |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded type) |
| Landing Gear | JOST, FUWA or YAHUA brand 28T |
| Wheelbase | 7180/6680/6260+1310+1310mm,Or other |
| Main Beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. |
| Side Beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
| Platform plate | 5/6/7 mm Diamond Plate |
| Brake system | Dual Line braking system |
| ABS system | optional |
| Ladder | Manual or hydraulic automatic |
| Electrical system | 24V,7 pin socket,One set 7-core standard Cable |
| Tool box | 1 set(waterproof type) |
| Spare tire carrier | 1 set(Patent type) |
| Rmark | The specification just for your reference, we can bulid trailer as your specific requirements |
Lowbed Trailer Product Description

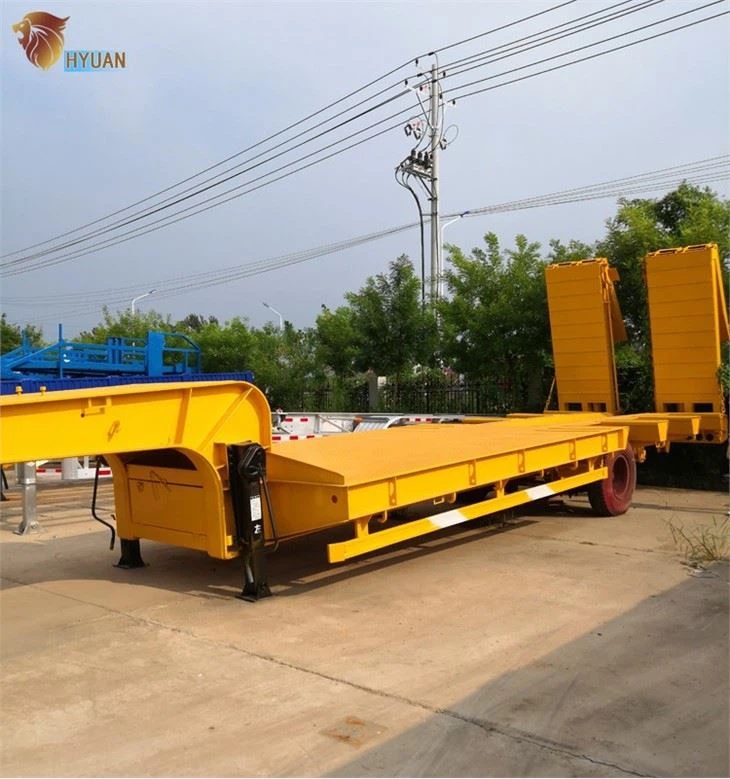

HYUAN low bed trailers are very strong lowbed trailers and with the strength and durability to meet the transport needs. We use high strength steel material for the lowbed trailers, specially for the main key stress point.
We adopt famous brand parts, like WABCO braking valve, German famous brand, Improve the system's reaction sensitivity and stability, More Safe.
Lowbed Trailer
-Product Quality:Our factory has first-class production equipment, design director has many years of experience in designing all kinds of trailers.Our goal is to produce the highest quality, most durable trailer in China.We adapt the trailer to every type of road.
-Our Services:We will reply for you as soon as possible, from product recommendation to order until you receive the product, we will provide you with quality service.
-Our customer:Our customers come from all over the world. Every year, tens of thousands of trailers are sold to Africa, Asia, South America and so on. Our products are sold to more than 50 countries and regions.

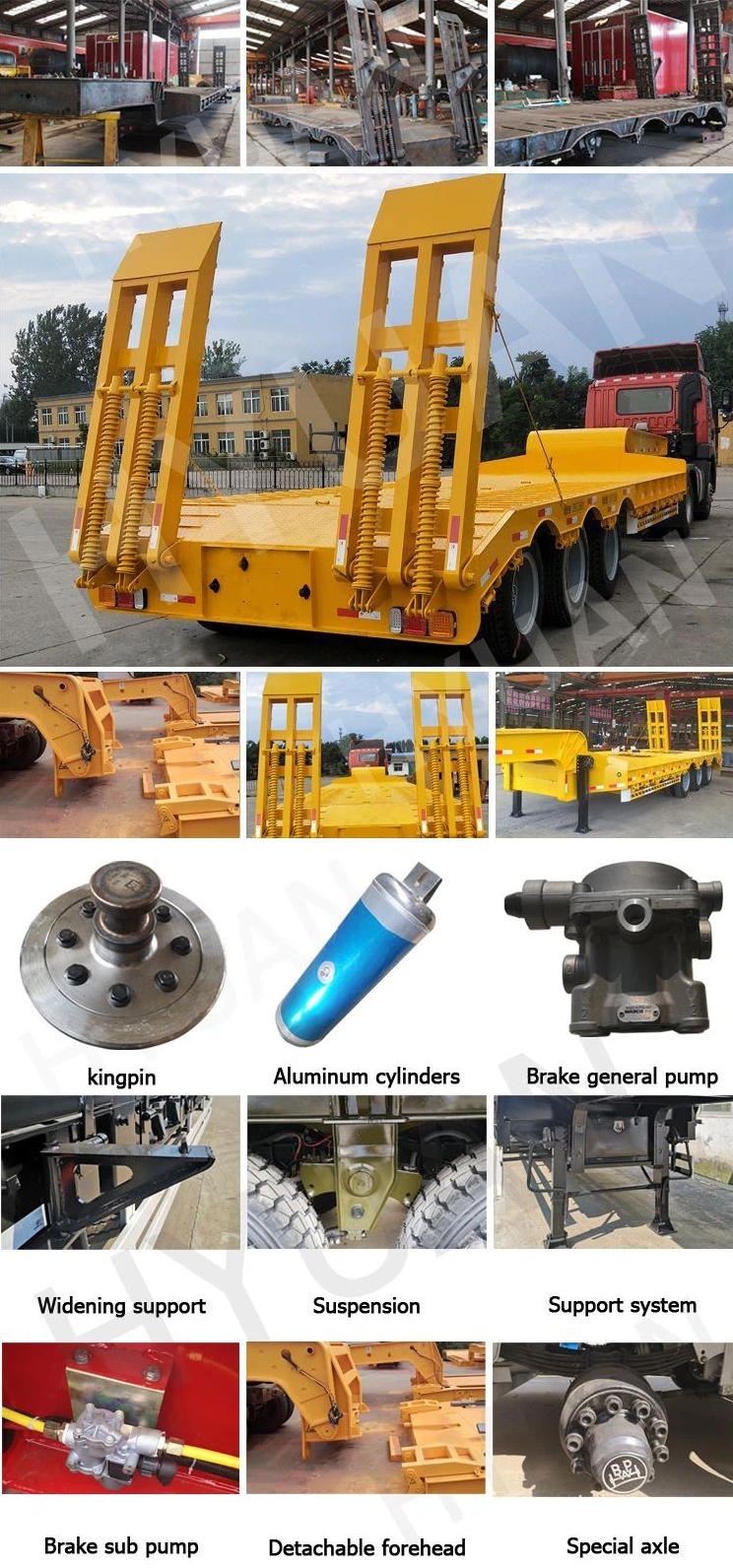

-Our accessories:Main axle brands include FUWA,BPW, etc.Main Trailer Suspension brands include FUWA,SAF, etc.Main Landing Gear brands include FUWA,JOST, etc.Main tire brands include Chengshan,Triangle,Linglong, etc.
Product Drawings
-
We will meet the acme of perfection to serve and provide more details , price ,catalog, drawing ,video for you !
-
Before Manufacturing, We will send a design drawing to our customer for him to check and confirm.
-
The size, color and logo can be customized. If you need more details, please contact me. We will supply the best service and price.
-
-
