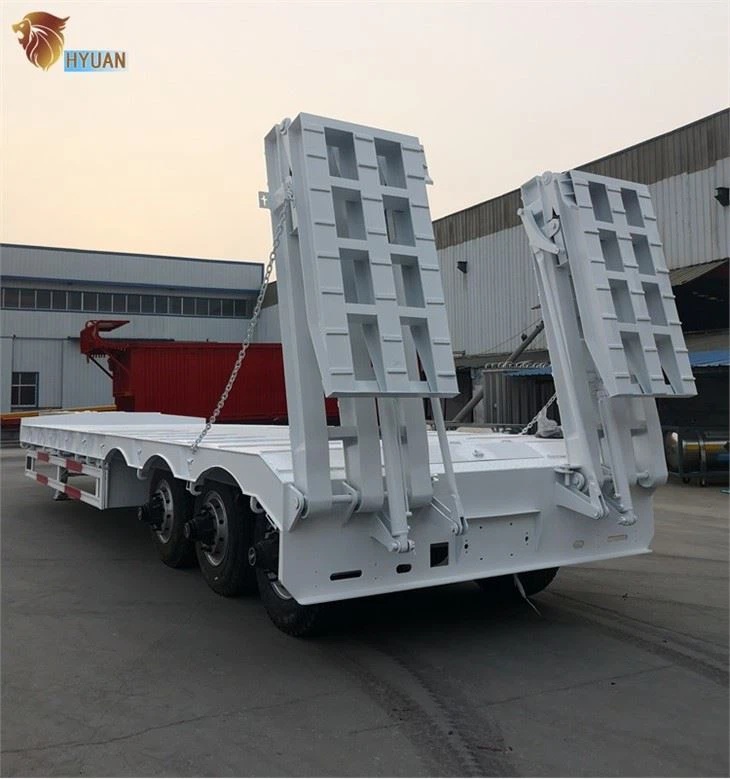

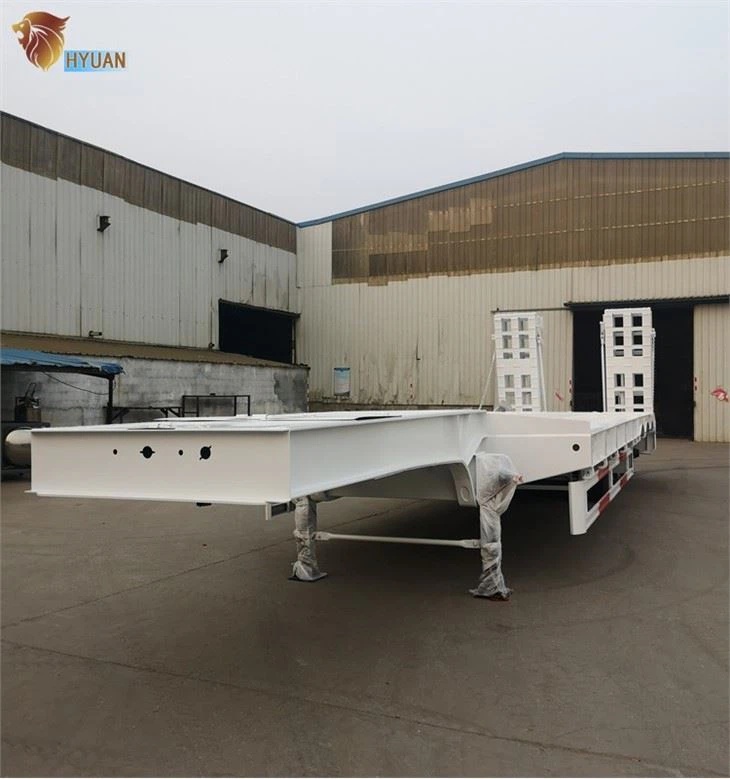

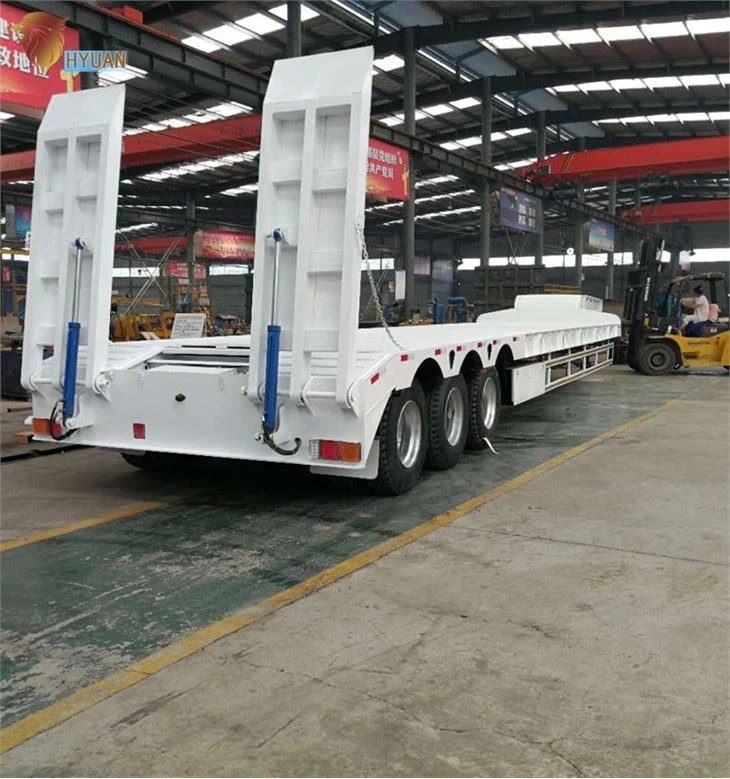

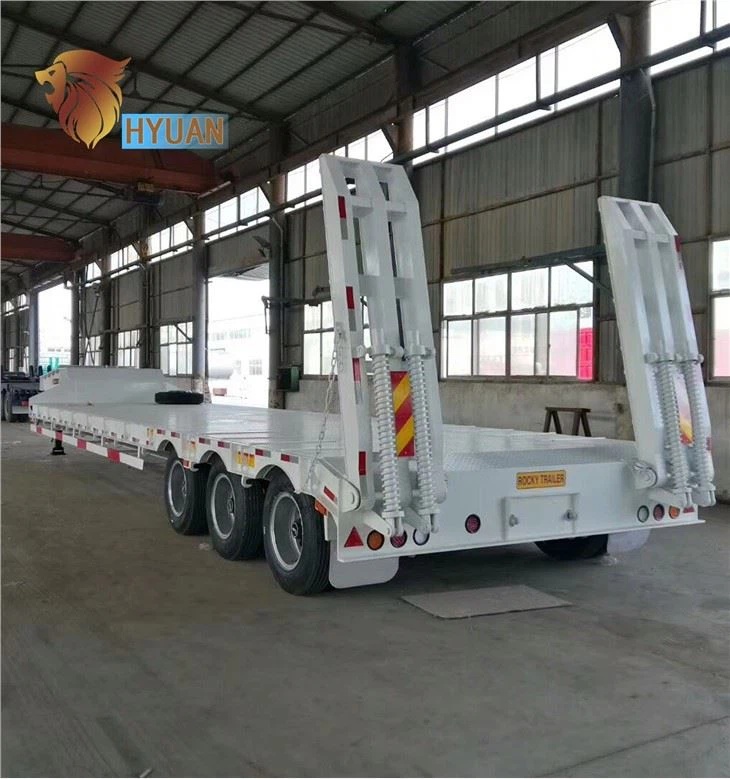

3 Axle 40 Ft Low Bed Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Adopt three axle balance type, double axle balance type or rigid suspension, and install mass balance piece between the front and rear leaf spring, which can make the deflection of the front and rear leaf spring change by the same amount, and make the front and rear axle force balance.
|
Dimensions |
11000-18000×2500-3200×2980mm (According to customer demand) |
|
Axle number |
Two, Three or Four and more |
|
Axle specs. |
FUWA ,YAHUA ,HYUAN or BPW Brand |
|
Suspension |
mechanical or air suspention (American or German) |
|
Rim |
6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20 |
|
King Pin |
JOST 2" or 3.5" traction pin |
|
Support legs |
JOST, FUWA or YAHUA brand 28T |
|
Wheelbase |
7180/6680/6260+1310+1310mm,Or other |
|
Steel Spring |
8/8/8, 10/10/10, 12/12/12 pieces per axle |
|

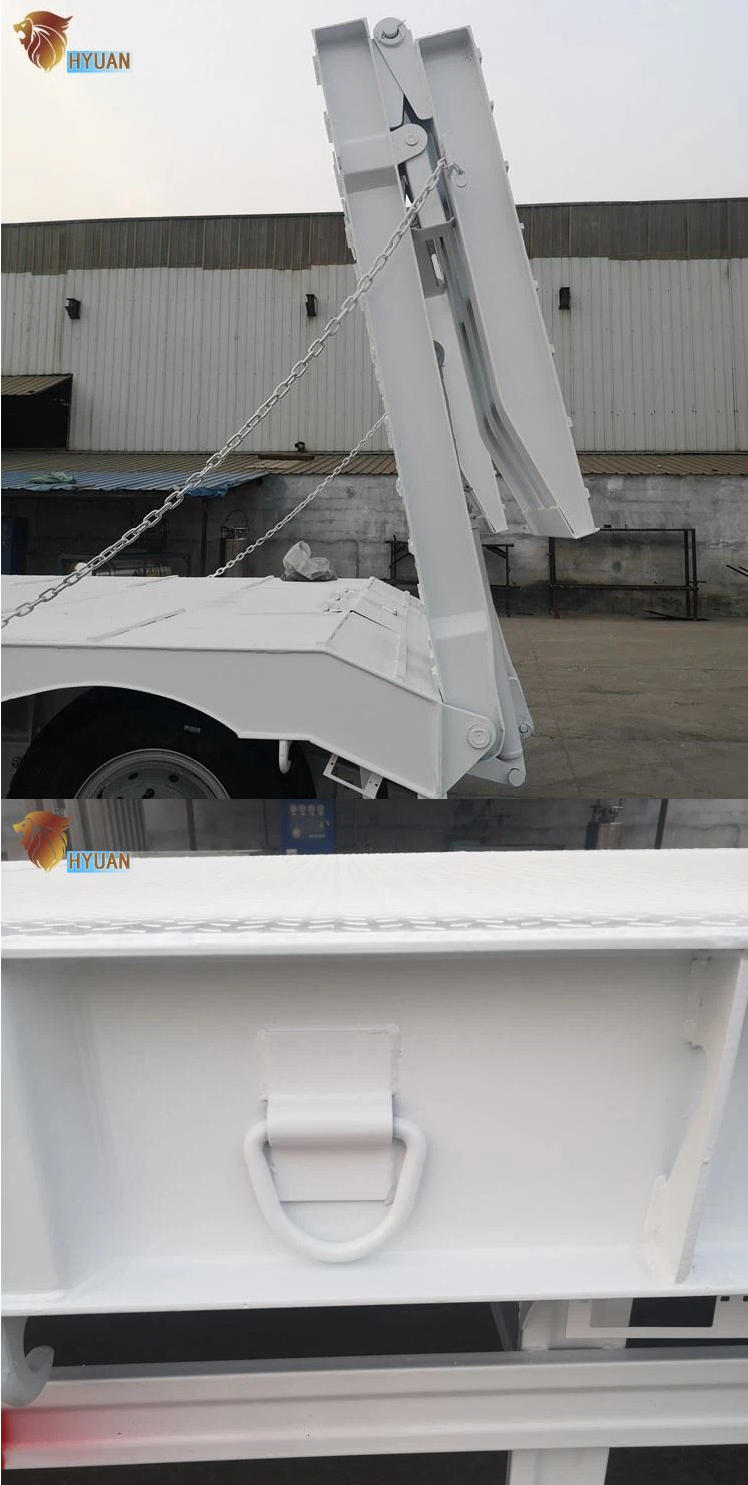

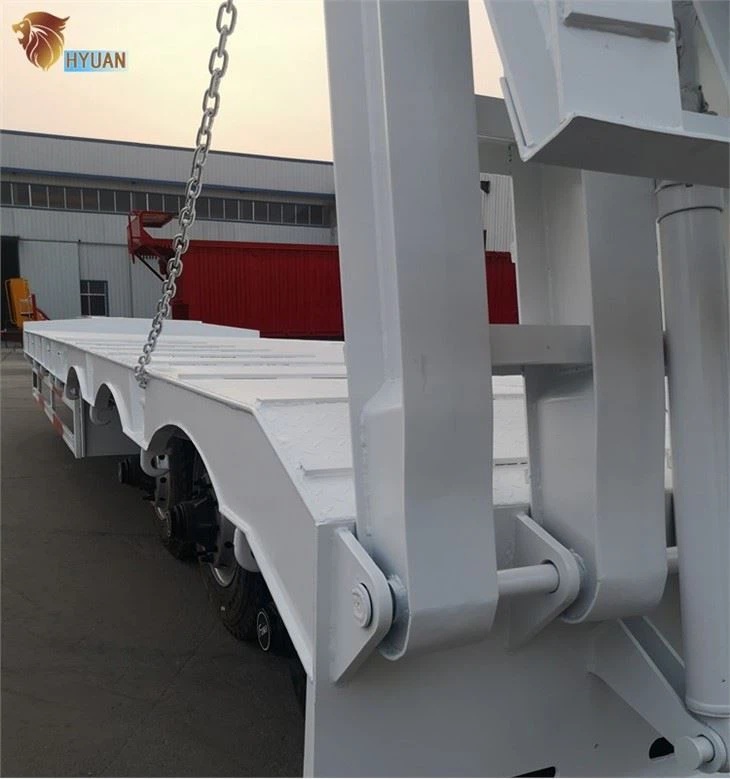

Ladder |
Manual or hydraulic automatic |
|
Electrical system |
24V,7 pin socket, One set 7-core standard Cable |
