Specification number: SDHYGLB-60

Shandong Hengyuan Industrial Co., Ltd

ONE、 The Main Parameters

1、 Model: GLB60

2、 Forms: mobile, easy to assemble, easy to disassemble, continuous, program control.

3、 Output: 60-80t/h

4、 Working voltage: 380V/220V 50Hz

5、 Operation: electrical control

6、 Installed capacity: ~150kw

7、 CIF price USD126,215

TWO、 Main Technical Specifications

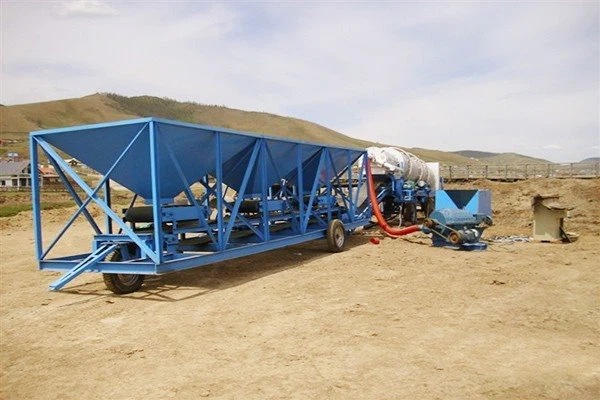

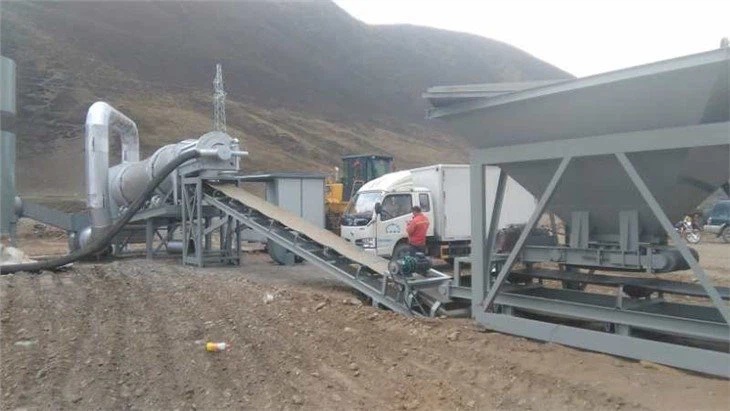

1、 Cold Aggregate Supply Equipment

1.1 Cold hopper (isolation net set at the warehouse mouth) 11×3m

A 4.5m3 (Paperback)

B 5 m3 (stacked)

C 3

1.2 Batching conveyor belt (electromagnetic speed regulation) 0.8×2 meters

Form A: Belt feeding type

B capacity: 0～50t/h

C belt width: 500㎜

D Quantity: 3 units

E Geared motor: BWD2—17—3kw

1.3 Vibrator

A model: ZF18-50

B Quantity: 1 set (located in the sand silo)

1.4 Aggregate conveyor belt 0.8×11m

Form A: Three-point bracket trough frame

B capacity: 90t/h

C Belt width: 550㎜

D Geared motor: BWD3—17—4kw

1.5 Feeding conveyor belt 0.8×11m

Form A: Three-point bracket trough frame

B capacity: 90t/h

C Belt width: 550㎜

D Geared motor: BWD3—17—4kw

2、 Aggregate Drying System

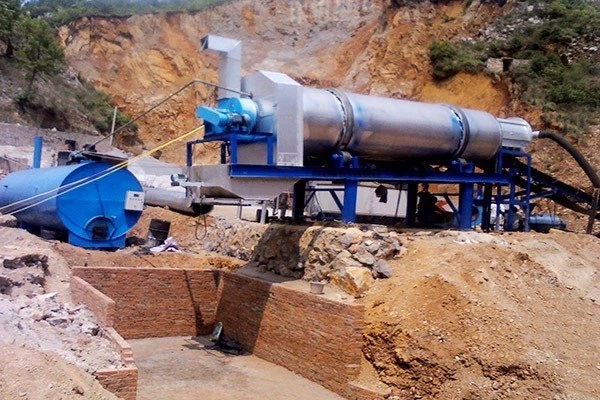

2.1 Drying drum

Form A: Cylindrical tilting and rotating countercurrent type (outer package of thermal insulation stainless steel plate)

B Productivity: 3% water content, when the discharge temperature is 150℃: 80t/h; Water content 5%, when the discharge temperature is 150℃: 60t/h

C Roller specifications: φ1540㎜×6500㎜×12mm

D Gear motor: BWD4—29—5.5kw×4

E drive: friction drive

G temperature measurement: set at the outlet of the discharge box (control the oil pump delivery volume according to the temperature measurement)

2.2 Burner

A model: N-550

B oil pump power: 1.5kw

2.3 Air compressor

A model: Y9-26

B power: 22kw

2.4 Asphalt pump

Model A: 150

B power: 5.5kw

3、 Water Dust Removal

Form A: Circulating water dust removal

B Specification: φ2000㎜×2800㎜

C filter area; 5㎡

D efficiency: 99.5%

E submersible pump; 5.5kw

FH=6m

4. Induced Draft Fan

A Model: 5—47—9C

B Air volume: 19640—36140m3/h

C Wind pressure: 3156—4156mmH2O

D Motor model: 45kw

E Quantity: 1 set

5. Console

Electrical program control is convenient and concise.

6. Asphalt Heating Tank

One GK50 asphalt heating tank, volume 50m3, tank-in-tank type 2.8×9 meters
