5Ton Internal Combustion Forklift
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
The internal combustion forklift produced by jining jinhai ocean is fueled by diesel or gasoline, with a load capacity of 0.5-3.5 tons. Customers can choose according to the tonnage. Diesel internal combustion forklift is large in size, but its stability is good, suitable for heavy load, the use time is unlimited, the use site is generally outdoors. Compared with gasoline engine, diesel engine has better power performance (low speed is not easy to flameout, overload capacity, long time operation ability) and low fuel cost.
Product specification
|
|
Model |
|
FY50 |
|
1 |
Power Type |
|
Gasoline/LPG |
|
2 |
Rated Capacity |
kg |
5000 |
|
3 |
Load Centre |
mm |
600 |
|
4 |
Lift Height |
mm |
3000 |
|
5 |
Fork Size (L×W×T ) |
mm |
1220×150×60 |
|
6 |
Mast Tilt Angle (F/R) |
Deg |
6°/12° |
|
7 |
Front Overhang (Wheel center to fork face) |
mm |
590 |
|
8 |
Ground Clearance(Bottom of mast) |
mm |
200 |
|
9 |
Turning Radius (outside) |
mm |
3250 |
|
10 |
Min. Intersecting aisle |
mm |
2960 |
|
11 |
Max.Gradeability (No load/Full load) |
% |
30 |
|
12 |
Wheelbase |
mm |
2250 |
|
13 |
Service weight |
kg |
8150 |
|
14 |
Battery (Voltage/Capacity) |
V/Ah |
12/120 |
|
15 |
Overall Dimension |
Length to face of fork(Without fork) |
mm |
|
16 |
Overall Width |
mm |
2010 |
|
17 |
Mast Lowered Height |
mm |
2500 |
|
18 |
Mast Extended Height(With backrest) |
mm |
4415 |
|
19 |
Overhead Guard Height |
mm |
2430 |
|
20 |
Speed |
Travel (No load) |
30km/h |
|
21 |
Lifting(Full load) |
mm/s |
500 |
|
22 |
Tire |
Front |
mm |
|
23 |
Rear |
mm |
8.25-15-14PR |
|
24 |
Engine |
Model |
|
|
25 |
Manufacture |
|
|
|
26 |
Rated output/r.p.m. |
kw |
|
|
27 |
Rated torque/r.p.m. |
N·m |
|
|
28 |
No.of Cylinder |
|
4/6 |
|
29 |
Bore×Stroke |
mm |
101.6*88.4 |
|
30 |
Displacement |
cc |
4300 |
|
31 |
Fuel Tank Capacity |
L |
125 |
|
32 |
Transmission |
Type |
Hydraulic |
|
33 |
Stage FWD/RVS |
|
2/2 |
|
34 |
Operating Pressure for Attachment |
Mpa |
19 |
Product feature and application
1. Power System. forklifts are all with reliable power accessories,like Mitsubishi Engine. All accessories are support by domestic and world famous brand, high quality, reliable after-sales.We follow the strict environmental design,all engines match the China or even higher emission standards.
2. Super comfortable.SAFER forklifts are all with comfortable driving space,adjustable steering wheel and seats,super low and non-slip step,suspension steering axle,storing space,and convenient LCD panel.
3. Forklift can equip with different attachments according to your need.

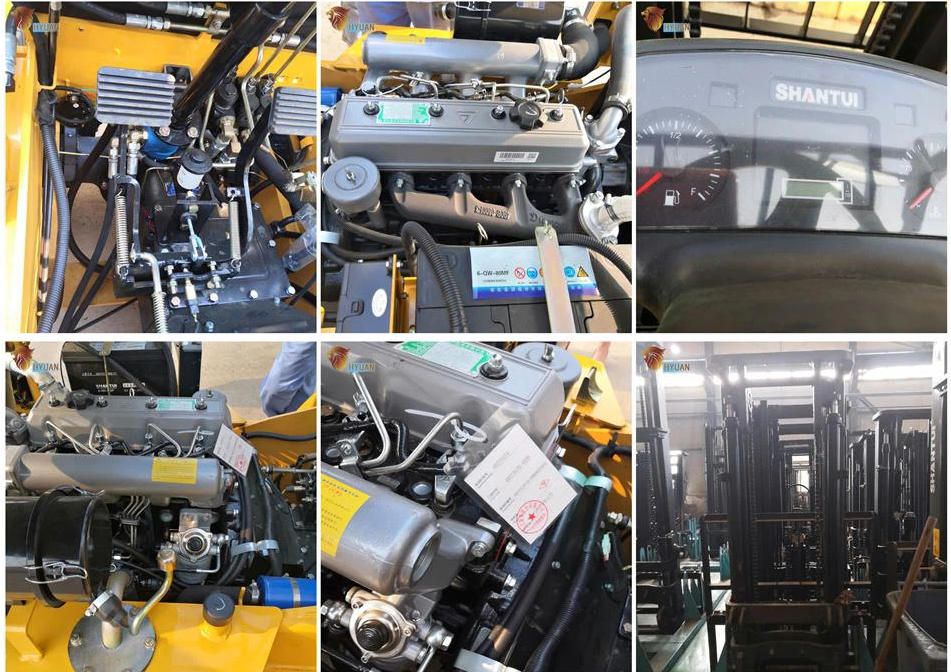

Production details
1) Environment friendliness
Low noise and exhaust emissions make Noelift forklift environment friendliness.
2) Outstanding comfort
Operation comfort is improved through ergonomic design, enlarged operation space and reasonable layout.
3) Safety and reliability
It is designed to be thougher and more durable
4) Easy maintenance
It is easy to carry out maintenance and thus prolongs truck service life.
5) Excellent working efficiency
The operating performance and efficiency are improved.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Packing by Container, In Bulk, Flat rack.
Loading within a week after receiving the deposit.
FAQ
Q. Can you customize and design as the clients' requirement?
will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
Q. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Q. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
Q. Delivery time:
Standard configuration products are always in stock.
Q. How can you ensure the quality of the products?
Don’t worry,we joined the trade assurance. If the products have quality problem when you received the goods, return you full payments.
