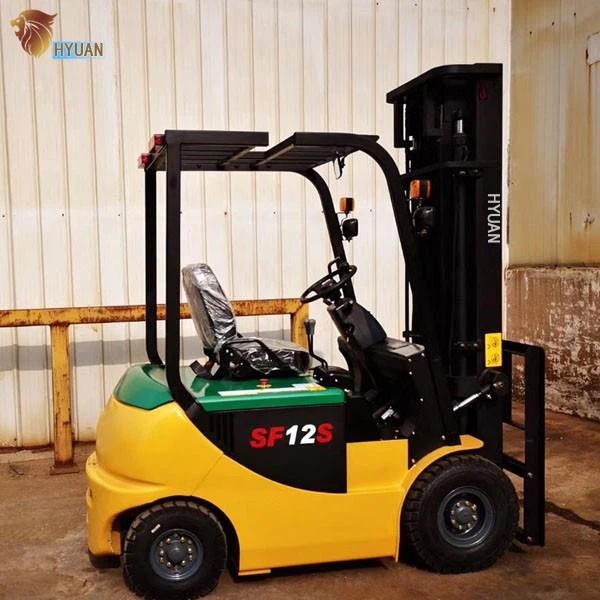

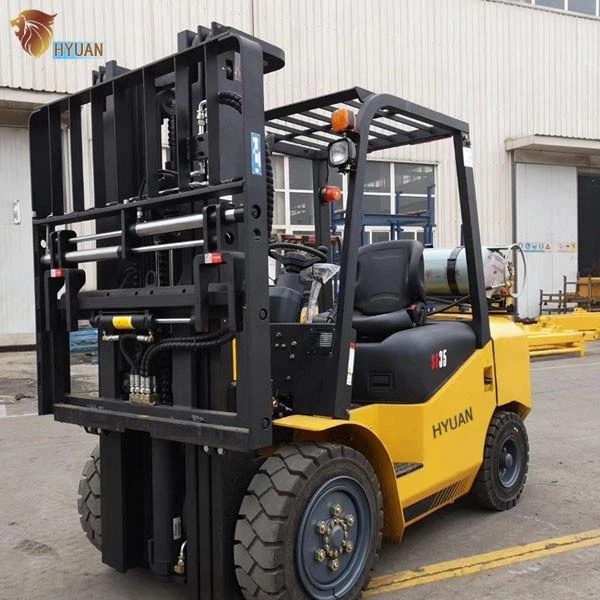

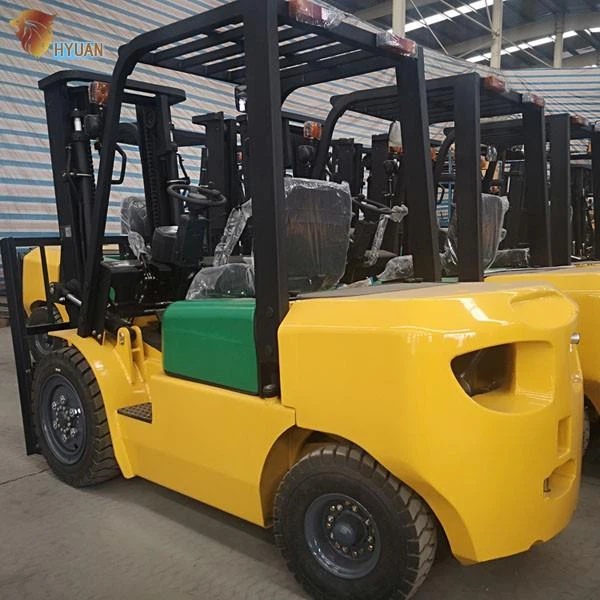

10Ton Electric Forklift
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting, used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport, factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.
Product specification
|
Characteristics |
Model |
SF100 |
Unit |
|||
|
Capacity |
10000 |
kg |
||||
|
Load center |
600 |
mm |
||||
|
Power type |
Diesel |
|
||||
|
Dimensions |
Lift height |
3000 |
mm |
|||
|
Free lift height |
200 |
mm |
||||
|
Fork size |
1220x73X80 |
mm |
||||
|
Mast tilt angle |
6/12 |
deg |
||||
|
Front load distance |
720 |
mm |
||||
|
Dimensions |
Total length |
5400 |
mm |
|||
|
Total width |
2230 |
mm |
||||
|
Lift height(mast lowered) |
2800 |
mm |
||||
|
Lift height(mast raised) |
4426 |
mm |
||||
|
Safety frame height |
2500 |
mm |
||||
|
Min.turning radius |
3900 |
mm |
||||
|
Min.right angle aisle width |
3540 |
mm |
||||
|
perfomance |
Hydraulic |
|||||
|
Mechanical Gear I |
- |
|||||
|
Mechanical Gear II |
26/28 |
|||||
|
Lift speed(with load) |
360 |
|||||
|
Max gradeability |
20 |
|||||
|
Service weight |
12700 |
|||||
|
Chassis |
Tyres |
Front |
9.00-20-14PR |
|
||
|
Rear |
9.00-20-14PR |
|
||||
|
Tread |
Front |
1600 |
mm |
|||
|
Rear |
1722.5 |
mm |
||||
|
Wheelbase |
2800 |
mm |
||||
|
Groundclearance(with/without load) |
Mast |
205/240 |
mm |
|||
|
Frame |
240 |
mm |
||||
|
Engine |
Model |
CY6BG332-36 |
|
|||
|
Relted power |
85/2200 |
kW |
||||
|
Rated torque |
450/1700 |
|||||
|
Cylinder number |
6 |
|||||
|
BoreXStroke |
102X118 |
|||||
|
Displacement |
5.788 |
|||||
|
Oil tank capacity |
130 |
|||||
|
Type |
Hydraulic |
|||||
Product feature and application
Improved driver's view
Standard configuration of wide view mast, compact structure of mast and tube pulley block;
Overhead guard with large arc and grid tray with optimized angle enlarge driver's upper view.
-Choose to use chinese battery, and it can be taken out easily(two way,From top and from side)
-LED lamp
-Famous brand battery and charger
-Curtis or Zapi AC controller
-Reasonable structure,better heat dissipation for controller
-Battery water automatic replenish for optional
-Forklift With Powerful Ac driving motor applied to reduce maintenance cost and increase the overall performance.

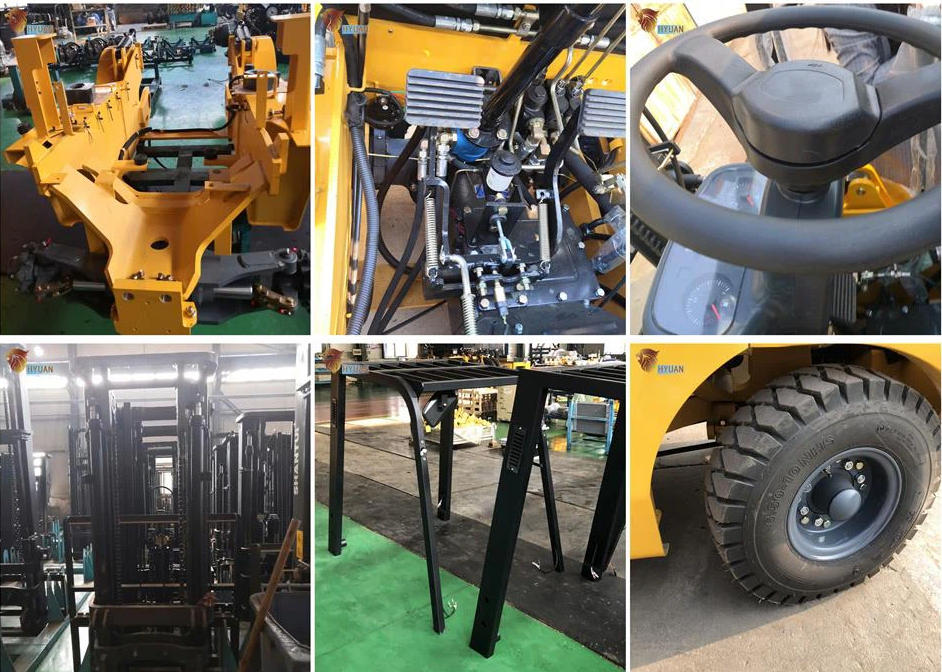

Production details
-- Great Reliability.
-- Innovative design.
-- Simplified serviceability.
-- Enhanced productivity.
-- Wide-view mast.
-- Solid overhead guard.
-- Powerful engine.
-- Impaco convertor.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving

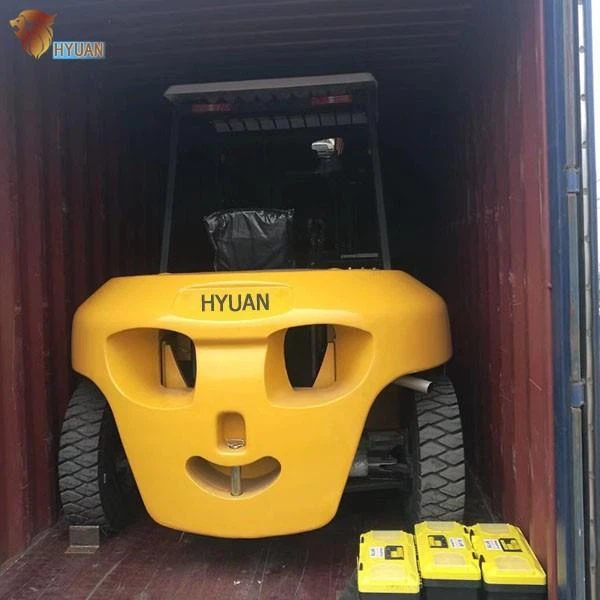

Packing by Container, In Bulk, Flat rack.
Loading within a week after receiving the deposit.
