Shacman F2000 Dump Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Mine transport dump truck is an important truck in the project construction work.
The cargo dump truck is made up of chassis, hydraulic lifting mechanism, the loading bucket and power take off device, etc.
It works together with the excavators, wheel roaders, track transporter and other machines.
Product specification
|
Model |
SX3251DM384 |
||
|
Cabin |
MAN F2000, middle length flat roof. with one sleeper, air conditioner optional |
||
|
Engine |
Brand: |
WEI CHAI |
|
|
Model: |
WD615.50 |
||
|
Power(kw/HP) |
213/290 |
||
|
Max torque(N.m)/rpm: |
1160/1100-1600 |
||
|
Displacement(L): |
9.726 |
||
|
Emission Standards |
Euro Ⅱ |
||
|
Transmission |
Brand |
FAST |
|
|
Model: |
9JS135, manual |
||
|
Gear Shift: |
9-forward and 1 reverse speeds |
||
|
Axle |
Front axle: |
MAN 7.5ton |
|
|
Rear axle: |
STR 13ton(each other), Double reduction driving axle |
||
|
Ratio: |
5.73 |
||
|
Clutch |
430 |
||
|
Brake |
Type: drum; option:ABS |
||
|
Service brake: with dual-circuit compressed air brake |
|||
|
Parking brake: Power spring brake acting on rear wheel |
|||
|
Auxiliary brake: WEVB |
|||
|
Steering |
With left hand drive |
||
|
Tyre |
11.00-20 option:12.00R20/12.00-20/11.00R20/12R22.5,315/80R22.5 |
||
|
Fuel tank |
Tank capacity:380L Material:iron |
||
|
Overall dimension (mm) |
8329x2490x3750 (Length x width x height) |
||
|
Dump box dimension (mm) |
5600*2300*1500 |
||
|
Wheelbase (mm) |
3800+1350 |
||
|
Track: |
Front/Rear |
2050/1800 |
|
|
Approach/Departure angle |
20/20 |
||
|
Front /Rear overhang |
1525/1654 |
||
|
Max speed |
77km/h |
||
|
Kerb weight: |
12100kg |
||
|
Total mass |
25000kg |
||
Product feature and application
1) Dump truck engine, chassis and the structure of the bridge the same with generally truck.
2) Dump truck carriage devides into the backward tilting and lateral tilting,according to manipulating system to control the movement of the piston rod, backward tilting is common, push the piston rod to make car tilting, can make the car stop in any need of inclined positiona, small number of two-way tilting.
3) The high pressure oil pass istributing valve、pipeline and go into the lifting hydraulic cylinder, bridge safety protection plate is in the front of carriage.
4) Engine drives hydraulic pump through the transmission and force device, hydraulic tipping machineFuel tank is consist of fuel tank,hydraulic pump, distributing valve, lifting hydraulic cylinder, control valve and tubing etc.
5) Cars can be reseted through its own gravity and hydraulic control.

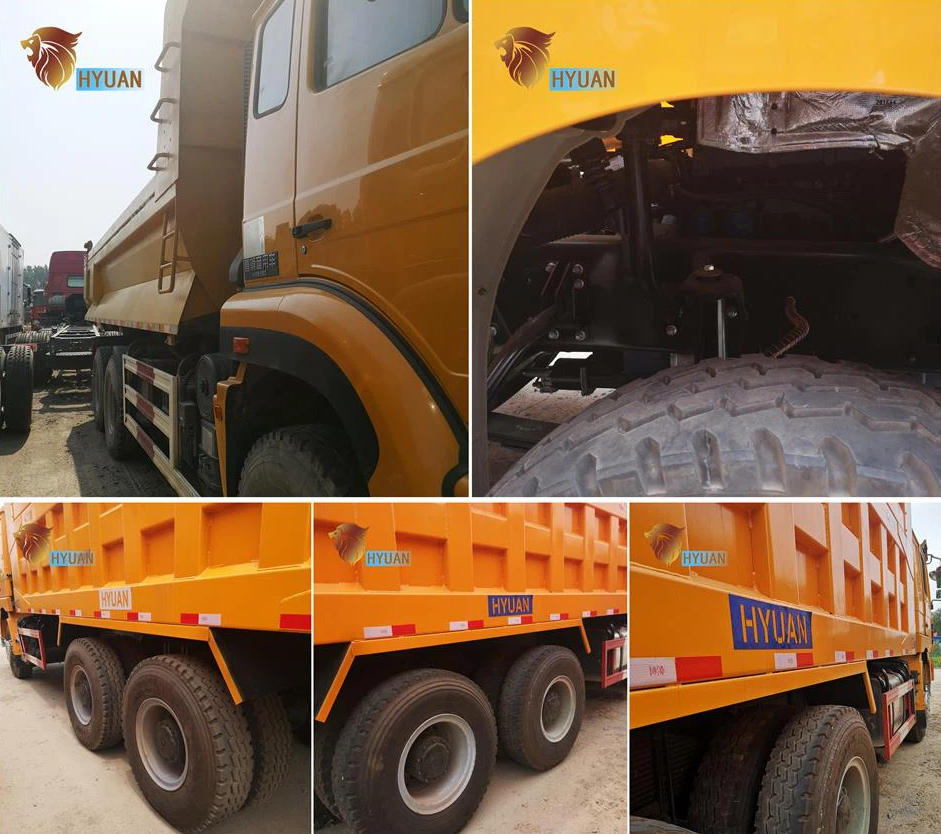

Production details
1) Driving type: LHD (RHD is option)
2) Cabin: MAN F2000 cab, extra lengthened series extra widened with normal-roof(A/C)
Main parameter: Engine
Engine brand: Cummins
Engine model: WEICHAI 380HP / ISME385 30 385HP Euro III
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596 liters
Max. Output: 380/385HP
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Packaging Details: Naked,shipping by container or by RO-RO,bulk cargo ship.
Delivery Detail: Within 15 workdays after received 30% deposit.
Our Servive:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
FAQ
1. How is the quality of the machine exported from your country?
All of the machines we export are in excellent condition and ready to work.
2. Do you inspect all your products before delivery?
Yes, we inspect the appearance and functions of the trailers before delivery.
3. What is your terms of payment?
30% T/T as deposit, and 70% before shipment. We'll show you the photos of the products and packages before you pay the balance.
4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee. bulk or container.
