Shacman F3000 8x4 Dump Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
This vehicle mainly used in construction, deliver construction material, such as ash, stone, earth etc. Our product fully passed ISO9001-2000 international quality system and 3C authentication
Product specification
|
Cabin |
Driving type , 8x4, Left hand drive. |
|
|
HW76 standard cab, with one sleeper bed and A/C, 70°hydraulically tillable to the front as attached photo for ref. |
||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
10245×2496×3386 |
|
Wheel base (mm) |
1800+3500+1350 |
|
|
Wheel track (front/rear) (mm) |
2020/1800 |
|
|
Approach/Departure angle(°) |
19/18 |
|
|
Weight in KGS |
Tare Weight |
14860 |
|
Rated payload |
36000 |
|
|
Front axles loading capacity |
HF9 2x9000 |
|
|
Rear axles loading capacity |
AC16 2x16000 |
|
|
Max. driving speed(km/h) |
80 |
|
|
Engine |
Brand |
Sinotruk |
|
Model |
WD615.47 |
|
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
371hp |
|
|
Emission standard |
Euro Ⅱ |
|
|
Gearbox |
HW19710, 10 Forwards gear & 2 reverse gear |
|
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
|
|
Steering Gear |
ZF 8098,power steering, hydraulic steering with power assistance |
|
|
Fuel tank (L) |
400 |
|
|
Tire |
12R22.5 Tubless Tire, 13 pieces including one spare |
|
|
Brakes |
Service brake: dual circuit compressed air brake Auxiliary brake: engine exhaust valve brake |
|
Dump/Tipper Body.
|
Thickness |
Side |
6mm in high tensile strength steel Q345/B |
|
Front |
6mm in high tensile strength steel Q345/B |
|
|
Bottom |
8mm in high tensile strength steel Q345/B |
|
|
Dump body Size |
(L x W x H) |
7300mm x 2300mm x 1500mm |
|
Tipping hydraulics |
Tipping type |
front tipping type |
|
Tipping system |
Complete set of HYVA brand hydraulics system |
Product feature and application

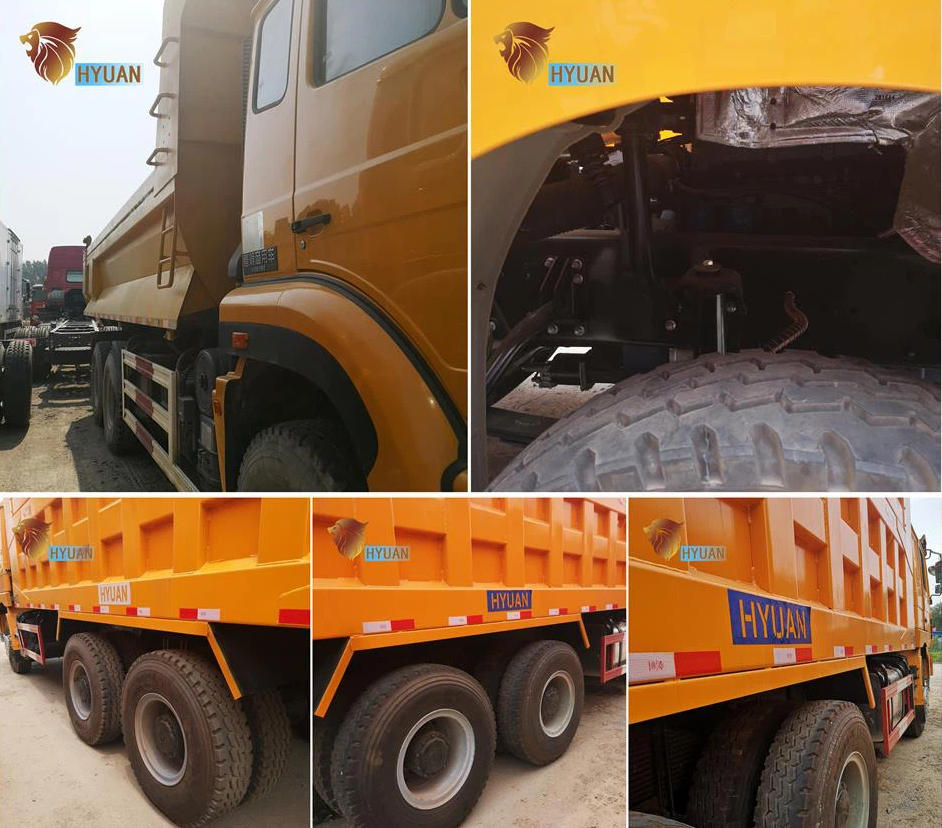

A dump truck also known as a dumper truck or tipper truck was used for transportation loose material (such as sand, gravel, or demolition waste) for construction.
A typical sumpe truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic arms to lift the front , allowing the material in the bed to de deposited on the ground behind the truck at the site of delivery.
Below one we recommend is Chinese famous Shacman Brand , 6X4 , 350hp Dump truck.
You can choose right hand drive or left hand drive type . Also EURO III , EURO IV , EURO V is available.
Production details
(1) Capacity: option 1-50 ton dump truck.
(2) Steering wheel: both left and right hand drive,meet the needs of different countries.
(3) Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 dump truck tipper truck
(4) Truck chassis: option japan and china brand
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO
(1) Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2) Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3) Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: I want to be your agent in my country, is that ok?
A: It’s ok, If your quantity is big, we will consider. For the first time 30units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
