Dump Tipper Truck Price
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Dump Tipper Truck Price Product Description

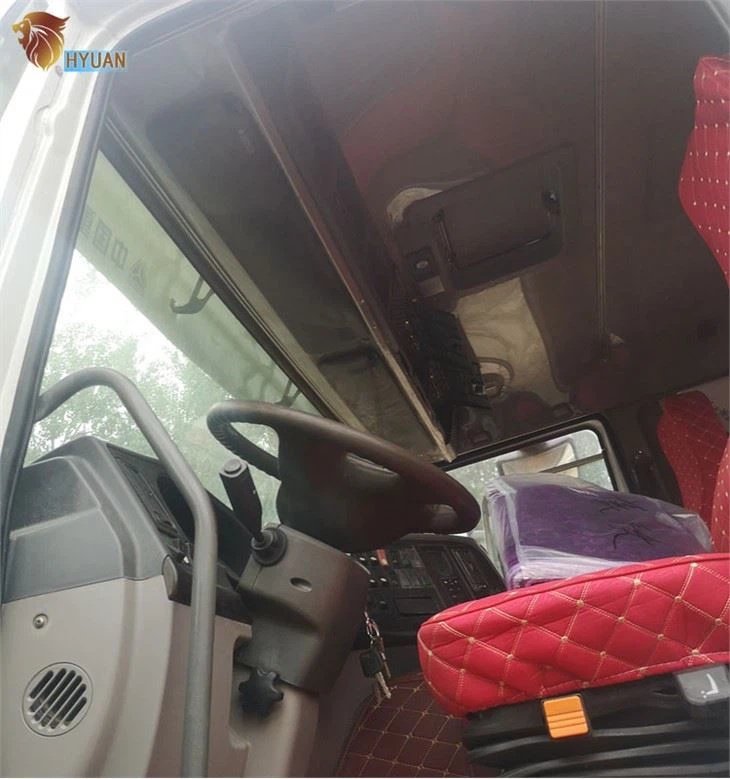

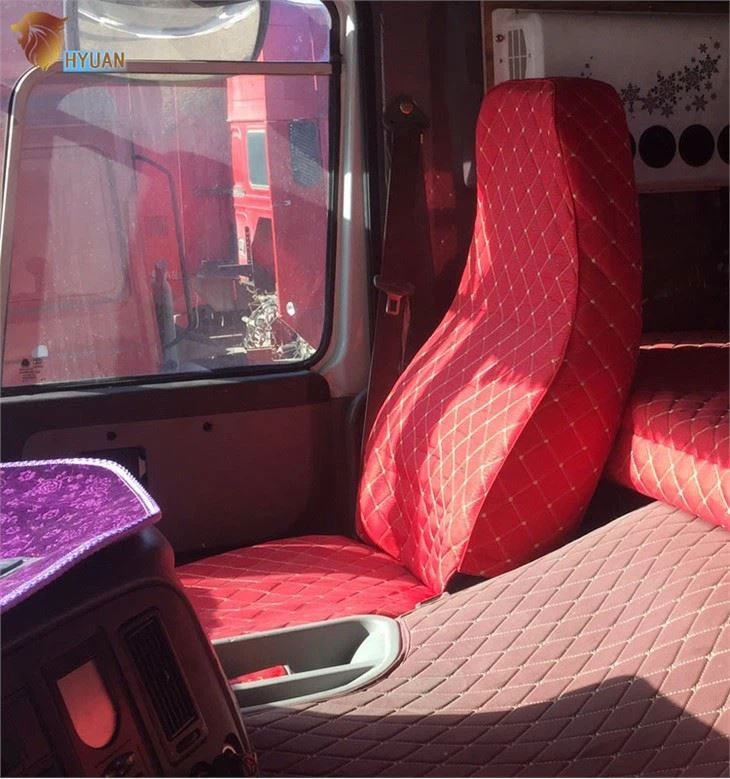

1.Cabin renovated with new painting, new interior;
2.Frame refurbished;80% tires 12R20;
3.Engine major maintenance and change oil;
4.Change whole gear oil of the truck;
5.Circuit, air circuit and other functions are well.
|
Product name |
Dump Tipper Truck Price |
|||
|
Dimension |
7934mm*2496mm*3386mm(L*W*H) |
|||
|
Payload |
16/20/25/30ton |
Dead Weight |
12090kg |
|
|
Front Overhang |
1500mm |
Rear Overhang |
1859mm |
|
|
Wheelbase |
3225mm +1350mm |
|||
|
CHASSIS |
||||
|
Chassis Brand |
SINOTRUK HOWO |
|||
|
Driving Type |
6x4 |
|||
|
Cab |
HW70, left hand drive, air-conditioner, no sleeping berth |
|||
|
Engine and Power |
Brand: SINOTRUK, diesel engine, 336HP, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard |
|||
|
Gear Box |
HW9, 9 forward speeds and 1 reverse |
|||
|
Clutch |
Model: GF420J, Single-plate dry clutch |
|||
|
Tire |
12.00-20, 11units including 1 spare tire |
|||
|
CARGO BODY |
||||
|
Inside Dimension |
5400mm*2300mm*1300mm(L*W*H) |
|||
|
Hydraulic Jack |
Front setting telescopic jack |
|||
|
Steel sheet thickness |
Floor 8mm, front wall 6mm, side and back wall 4mm |
|||
|
Tailgate |
One-piece tailgate with upper articulation, safety lock system |
|||
