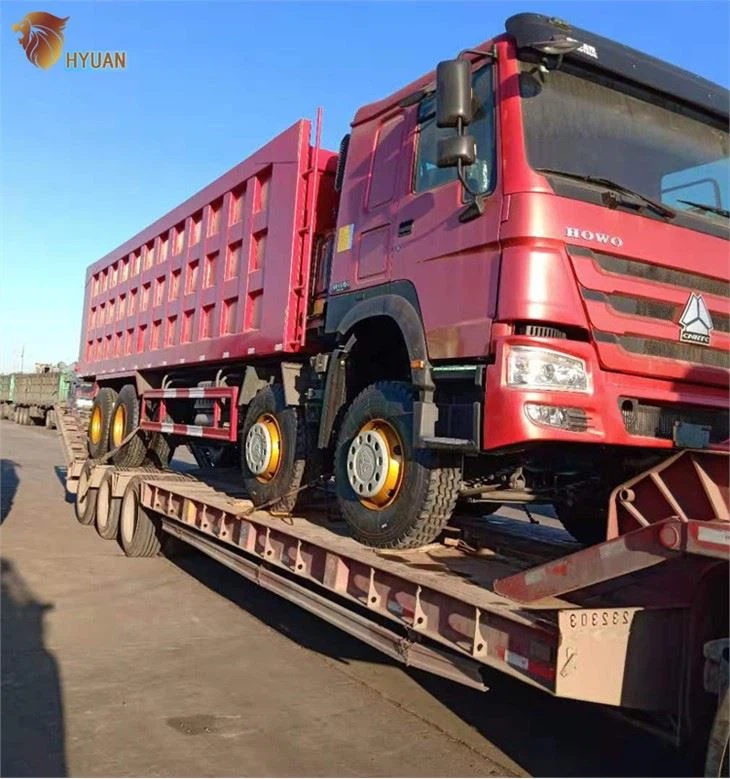

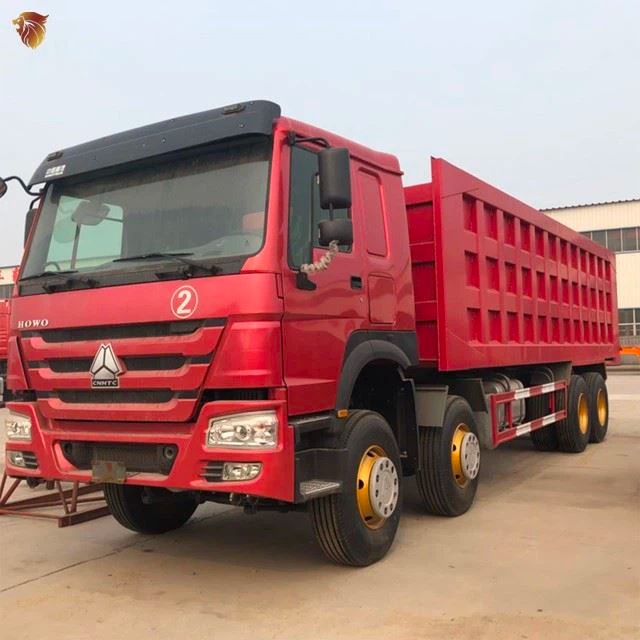

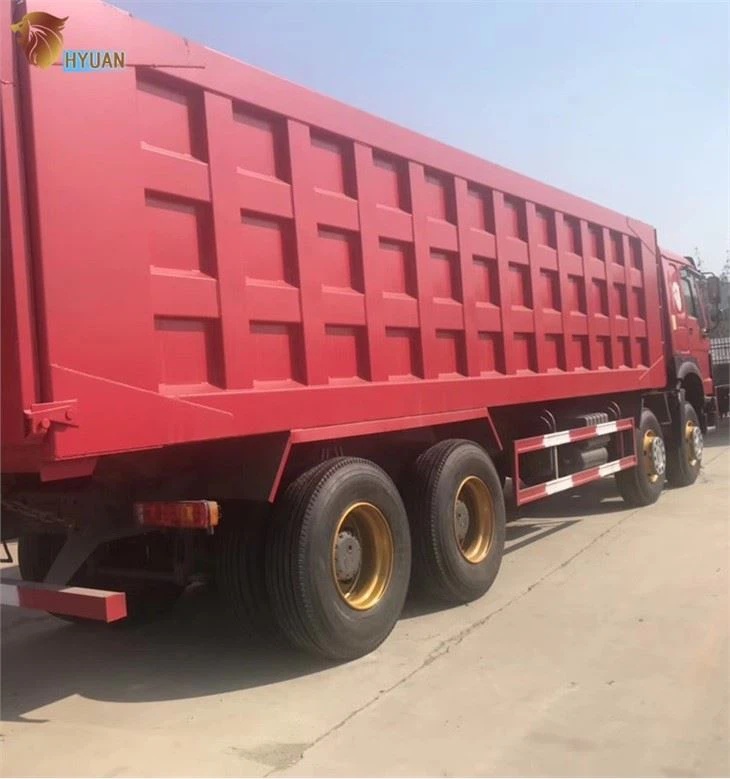

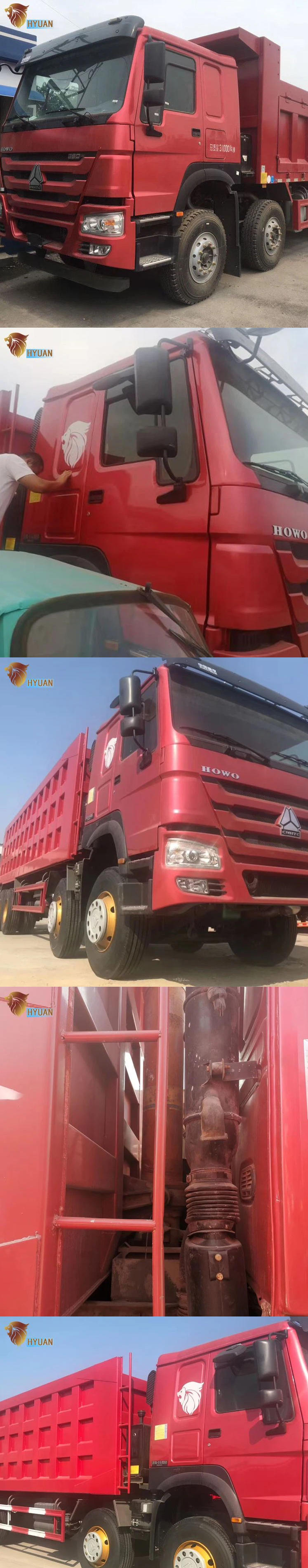

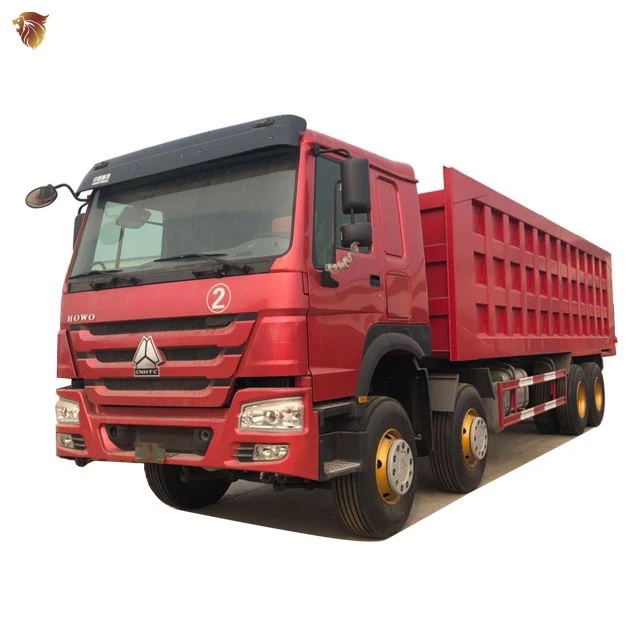

8x4 Dump Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Details
|
Cab
|
HW76
|
||||||||
|
Transmission
|
HW15710/HW19710
|
||||||||
|
Front Axle
|
HF9
|
||||||||
|
Steering
|
ZF8098
|
||||||||
|
Rear Axles
|
HC16
|
||||||||
|
Wheels & Tyres
|
8.5/12.00R20
|
||||||||
|
Engine
|
Model
|
WD615.62
|
WD615.87
|
WD615.69
|
WD615.47
|
||||
|
Horsepower
|
266
|
290
|
336
|
371
|
|||||
|
Maximum output
Kw/r/min |
196/2200
|
213/2200
|
247/2200
|
273/2200
|
|||||
|
Maximum torque
N.m/r/min |
1100/1100-1600
|
1160/1100-1600
|
1350/1300-1600
|
1460/1300-1600
|
|||||
|
Type
|
6-cylinder in line, 4-stroke, water-cooled,
turbo-charged & inter-cooled, direct injection |
||||||||
|
Bore x Stroke
|
126x130mm
|
||||||||
|
Valve
|
2
|
||||||||
|
Displacement
|
9.726L
|
||||||||
|
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃
opening begin, Rigid fan |
|||||||||
|
Option:Thermostat with 71℃ opening begin; silicone oil fan; Cold-start with
electric-inlet-air heating System (180Ah battery) |
|||||||||
|
Cab
|
SINOTRUK HW76 Lengthen cab,single bunk,new type seat,adjustable steering
wheel,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air Conditioner. Option: right driving; color |
||||||||
|
Clutch
|
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with
air assistance |
||||||||
|
Transmission
|
SINOTRUK HW15710 or HW19710 transmission ,10 forward and 2 reverse
Ratio:14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91(R1) 3.18(R2) |
||||||||
|
Front Axle
|
SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes
Option: disc brake |
||||||||
|
Steering
|
German ZF8098 Steering Gear Box ,hydraulic steering with power assistance,
Ratio:22.2-26.2 |
||||||||
|
Rear Axles
|
HC16 Heavy reduction drive axle,STR hub-reduction with differential locks
between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. |
||||||||
|
Brake
System |
Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels Auxiliary brake:engine exhaust valve brake |
||||||||
|
Wheels & Tyres
|
Rims:8.5-20,10 hole-steel ;Tyres:12.00-20 diagonal tyre with 1 Spare tire
Option:12.00R20 radial tyre |
||||||||
|
Electrics
|
Operating voltage:24V,negative grounded
Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light Option:2x180Ah Batteries |
||||||||
|
Oil Tank
|
Square type-300L Aluminum alloy fuel tank
|
||||||||
|
Other Optional
|
Vertical Muffler ;ABS ;Automatic Break Clearance Adjusting Arm ;
Traveling Data Recorder ;Metal Pipeline ;Engine Protective Board |
||||||||
|
Delivery date
|
Within 45 days after receipt advance
|
||||||||
|
Weight
in kg |
Gross vehicle weight 25000
Front axle loading capacity 9000 Rear axles loading capacity 2x16000 |
||||||||
