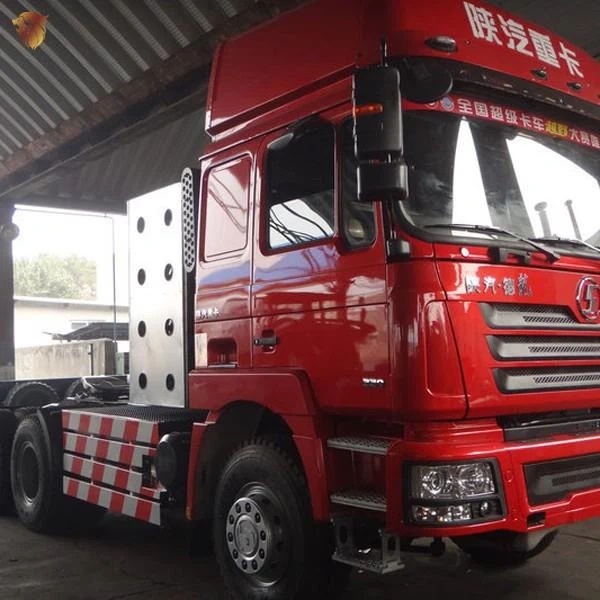

Shacman CNG Tractor Truck
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
High Efficiency is One of Our Goal and Promise to Our Customers.
We will be always with our customers whenever and wherever we are. All problems and questions shall be solved by our end at the first time. Customer priority outstands without any doubt.
Product specification
|
Dimension(Lx W xH)(mm) |
7475×2500×3720mm |
|
GVW (kg) |
≤70000kg |
|
Kerb mass(kg) |
9500kg |
|
Approach/departure angel |
18/66 |
|
Front/rear suspension(mm) |
1525/800 |
|
Max.gradeability(%) |
28 |
|
Enginebrand |
Weichai Engine |
|
Engine model |
WP12NG380E51,380hp |
|
Rated output power |
280kw |
|
Torque(N.m r. p. m) |
1700N.m/1200-1500rpm |
|
Rated speed(rpm) |
1900rpm |
|
Emission Standard |
E-V |
|
Fuel type |
CNG |
|
Displacement(L) |
11.596L |
|
Driving type |
6×4 |
|
Axle number |
3 |
|
Wheel base(mm) |
3775+1400mm |
|
Clutch |
430diaphragm spring |
|
Gearbox |
FAST 12JSD200TA,12 Forward&2Reverse,Manual |
|
Front axle |
7.5T MAN 7500kg |
|
Rear axle |
16TMAN 2×16000kg |
|
Ratio |
4.769 |
|
Steering |
ZFtechnology left-hand drive(LHD) |
|
Frame |
850×300(8+5)mm |
|
Type |
12.00R20,10+1pc |
|
Braking system |
ABS |
|
Tank capacity(L) |
8×140L |
|
Saddle |
90# |
|
Max. speed(km/h) |
95km/h |
|
Color |
Optional |
