3axle Flatbed Van Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Compartments body is made of high strength corrugated steel sheet. Its features are frameless structure, multiple selections, large loading space, reasonable distributed place, X type braced, amounted place for goods, overloading, light weight. There are many kinds of box roof operate conveniently, such as sealed type, push-pull open type, open type, exposure to tent pole type, all of these can meet the customer demand of diversification and individuation.
Product specification
|
Dimension(Optional) |
Axle No. |
Rated Load (kg) |
Tire No. |
Tire Size |
|
|
20ft |
2 |
40000 |
8 |
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
|
|
40ft 45ft 48ft 53ft |
3 |
60000 |
12 |
||
|
40ft 45ft 48ft 53ft |
4 |
75000 |
16 |
||
|
Manufacture |
Qingdao Eleph Industry & Trade Co., Ltd |
||||
|
Wheel Base (mm) |
1310 |
||||
|
leaf-spring Pcs |
10 |
||||
|
Axle |
13/16/18 T |
||||
|
Suspension |
Heavy Duty Mechanic Suspension with Leaf Springs |
||||
|
Main Beam Material |
Q345B manganese plates, automatic submerged arc welded |
||||
|
Brake System |
Dual line braking system with automatic braking system/chambers |
||||
|
Brake Air Chamber |
Double Model |
||||
|
Kingpin |
2' or 3.5' Interchangeable |
||||
|
Landing gear |
28T loading capacity with 80T static lifting capacity. |
||||
|
Platform |
4-6 mm diamond steel plate |
||||
|
Brake System |
Dual Lines Braking System With Automatic Air Chambers |
||||
|
Brake Air Chamber |
Four double and two single chamber |
||||
|
Electrical System |
24V, 7core socket, lights according to European standards. |
||||
|
Mainbeam Size |
Upper plate |
14mm |
|||
|
Lower plate |
16mm |
||||
|
Mid Web |
8 mm |
||||
|
Height |
500-520mm |
||||
|
Tool Box |
1 box of standard tools |
||||
|
Spare tire carrier |
2 sets |
||||
|
Color and Logo |
Depends on the buyer’s requirement. |
||||
|
Pin Height |
According to the height of the tractor saddle. |
||||
|
Painting |
Three coats painting; Any color will be available |
||||
|
Application |
For animal/livestock/coal/grain bulk cargo transport |
||||
|
Box Height |
2M |
||||

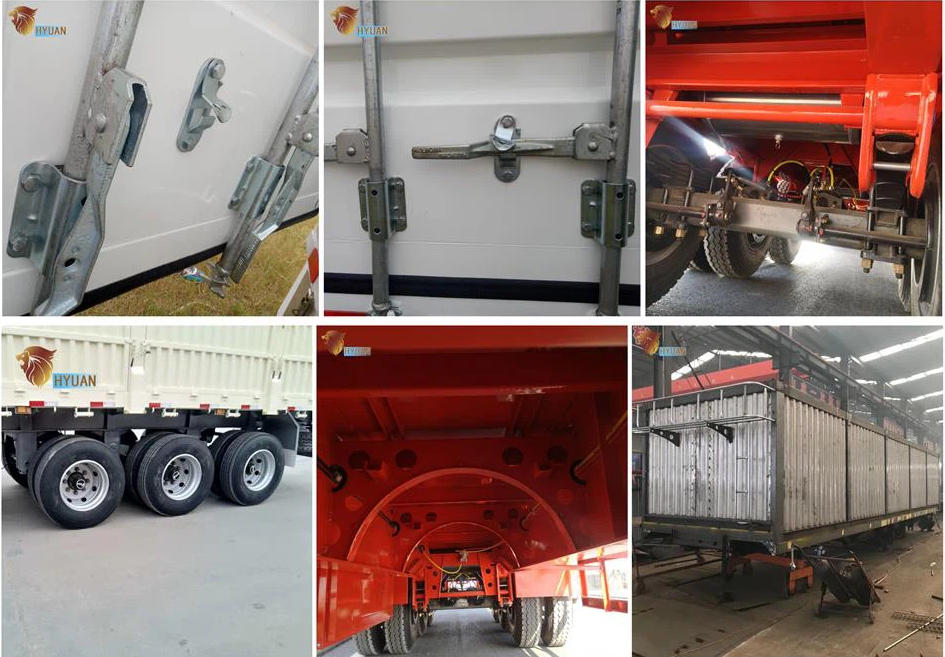

Production details
1)The series vehicle use through-going beam structure, has frame structure with flat type and goosen neck type, also has high integral strength, small weight, beautiful appearance, safe and reliable operation.
2) The series vehicle use advanced manufacture technology , makes automatic submerged-Arc welding for vertical beam, use shot blasting treatment for intergral frame, removes welding stress effectively.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
1) Nude and wax, shipped in bulk or RO-RO.
2) We always use the best packaging solution to decrease transportation cost and give you competitive price.
3) We have our long-term cooperation partner shipping company to ensure the quality and safety of goods in transportation, please don't worry about that!
FAQ
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
Q: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q: Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
Q: How do you transport the semi trailers?
We will transport the trailers by rolling ship or container,we have possess long-term cooperation with ship agency who can provide you lowest shipping fee.
