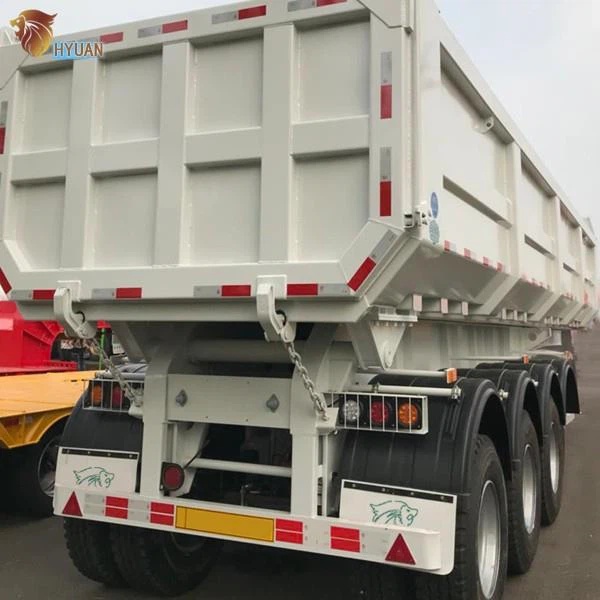

4axles U Shape Rear Dump Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
HYUAN Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.
We use well-known brand axles, FUWA, BPW. It's with high performance, and reliable to use.
Product specification
|
Payload |
30000-80000kg |
|
Tare Weight |
8500-15000kg |
|
Dimension |
11000*2500*3250mm |
|
Main Beam |
Q345 Beam Height 500mm, upper plate 14mm, bottom plate 16mm, middle plate 10mm. |
|
Side Beam |
Q235 Channel steel |
|
Box Thickness |
Bottom: 8mm, Side: 6mm |
|
Painting |
Shot blast to SA 2.5 standard prior to application of primer, polyurethane top coat. |
|
Tool box |
1 piece |
|
Welding |
Long member beams be CO2 Arc welded by 80% penetration on external side and bead. |
| Other parts welded with MAG process | |
|
Axle |
3/4/5/6 pcs*13,16 ton Axle |
|
Suspension System |
Leaf spring suspension/air suspension |
|
Leaf Spring |
90(W)mm*13(thicknessmm*10 layers |
|
Tire |
11R20/12R20/315/80R22.5 |
|
Rim |
8.0-20/9.0-20/9.5R22.5 |
|
King Pin |
JOST king pin bolt in 2' or 3.5 interchangeable |
|
Landing Gear |
Double speed, external 28 ton |
|
Hydraulic Cylinder |
HYVA |
|
Brake System |
Dual line pneumatic brake system with WABCO emergency relay valve |
|
Electrical System |
Voltage: 24v, 7 wire harness |
|
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
Product feature and application
1. The vehicle body with high-quality steel, advanced technology and strict manufacturing made reasonable vehicle structure, reliable performance, easy operation and good looks.
2. The series trailer frame are wearing beam structure, using the straight-stringer or gooseneck.Web height from 400mm to 550mm manganese plate welding, automatic stringer buried welding, using shot peening frame, beams and stringers, penetration welding as a whole.
3. Non-independent suspension uses stamped steel type rigid suspension, made by the tandem leaf springs and suspension mountings; Reasonable structure, strong rigidity and strength, to cushion the impact of load bearing.
Production details

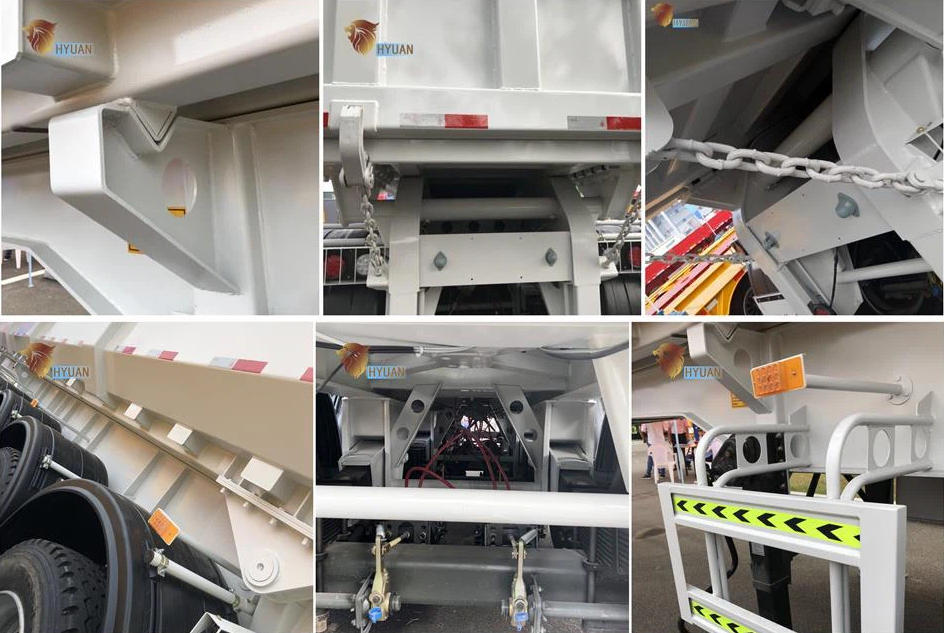

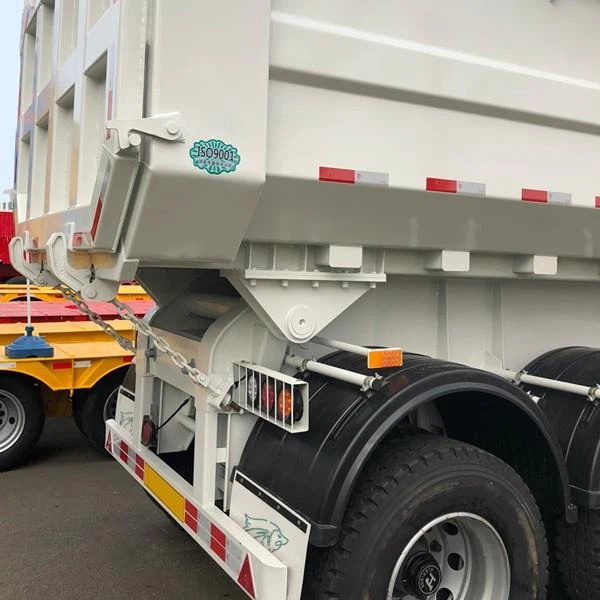

1) Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacit, it is not easy to damage.

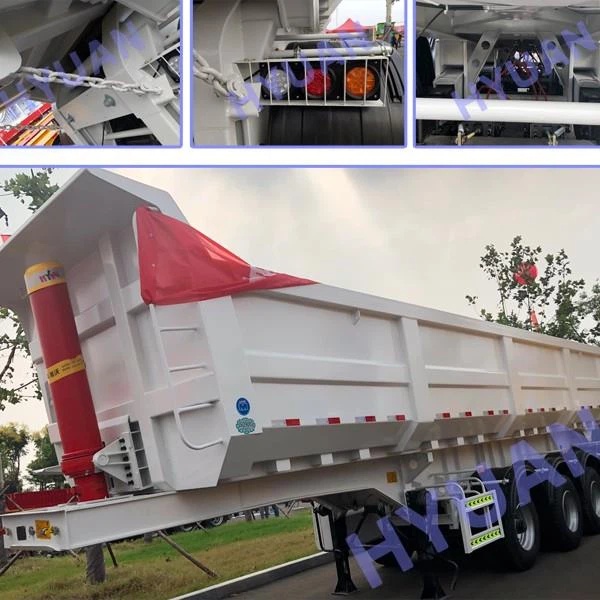

2) Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3) With 4 units vice beam and cross balance beam . The lattice structure of the side door makes the side door more solid
4) Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5) The leaf spring is widened and thickened, the shock absorption effect is good.
6) Strengthened Ribs, unique structure design to maximize the payload.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Choose the best shipping way and save your freight fee,shipping by Ro-Ro or Bulk or Container or Flat Rack.
