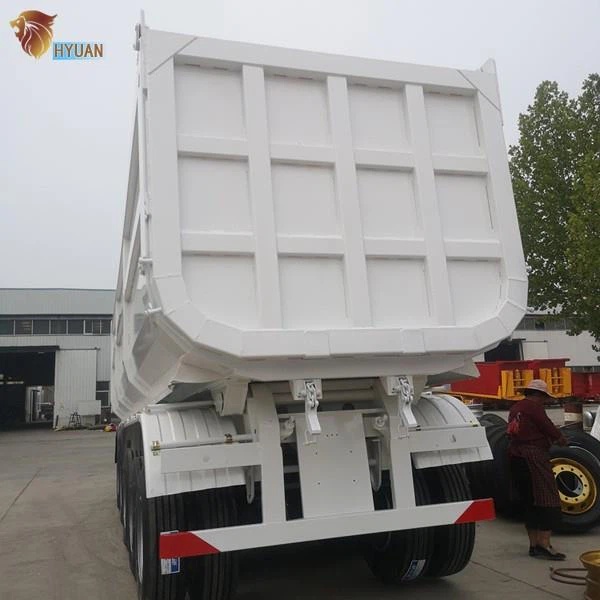

45cbm U Shape Rear Dump Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Tractor Hydraulic Dump Trailer is used to transport of bulk cargo, coal, ore and build materials. One type belong to heavy duty dump trailer, undertake the transport of large mining and engineering task, usually matched with excavator. The other type belong to light and ordinary dump trailer, mainly undertakes the transport of sand, soil, coal and other loose goods, usually matched with wheel loader.
Product specification
|
Detail specification |
||
|
Model |
3 axle 45m3 dump trailer |
|
|
Function |
Transport sand, stone, gravel |
|
|
Dimension |
||
|
Overall Size (L×W×H)mm |
9800×2550×3860mm |
|
|
Inner Size (L×W×H)mm |
8500×2330×2000mm |
|
|
Wheel base |
6870+1310+1310mm |
|
|
weight |
||
|
Payload |
68,000kg |
|
|
Tare weight |
Approx12,000kg |
|
|
G.V.W.R. |
Approx 80,000kg |
|
|
Body details |
||
|
Main beam |
Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm. |
|
|
Body thickness |
6mm |
|
|
Bottom thickness |
8mm |
|
|
Hydraulic System |
Full set of HYVA Hydraulic System 202 |
|
|
Frame |
||
|
Axle |
heavy duty, 3×13Ton capacity, FUWA brand |
|
|
Suspension |
Leaf spring suspension, 90mm×16mm×10pcs |
|
|
Tire |
12R22.5 12units Chengda Brand |
|
|
Kingpin |
50mm/90mm removable |
|
|
Landing gear |
Yahua brand, 28ton, double speed, heavy duty |
|
|
Tool box |
1pcs |
|
|
Spare wheel carrier |
2pcs |
|
|
Electrical system |
||
|
Voltage |
24Volt |
|
|
Receptacle |
7 way socket SAE standard,China |
|
|
Front marker lamp |
white |
|
|
Side marker lamp |
white&red |
|
|
Rear lamp |
red |
|
|
Turn signal lamp |
Amber |
|
|
Wiring |
Electric cable protected by PVC conduit on main frame |
|
|
Brake system |
||
|
Brake |
Dual line pneumatic brake,SAE hose and connector,no ABS |
|
|
Brake air chamber |
Six big chamber |
|
|
Painting |
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um |
|
|
Color |
As customer requirement |
|
Product feature and application
Tractor Hydraulic Dump Trailer----According your needs, you can choose BPW axle or FUWA axle or other brand axle, air suspension or leaf spring suspension.
The main parts are processed by advanced equipment, and the longitudinal beams are fully automatic submerged arc welding.

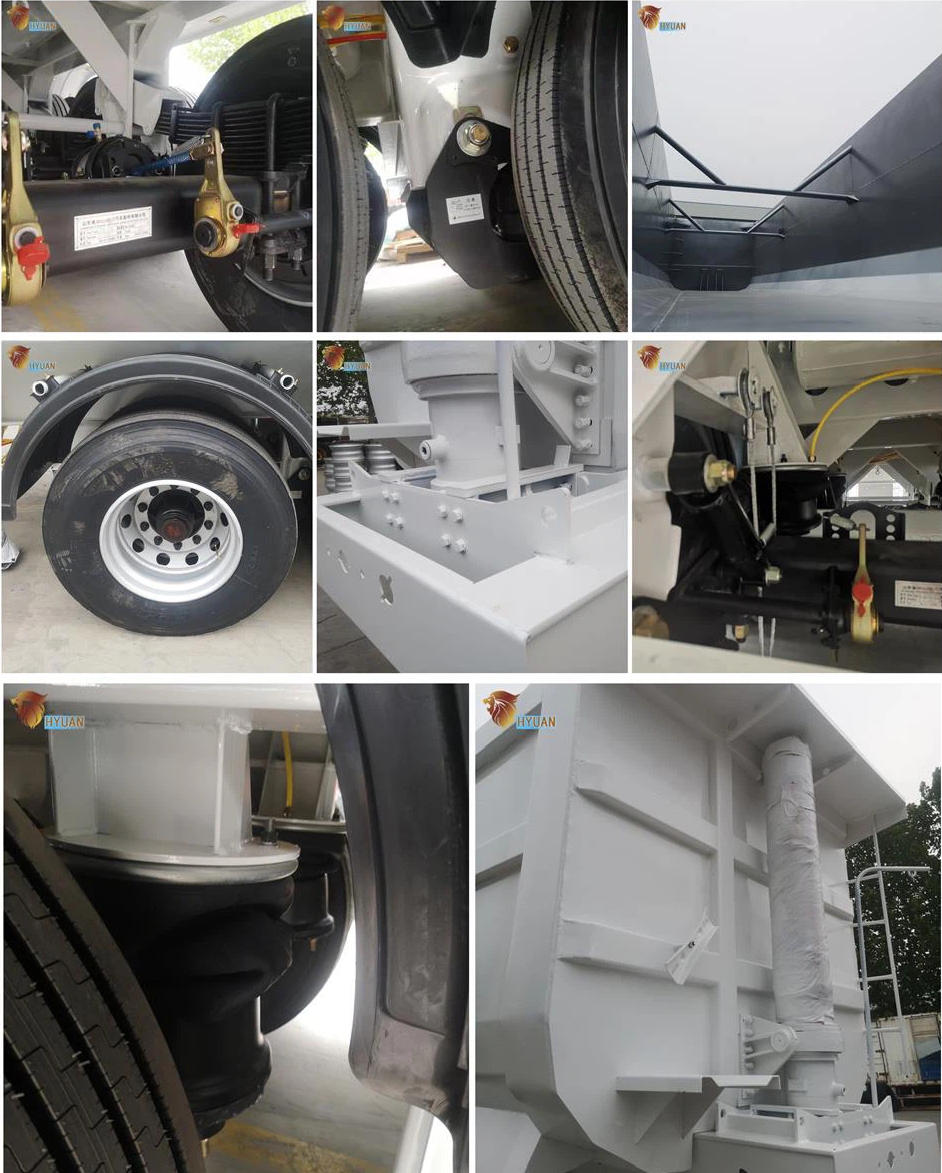

Production details
---Torsion - resistan of side beam and Main Beam are with "I" high strengh steel. more durable than normal trailer steel, ensure low bed trailer driving stability and handle bed roads.

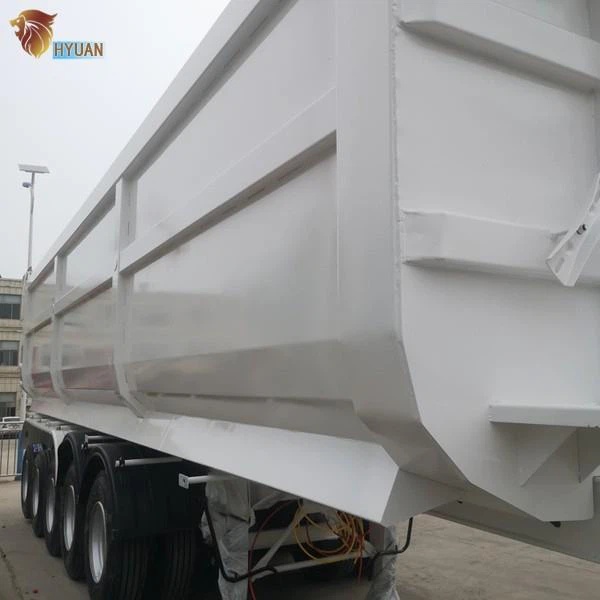

---Heavy duty type box: U shape,Square box shape, manganese plate butt welding, This design that ensure the support the heavy duty marchine safely.
---Stability when loading heavy duty marchine. The QUEST dump trailer with HYVA hyraulic cylinder can equipped with extra legs on the rear of trailer. This ensures loading machines more safety.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Choose the best shipping way and save your freight fee,shipping by Ro-Ro or Bulk or Container or Flat Rack.
Our service
- Providing high quality and reliability products, free of charge during the warranty period for spare parts.
- 24 hours corresponding your feedback.
- Technicians fully supports on technology and maintenance.
- With a variety of trailer accessories and delivery within 3 days.
- Perfect and economic transportation arrangement
