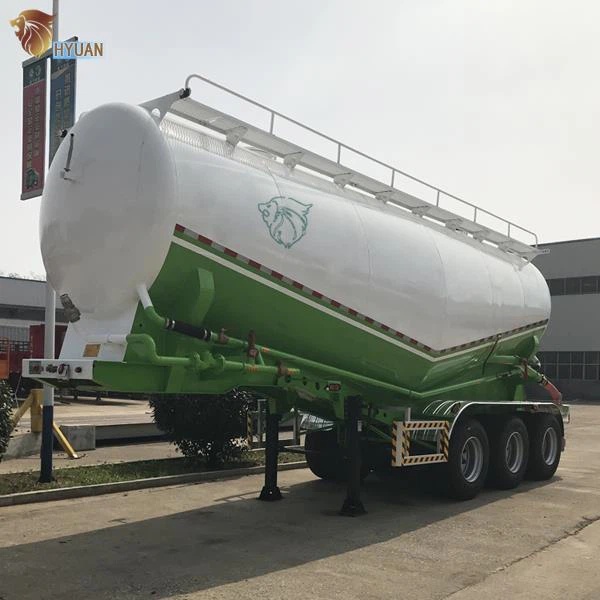

Heavy Capacity V Shape Cement Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Bulk cement trailer manufacture consummate with quality raw material and parts, good performance and durable. This trailer can carry bulk cement, grain, sodium bicarbonate and any bulk powder materials. There are 40ton–80ton loading capacity, V type, W type and tipping type for your choose. We also support Customized design, it helps getting most suitable vehicles.
Product specification
|
Specifications of Tanker Body |
|
|
Dimension |
12000mm*2490mm*3990mm( Exact size depends on the final design) |
|
Tare weight kg |
About 11800KGS-13000KGS |
|
Tank capacity (CBM) |
30cbm-60cbm(Volume optional) |
|
Shape |
Optional(v or w shape) |
|
Compartments |
One or two compartment |
|
Tanker Body Material |
1. T622JJ carbon steel 2. 5XCT4 aluminum 5454 |
|
End Plate |
4mm or 5mm T622JJ carbon steel 5mm or 6mm 5XCT4 aluminum 5454 |
|
Rim |
8.00-20/8.5-20/8.8-20/9.0-22.5 China Brand |
|
Tire |
12R22.5/11R22.5/13R22.5/11.00R20/12.00R20( brand can be Optional) |
|
Engine |
Weichai 4105 Engine |
|
Manhole Cover |
500mm carbon steel or aluminum alloy manhole |
|
Bottom Valve |
3''/ 4” disc valve |
|
Discharging Valve |
Diameter is 3 or 4 inch |
|
Discharging Pipe |
4” rubber hose, 2 pcs, 6m/each |
|
Air compressor |
10 m3,12m3 |
|
Diesel Engine |
Weichai Huafeng, Tianhe 4102/4105 |
|
Main Beam |
Welding design or Special design, connected by bolts and nuts. Material: Q345 carbon steel
Height 500mm |
|
Axle |
2 or 3 axles, BPW/FUWA brand(Optional) |
|
Landing Gear |
JOST(D200T)or China brand 28T(two speed) |
|
Brake System |
WABCO Valve with big chamber |
|
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
|
Suspension |
Mechanical suspension or Air suspension |
|
Leaf Spring |
90(W)mm×13(Thickness)mm×10(Layer) or 100mm×12mm×12 |
|
Rear ladder |
Dismountable |
|
Lights |
Turning Light, Side Marker Light, Tail Light |
|
Voltage |
24V |
|
Receptacle |
7 ways (7 wire harness) |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
ABS |
Optional |
|
Accessories |
One standard tool box |
|
Shipping Terms |
By Bulk Cargo Carrier, RORO or 40HQ Containers |
Product feature and application
(1) Fast unloading within 40mins
(2) Low residual rate less 100kgs
(3) Light tare weight with high tensil steel material
(4) High loading rate >98%
(5) Customized design for different countries clients requirements, 20-70cbm available, 2 axles, 3 axles, 4 axles optional

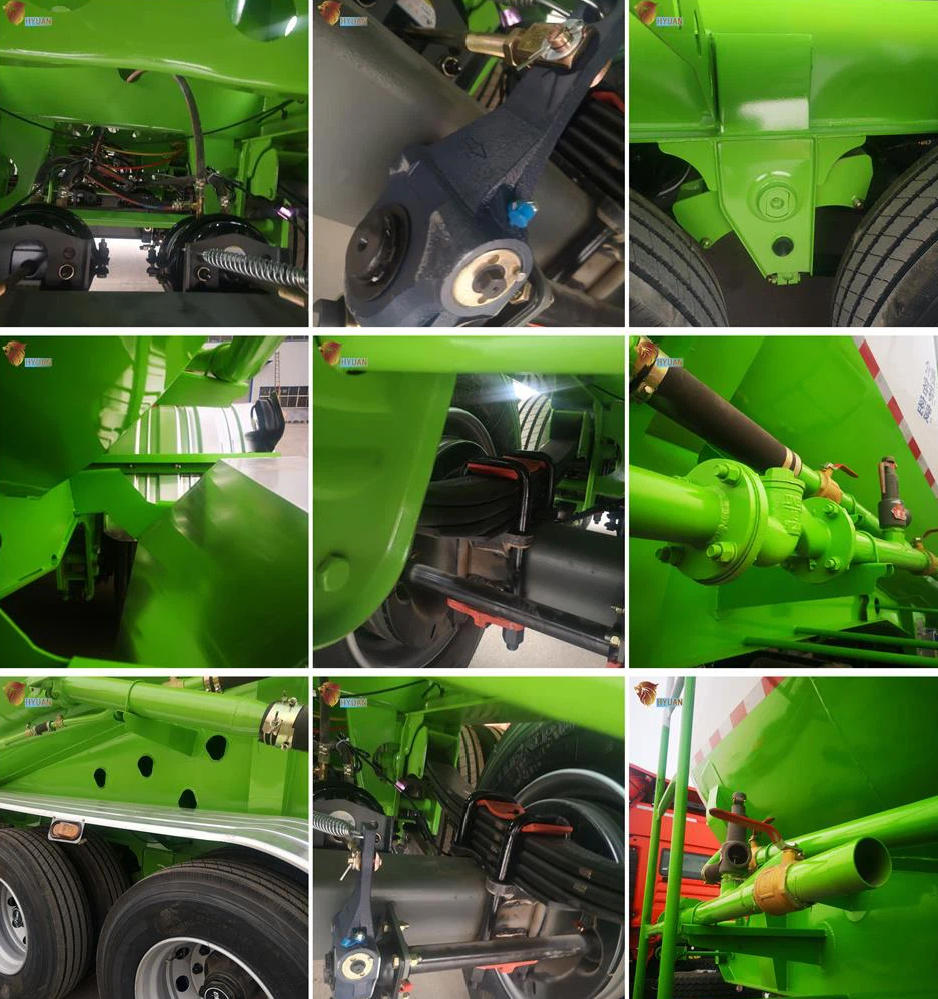

Prodection details
(1) Specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
(2) High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
(3) High performance premiun non-asbestos brake linings, extend service life
(4) Easy for ABS installation
(5) Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
(6) New tight fit hub cap have O rings, high property for sealing
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Our Services
● More than 20 years professional design and production experience.
● Choose Regular manufacturers purchase materials,like Q235 baoshan.
● Use Domestic first-class production equipment.
● Famouse brand trailer parts used, like bpw/ fuwa axle,triangle/ double star/ double coin and so on tires, Air pressure test for each tanker.
● Strict quality control system ensure that each semi trailer is qualified.
Deliver,shipping and serving
Mode of transport: bulk cargo, ro-ro transport, container transport.
We can arrange the most cost-effective transportation solution according to the number of semi-trailers required by customers.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
