45cbm V Shape Cement Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Bulk cement trailer manufacture consummate with quality raw material and parts, good performance and durable. This trailer can carry bulk cement, grain, sodium bicarbonate and any bulk powder materials. There are 40ton–80ton loading capacity, V type, W type and tipping type for your choose. We also support Customized design, it helps getting most suitable vehicles.
Product specification
|
Trailer Model |
Cement Bulker Trailer |
|
Specifications |
|
|
Overall Dimension |
11000*2500*3850mm |
|
Volume |
40 CBM |
|
Wheel Base(mm) |
8000+1310+1310 |
|
Semi Trailer Chassis |
|
|
The material of main beam |
The height of the beam is 500 mm, upper plate is14mm, down plate is16mm, middle plate is 8mm |
|
Tank thickness |
5 mm, end/front 6mm |
|
Axle Brand |
Standard 13 ton FUWA brand |
|
Axle Number |
3 units |
|
Suspension system |
Common Mechanical suspension |
|
Leaf Spring |
-/10/10/10 leaf spring suspension |
|
Landing Gear |
Standard single speed 28ton |
|
Tire Type and quantity |
12R22.5 tubeless tires, taitong brand 12 pieces |
|
Compartment |
One, With 2 manholes |
|
Traction Pin |
50mm or 90mm |
|
Spare Wheel Carrier |
2 piece |
|
Tool Box |
1 standard |
|

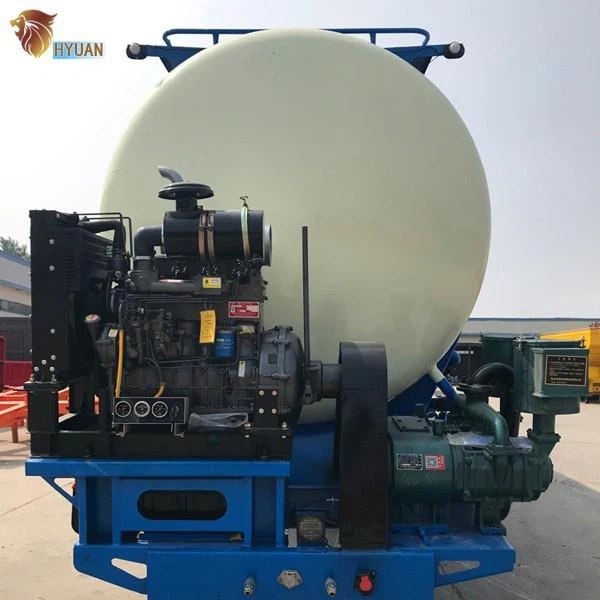

The diesel engine |
Weichai Tianhe 4102 |
|
Air compressor |
Bohai 12 CBM/min |
|
Electrical & Paint |
|
|
Brake system |
Dual Line braking system |
|
Brake air chamber |
Six double air chamber, wabco emergency valve |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) 3. One set 6-core standard Cable. |
|
Side Guard |
According to customer’s requirement |
|
Painting |
Color by customer’s requirement |
|
Packing&Shipping |
|
|
Packing |
Polish with wax before shipping |
|
Pattern and Logo |
According to customer’s request |
|
Shipping Terms |
Shipped by bulk cargo ship, Roll-roll ship or in container |
Product feature and application
Factory direct tri axle bulk cement tanker semi trailer
V-shaped tank that allows complete discharge
Unique to our semi trailer is the V-shaped tank that allows complete discharge of the cement, with only less than 1% being left in the tank. Its reliable, fully closed design keeps moisture away from reaching the contents inside the tank.
High strength, long-lasting and bright look
The inner surface of the tank is sandblasted to recieve a corrosion -resistant cost. Polyurethane paint forms a strong bond to the tank surface, giving an attractive, long-lasting and bright look.
Prodection details
(1) Higher working pressure: Testing 3bar, working 2.5bar, >15m higher delivery height suitable most silo.
(2) Faster unloading: >1.5ton/min, shorter compressor working time, help compressor longer life and lower fuel cost.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Our Services
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--Obtaining a satisfied smile!
(1) We can do the designs according to the customers'requirement
(2) We can offer you the high quality & reasionalble price
(3) We can offer your a good after-sell service
(4) We have strong professinal design team
(5) Promptly delivery. small order is welcome
Deliver,shipping and serving
Carbon steel or aluminium tanker truck trailer. Nude package with wax, Container, Ro-Ro or Bulk cargo ship for bulk traielrs for sale, it also can as the customer requirements.
