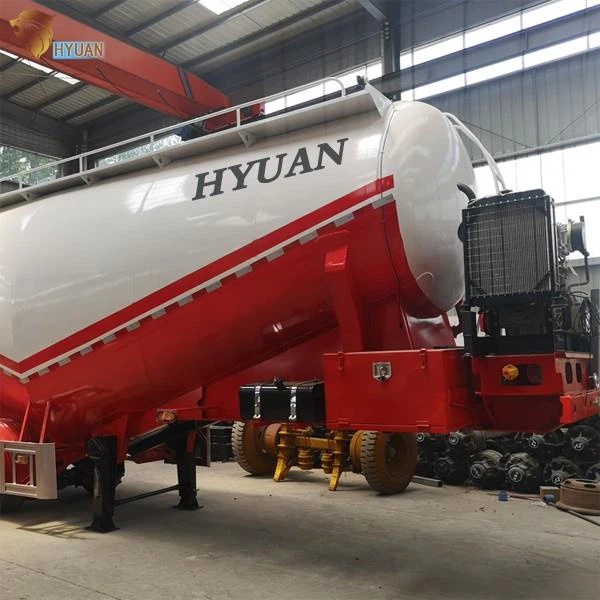

3axles V Shape Cement Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Cement tank trailer body made of high strength wear-resistant steel, lightweight and durable.Dual alloy lower tare weight. No guide plate structure, light weight, low residue. Cement tank trailer is used for the transportation of dry powder materials such as fly ash,cement powder, lime powder and mineral powder, and pneumatic unloading. For cement tank trailer no matter its material or accessories is excellent quality like diesel engine, air compressor, axle, suspension, Landing gear. they are famous brand accessories of china and world.
Product specification
|
Specifications of Tanker Body |
|
|
Dimension |
12000mm*2490mm*3990mm(Exact size depends on the final design) |
|
Tare weight kg |
About 11800KGS-13000KGS |
|
Tank capacity (CBM) |
30cbm-60cbm(Volume optional) |
|
Shape |
Optional(v or w shape) |
|
Compartments |
One or two compartment |
|
Tanker Body Material |
1. T622JJ carbon steel 2. 5XCT4 aluminum 5454 |
|
End Plate |
1. 4mm or 5mm T622JJ carbon steel 2. 5mm or 6mm 5XCT4 aluminum 5454 |
|
Rim |
8.00-20/8.5-20/8.8-20 China Brand |
|
Tire |
12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(Brand can be Optional) |
|
Engine |
Weichai 4105 Engine |
|
Manhole Cover |
500mm manhole cover .3 sets with 3 breather valve |
|
Bottom Valve |
1 set |
|
Discharging Valve |
Diameter is 3 or 4 inch |
|
Discharging Pipe |
4” rubber hose, 2 pcs, 6m/each |
|
Air compressor |
10 m3,12m3 |
|
Discharge valve box |
totally-enclosed |
|
Main Beam |
Welding design or Special design, connected by bolts and nuts. Material: Q345 carbon steel |
|
Axle |
2 or 3 axles, BPW/FUWA brand（Optional） |
|
Landing Gear |
JOST(D200T)or China brand 28T(two speed) |
|
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
|
Suspension |
Mechanical suspension or Air suspension |
|
Leaf Spring |
90(W)mm×13(Thickness)mm×10(Layer) or 100mm×12mm×12 |
|

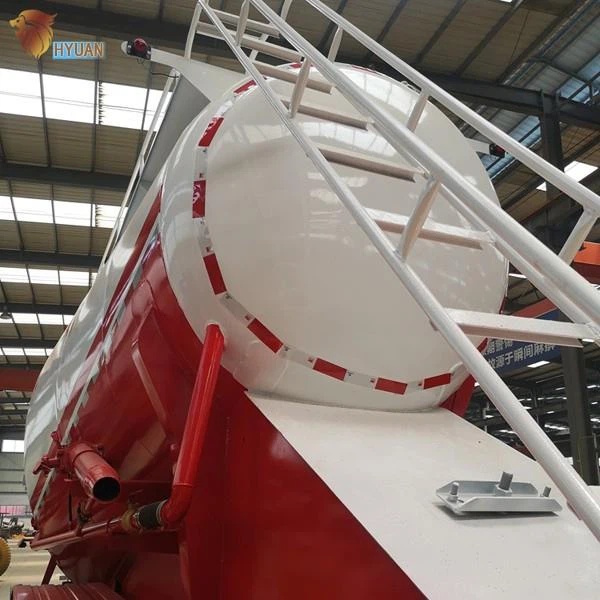

Rear ladder |
dismountable |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
ABS |
Optional |
|
Accessories |
One standard tool box |
|
Shipping Terms |
By Bulk Cargo Carrier, RORO or 40HQ Containers |
Product feature and application
(1) Frame and traction pin: The frame is a space frame type low alloy steel welded structure. The frame is welded by two T-shaped longitudinal beams and beams to support the load. Below the front of the frame there are traction pins and traction pin plates that are connected to the tractor. The specifications are 50 or 90. The towing pin is assembled and easy to replace. An air brake connector and a wire connection socket are mounted on the front beam of the frame. Lighting or signaling devices are installed on the front and rear sides of the frame.
(2) Suspension system: The lower part of the stringer is welded with a suspension device support, and the front lower part has a support device support. The suspension system is a three-axis leaf spring suspension suspension, which is used to support the load and absorb the vibration of the train. The leaf spring suspension system is fastened to the axle body by U-bolts.
(3) Axles and wheels: Three axle assemblies of the same structure are mounted under the suspension system. The axle is a square tube axle, and the axle body is provided with a platform for mounting a leaf spring suspension and a bracket for mounting the brake air chamber. The shaft head is used to mount wheels, hubs and brakes.

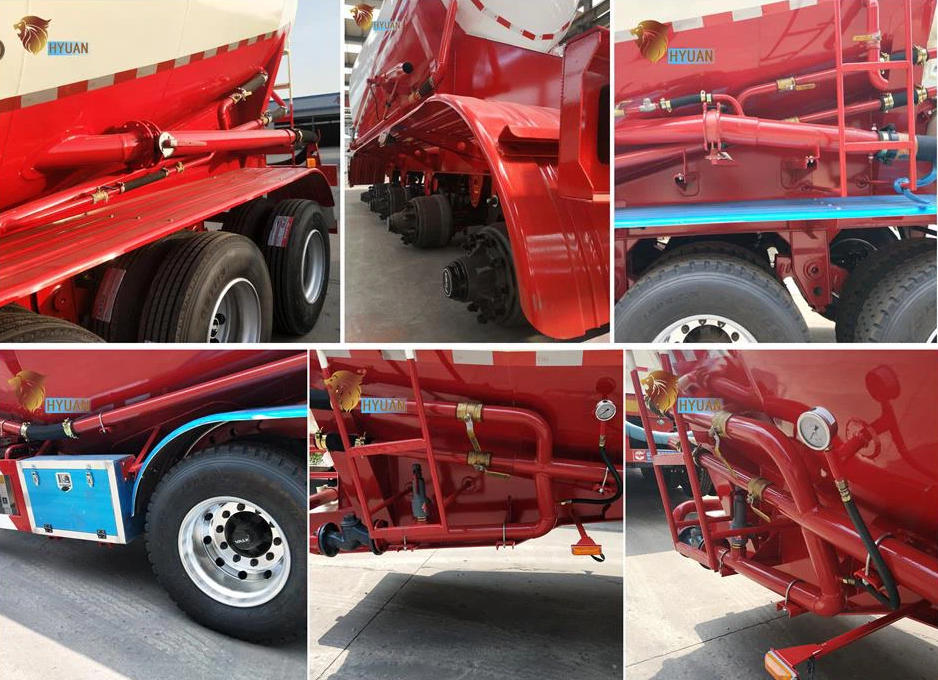

Prodection details
We make our cement tank trailer by best material and parts, to ensure the quality of the products.

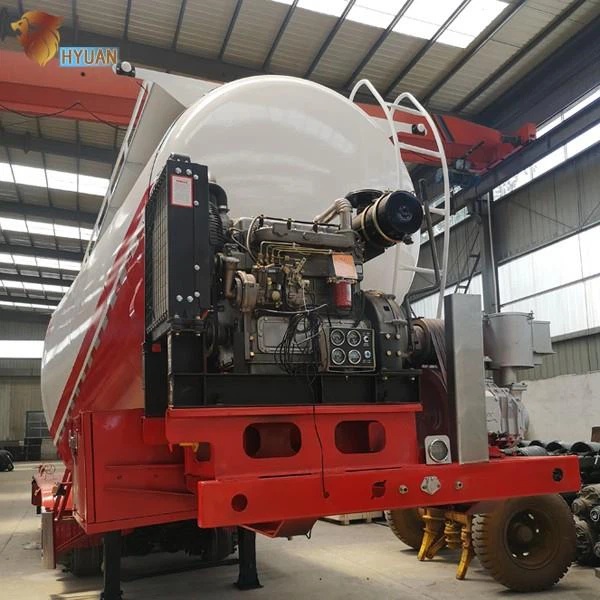

Diesel Engine is HUAFENG brand, model is 4102 for 60tons loading capacity, and 4105 for 70-80tons cement tank trailer.
Air compressor is BOHAI brand, model will be 12cbm/min for 60tons cement bulker trailer and 14cbm/ min optional.
Tire brand is Double Coin or Triangle, both very good brand in China, wear resistant and will save a lot of cost for you.
Traction Pin is changable, can be best brand of JOST or Chengda brand.
Landing Gear can be double speeds and single speed, JOST brand and FUWA brand optional.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Packing: spray wax.Professional packing by bulk ship or Ro- ro ship , to help customers save the shipment fees as much as we can.
FAQ
Q1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
Q2. Is your company a factory or a trading company?
We are a factory with 15 years of experience in producing trailers and can accept OME services.
Q3. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q4. When is the delivery time?
The delivery time is within 15 workdays after we received your prepayment.
