Product  Descriptior

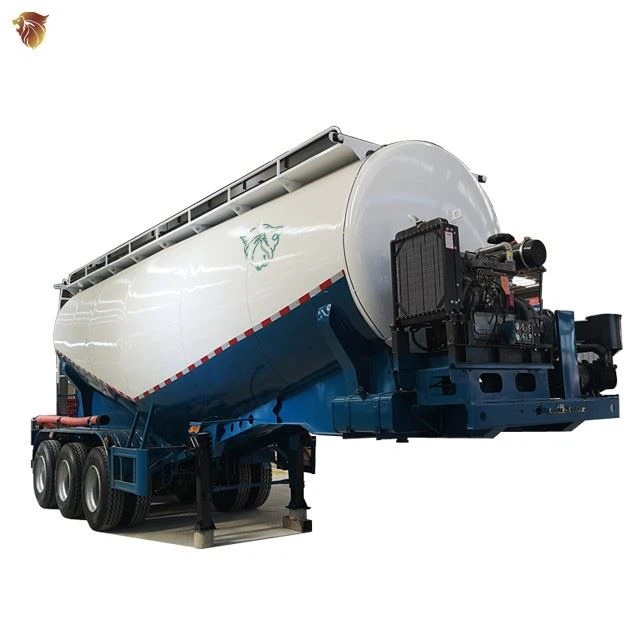

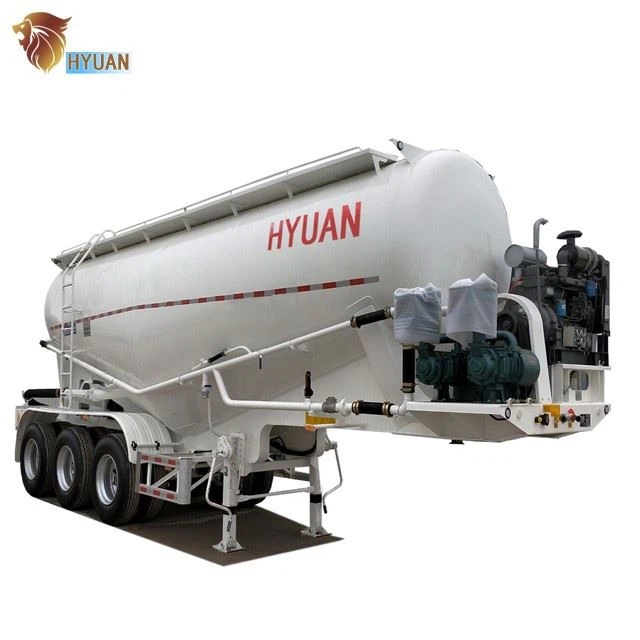

Cement Tank Trailer

Tank Body

Shape

Optional ( One Silo with V type or Two ,Three Silos Design)

Dimension

12000mm*2490mm*3990mm ( Exact size depends on the final design)

Tare weight

About 7500KGS-15000KGS

Total Volume(m3)

50m³

Tanker Body Material

5mm or 6mm/ Q235 carbon steel

End Plate

5mm or 6mm /Q235 carbon steel

Diesel Engine

WEICHAI ,Tianhe 4100/4102 or other brand

Compressor

BOHAI 10m³/12 m³or other brand

Manhole Cover

Carbon steel or Aluminum 500mm

Discharging Valve

Diameter is 3 or 4 inch (Material: Aluminum )

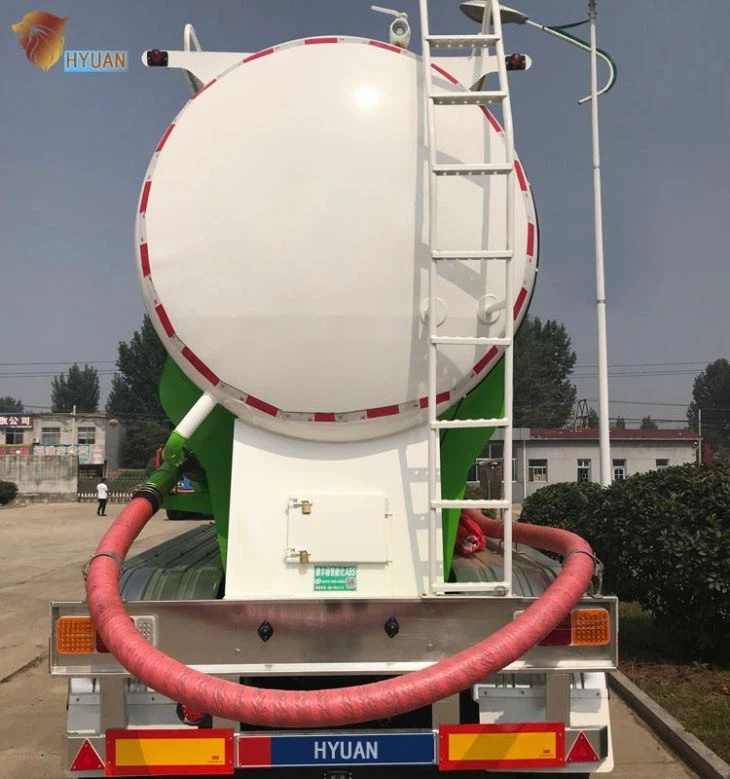

Discharging Pipe

3 or 4 inch rubber hose, 1pcs, 6m/each

Cat Walk

With (Common model or special design)

Chassis

Main Beams

Welding Design ,Q345 carbon steel

Axle

 3 axles,13T, BPW/FUWA/HUAJING brand

Landing Gear

JOST (D200T)or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type /Air Suspension

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tanks.

Rim

9.00-22.5/8.00-20/8.5-20 China Brand

Tire

12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional

ABS

Optional

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

Shipping Terms

By Bulk Cargo ,RORO
