42cbm Asphalt Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction

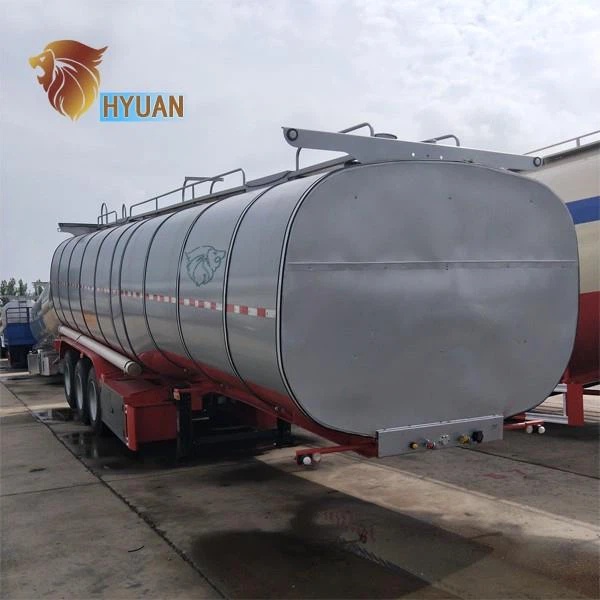

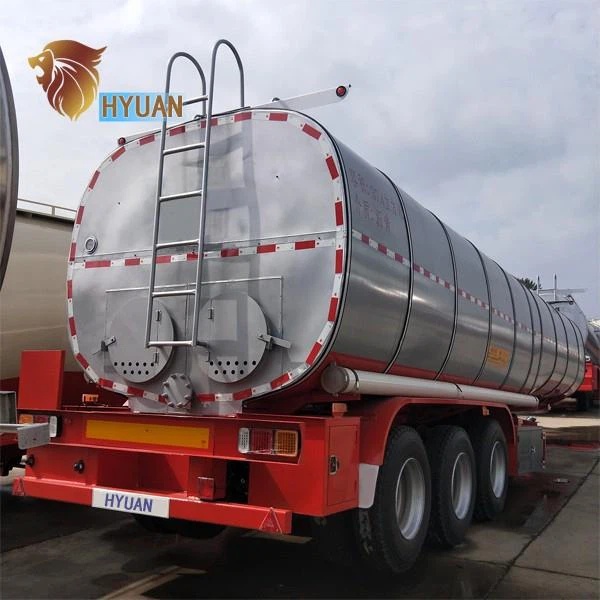

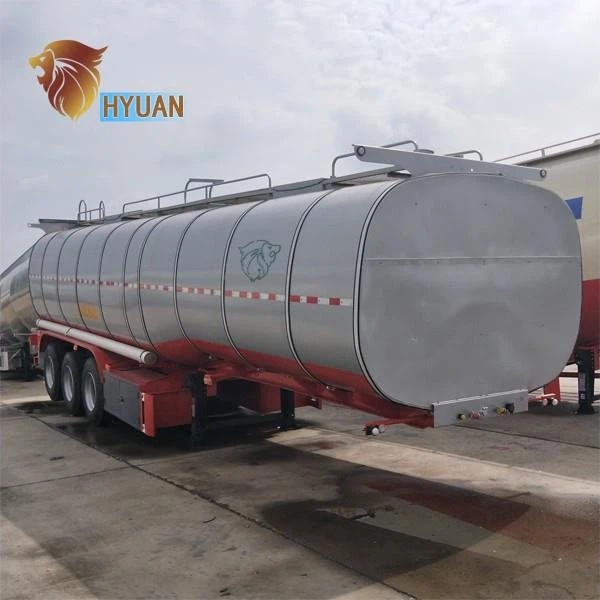

HYUAN Bitumen Tanker Trailer, adopt advanced design concept. We can customized the tankers for you according to your request.
We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service. Like JOST, WABCO braking valve etc. We use famous German WABCO braking valve will definitely shorten the Braking Distance. To make the safety of the trailers and the drivers.
Product specification
|
Assembly Name |
Composition |
Specifications |
|
Chassis |
Main beam |
Q345Steel; The height of the beam is 500mm; Middle plate is 8mm; Down plate is 16mm. |
|
King Pin |
2”or 3.5”traction pin |
|
|
Dimensions(L*W*H) |
11980*2500*3800mm |
|
|
Tank body |
Tank body &end plate |
Q235/5mm steel &6mm steel sheet |
|
Manhole cover |
500mm manhole cover.2 sets with 2 breather valve |
|
|
Discharge valve &pipe |
4” disc valve&4” seamless steel tube |
|
|
Bottom valve |
1-2 sets of aluminum API pneumatic bottom valve |
|
|
Suspension |
Suspension type |
Common mechanical(Option Air Suspension) |
|
Steel Spring |
10/10/10 |
|
|
Running system |
Axle |
3 axle Fuwa Brand |
|
Wheel Rim |
9.0-22.5 steel wheel rim |
|
|
Tire |
Spe:12R22.5; Number of Tire:8 pieces |
|
|
Brake system |
Brake Chamber |
6 big chamber |
|
Brake Valve |
KTL Brand/WABCO |
|
|
Brake system |
Dual Line Brake system |
|
|
Other |
Tool box |
1 set standard tool box |
|
Light |
Tail lamp with turn signal,brake light & reflector, side lamp etc. |
|
|
Painting |
1 coat of anticorrosive prime, twice coats of final paint. |
|
|
Spare Tire Carriers |
2 pieces |
|
|
Leading gear |
28T Manual operating, Heavy duty landing gear |
|
|
Weight |
Tare Weight |
9000Kg |
|
Loading Capacity |
42000 liters |
|
|
Axle weight load |
13T |
Product feature and application
1) If welding line should be beautiful and strong.this process will be checking by the quality inspector of factory
2) Surface should be clean and looks beautiful.
3) Brake system should be adjust before the product leave the factory
4) Lamp should my checking before leave the factory
5) All the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory

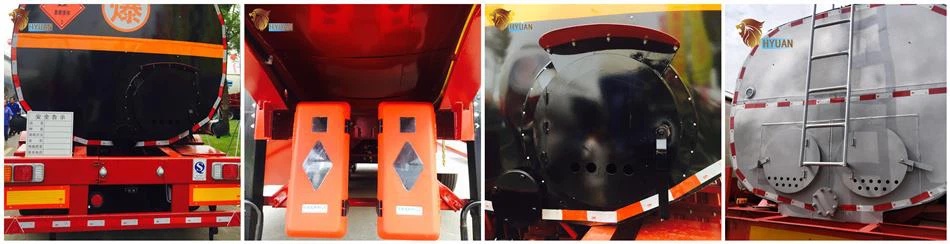

Production details
FUWA axle:
Famous Brand Axle support Trailer Duralbe and High Truck Attendance Rate.
Material:
China Best Q345B-T700 support Stronger Trailer Skeleton and tank body.
Parts:
Good Quality Parts Support Safty and Longtime Use.
Bottom Valve:
Every Compartment Equipt with Bottom Valve,Protect the over rolled tanker from leakage to ensure safety.
Emergency Valve:
Fast Response,Low Failure support Safety and Protect Tire Longer Timer Use.
