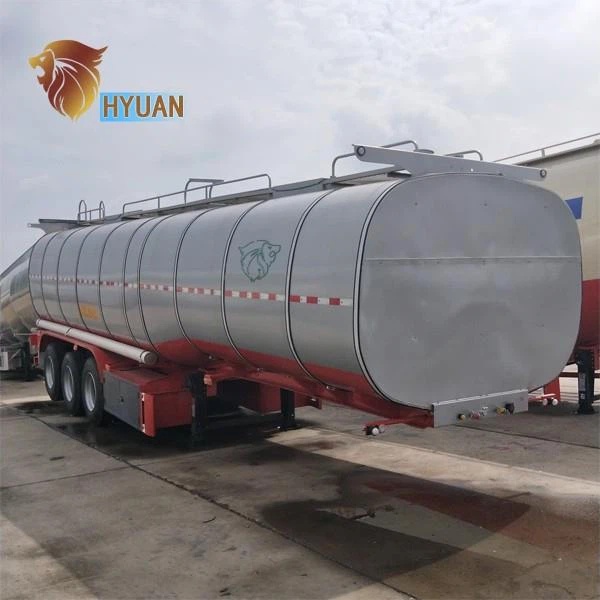

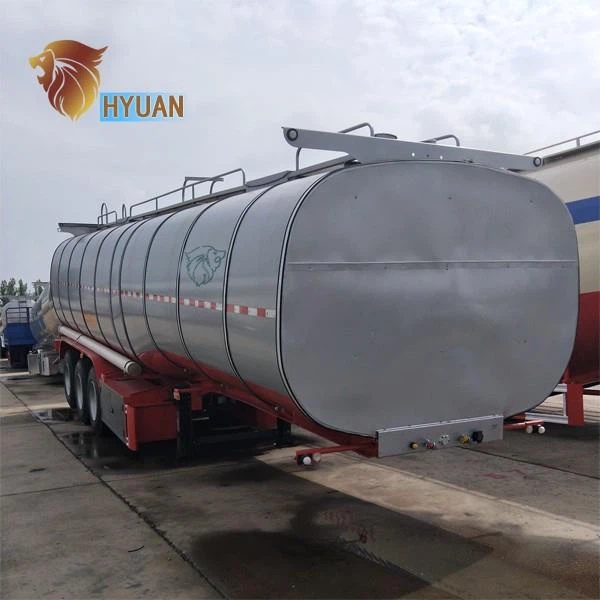

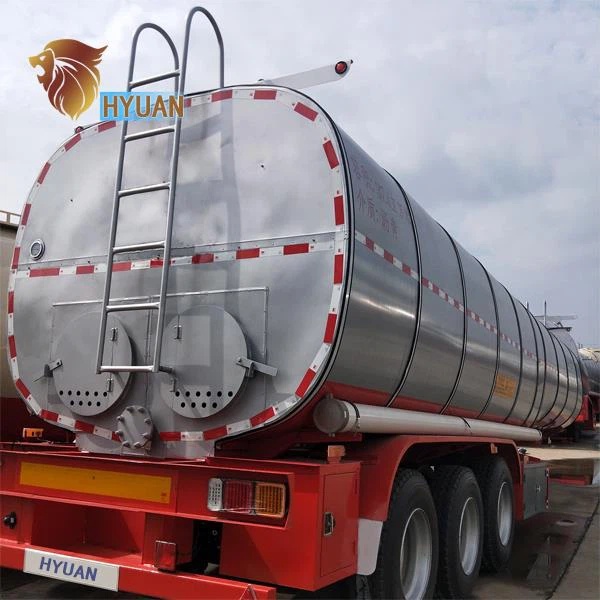

3 Axles Asphalt Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
The fuel tank semi trailer we offer is highly demanded for their safe use. These products are recommended for their availability in various sizes. We use advanced world famous brand components in pneumatic parts, such as BPW, WABCO, JOST etc.
Product specification
|
3 Axles Fuel Oil Asphalt Bitumen Tank Trailer for sale |
|
|
Overall Dimension(Lx W xH)(mm) |
11900x2500x3900mm |
|
Tank capacity(CBM ) |
40cbm |
|
Loading Weight(KG) |
50000kg |
|
Medium |
Fuel/other liquid(corrosive materials) |
|
Tank body thickness(mm) |
carbon steel Q235 4mm steel |
|
End plate |
carbon steel Q235 6mm steel |
|
Main beam |
Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
|
Axle Brand |
FUWA/ZY 13ton axle |
|
Axle Number |
3 |
|
Compartment |
3 |
|
Manhole covers |
500mm manhole cover .5 sets with 5 breather valve. |
|
Discharge valve |
4’change into 3’ |
|
Dischage pipe |
4’seamless steel tube |
|
Discharge valve box |
totally-enclosed |
|
Spill Discharges |
1at the rear |
|
Bottom valve |
1 set |
|
Rear ladder |
dismountable |
|
Walkway |
on the top |
|
Top ladder |
Standard |
|
Pedal |
anti-skid pedal |
|
Suspension system |
Leaf spring suspension |
|
Steel Spring |
10/10/10 leaf spring suspension |
|
Tire Type and quantity |
12R22.5 (12 units) |
|
Traction Pin |
90mm |
|
Spare Wheel Bracket |
2 pieces |
|
Rims |
Steel |
|
Tool Box |
1 Standard |
|
Rubber pipe |
5m for each side |
Product feature and application
1. Large-span, dual-robot welding workstation for automatic welding of all appearance welds in tanks;
2. The welding has high continuity, the pass rate of weld X-ray flaw detection is 100%, and the appearance is beautiful;
3. CAE stress analysis can identify the strength of components in advance, and effectively optimize the structure in advance. It can ensure the most reasonable material and the best self-weight.
4. The Body is formed once, without internal damage of the plate.

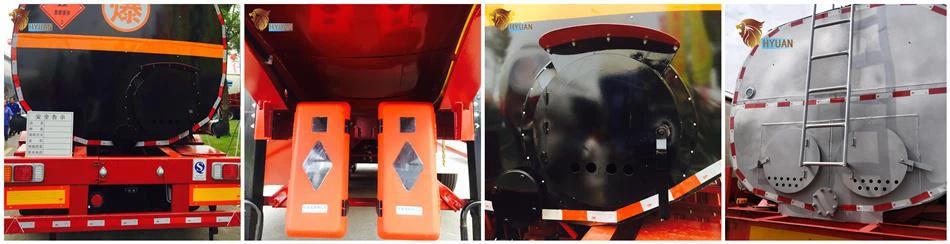

Production details
1) Low residual rate: The design and reasonable parameter matching of the canvas belt type fluidized bed makes the residual rate lower, the unloading rate is quicker, saves the cost and improves the efficiency.
2) Wider transportation scope: The body of the shell has been applied for the national patent, and the new type of tank body has guaranteed the effective volume to reach 98%, and it can create more value than the same kind of product.
3) Lightest weight: High strength steel tank substantial weight loss, according to the different road conditions, the frame for different optimization design, maximum limit reduces the weight and the use of ultra light and high performance air suspension, high quality light weight of the axle, vehicle quality industry is the lightest
