40000 Liter Asphalt Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction

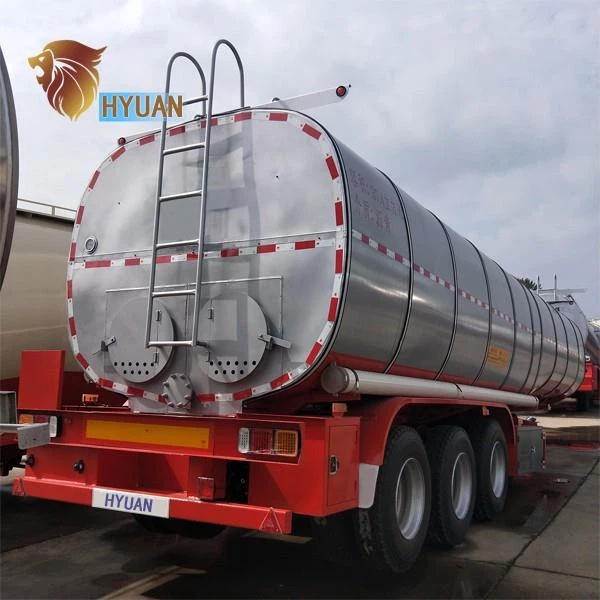

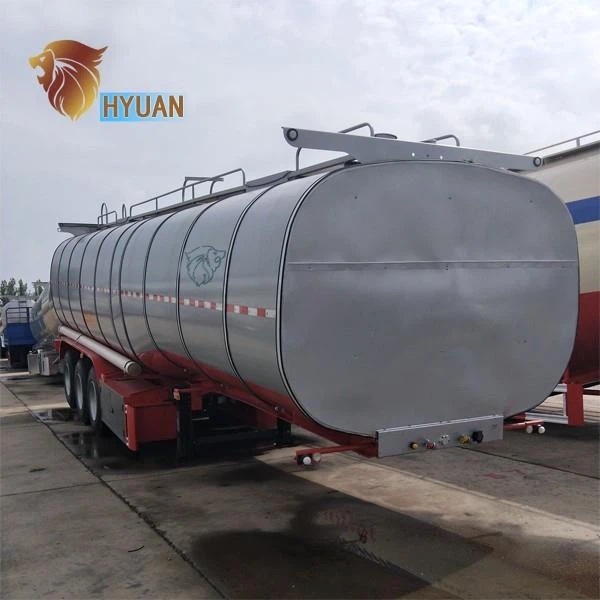

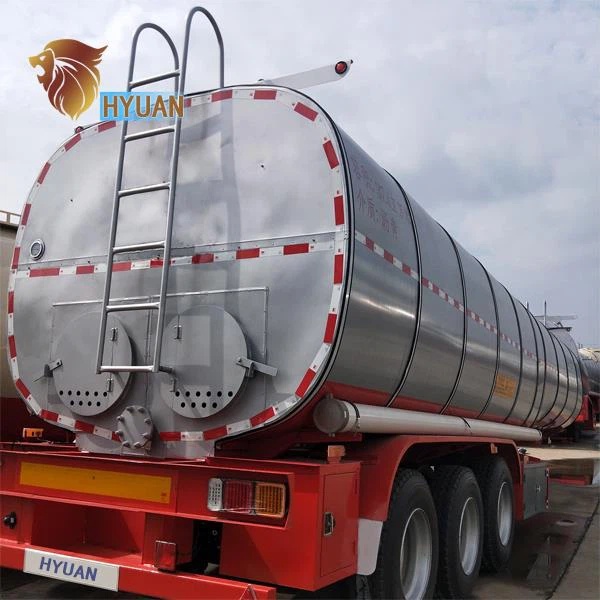

HYUAN Bitumen Tanker Trailer, adopt advanced design concept. We can customized the tankers for you according to your request.
We adopt famous brand parts for our tank trailer, it save costs & ensure long-time service. Like JOST, WABCO braking valve etc. We use famous German WABCO braking valve will definitely shorten the Braking Distance. To make the safety of the trailers and the drivers.
Product specification
|
Oil Tank Trailer |
|
|
Product Name |
Oil Fuel Tank Trailer |
|
Overall Dimension(Lx W xH)(mm) |
11900x2500x3900mm |
|
Tank capacity |
40000L to 60000L |
|
Loading Weight(KG) |
45 Tons to 70 Tons |
|
Medium |
Fuel/other liquid |
|
Tank body thickness(mm) |
carbon steel Q235 5mm steel |
|
End plate |
carbon steel Q235 6mm steel |
|
Main beam |
Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
|
Axle Brand |
BPW/FUWA 13ton axle |
|
Axle Number |
3 or 4 |
|
Compartment |
3 or 5 |
|
Discharge valve |
4change into 3 |
|
Dischage pipe |
4 seamless steel tube |
|
Discharge valve box |
totally-enclosed |
|
Spill Discharges |
1at the rear |
|
Bottom valve |
1 set |
|
Rear ladder |
dismountable |
|
Walkway |
on the top |
|
Top ladder |
Standard |
|
Suspension system |
Leaf spring suspension |
|
Steel Spring |
10/10/10 leaf spring suspension |
Product feature and application
1) If welding line should be beautiful and strong.this process will be checking by the quality inspector of factory
2) Surface should be clean and looks beautiful.
3) Brake system should be adjust before the product leave the factory
4) Lamp should my checking before leave the factory
5) All the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory

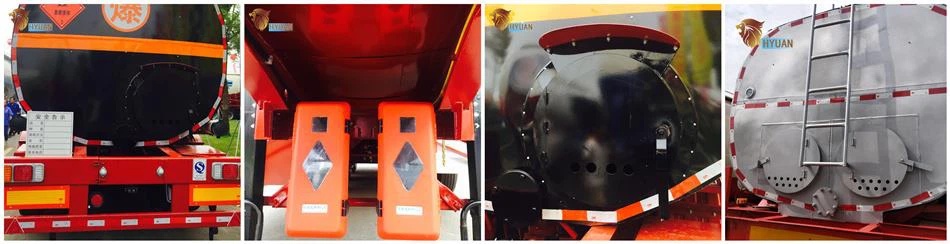

Production details
FUWA axle:
Famous Brand Axle support Trailer Duralbe and High Truck Attendance Rate.
Material:
China Best Q345B-T700 support Stronger Trailer Skeleton and tank body.
Parts:
Good Quality Parts Support Safty and Longtime Use.
Bottom Valve:
Every Compartment Equipt with Bottom Valve,Protect the over rolled tanker from leakage to ensure safety.
Emergency Valve:
Fast Response,Low Failure support Safety and Protect Tire Longer Timer Use.
