4 Compartments Aluminum Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Oil Tank semi-trailer, trailer is connected with the traction head part of the tanker, compared with the ordinary single type tanker, oil tank semi-trailer carrying oil can effectively improve the efficiency of transportation. In the case of the same tonnage, the cost of transportation is reduced and the oil consumption is saved.
Product specification
|
Material |
Carbon steel/Stainless steel/Alloy |
|
Usage |
Fuel oil transporting |
|
Size |
11980*2500*3800 (mm) (Other dimensions optional) |
|
Tank body |
5mm |
|
End plate |
6mm |
|
Manhole |
500mm |
|
Discharge valve |
Ball valve |
|
Discharge pipe |
4 rubber hose |
|
Axles |
3 * 13ton capacity (Brand optional) |
|
Suspension |
Mechanical suspension (Air suspension optional) |
|
Leaf spring |
10pcs |
|
Tire |
12R22.5 315/80R22.5 12pcs (Other size optional) |
|
Rim |
9.00-22.5 12pcs (Other size optional) |
|
King pin |
2/3.5 bolt type |
|
Landing gear |
28 Ton two speed |
|
Braking system |
Double air chamber ,brake valve,40L air tanks;ABS optional |
|
Electrical |
LED light, 7 ways,24V |
|
Painting |
Blasting and clean rust,1 coat of prime painting,2 coat of finish painting |
Product feature and application
There are several ways to distribute and transport the fuel inland, like by fuel channel, by fuel tank trucks, fuel tank trailers. Each of them plays an important role in modern fuel distribution. Fuel channel can distribute the fuel in huge quantity quickly and efficiently, however the fuel channel construction is also a huge project. On the other hand, the road transportation, like by fuel tank trucks, fuel tank trailers is more flexible and easy to operate. Aluminum fuel tank trailers is the most important part on road fuel transport.

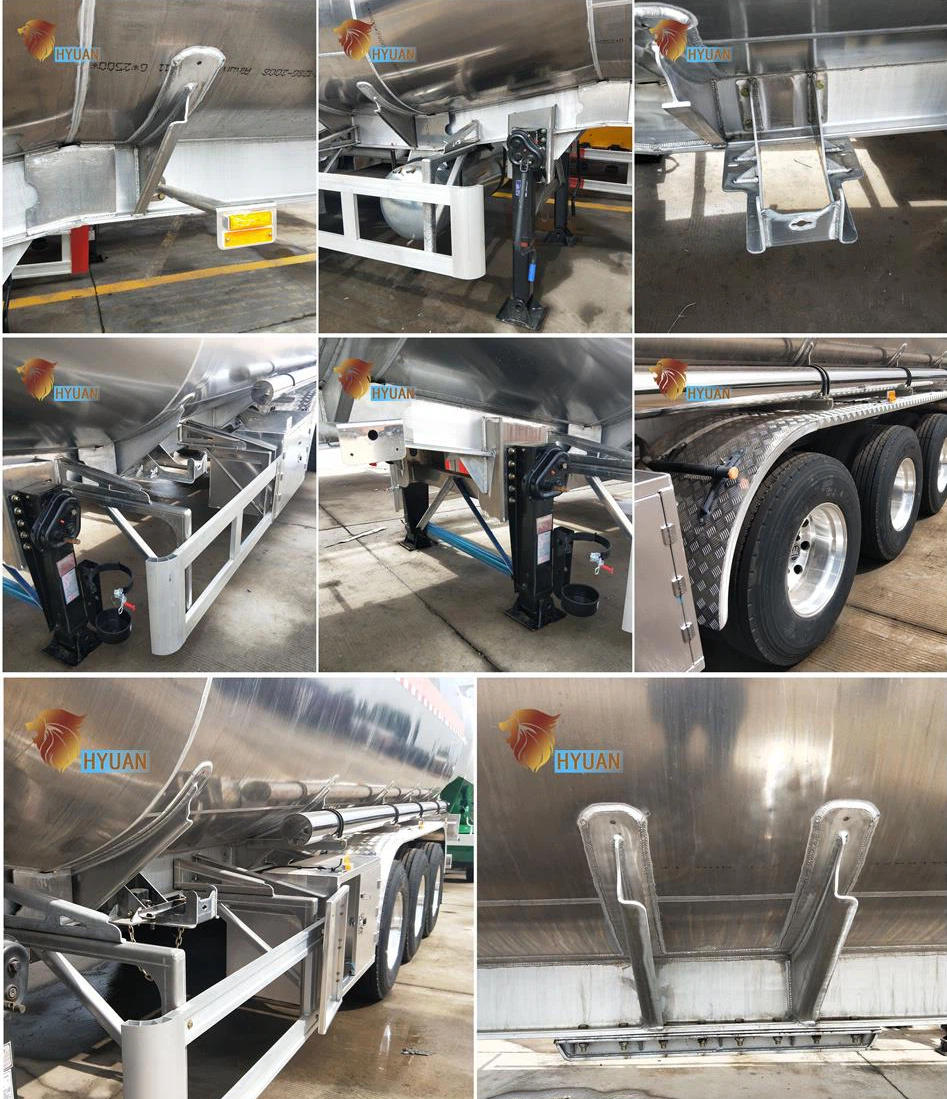

Production details
1) Light weight. Alumium tank trailer is about 4 ton lighter than steel tank trailer, can load more fuel. And low abrasion of tire.
2) Rustless and incorruptible ensure the purity of fuel and oil.
3) Good electrical conductivity. Alumium tank can conduct static in time, which will prevent spark when there is friction and crash. avoid fire and explosion.
4) Long service life and low maintenance cost. Alumium tanks life time is 7 years longer than steel tank on average. And alumium tank is easy clean and no painting.
5) High recovery rate
