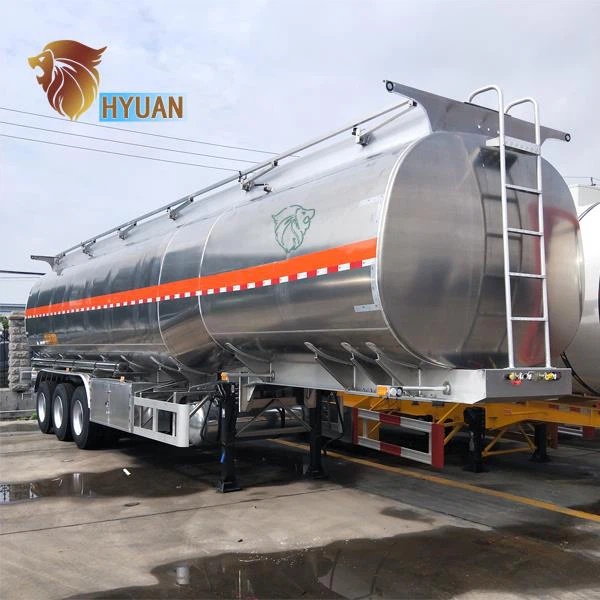

42,000liters Liquid Aluminum Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Fuel Tank semi trailer is a tanker with a trailing head connected to the trailing section. Compared with the conventional single tanker, oil tank semi trailer can effectively improve the transportation efficiency. In the same tonnage situation, reduce transportation costs, saving fuel consumption.
Product specification
|
Fuel tank semi trailer Specification |
|
|
Model Name |
Fuel tank Semi trailer |
|
Function |
Transport oil and fuel |
|
Overall Dimension L*W*H) |
12500*2500*3800mm(optional) |
|
Tare weight |
10500KG |
|
Tank body |
Q235/4mm steel |
|
End plate |
Q235/6mm steel sheet |
|
Axle |
3 axle 13T |
|
Suspension system |
Mechanical Suspension/Air suspension |
|
Steel Spring |
10/10/10 leaf spring suspension |
|
Manhole cover |
500mm manhole cover 8 sets |
|
Tire |
12.00R20 12pcs |
|
Rims |
9.0, 12 pieces |
|
Discharge valve |
4disc valve ,8pcs |
|
Discharge pipe |
4seamless steel tube ,8pcs |
|
Spare Wheel Bracket |
2 bolt-in king pin |
|
Landing gear |
Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t |
|
Tool box |
one piece |
|
Compartment |
8 |
|
Braking system |
RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|
Electrical system |
voltage:24V 2.Receptacle:7ways(7wire harness) |
| Tail lamp with turn signal,brake light&reflector,side lamp etc. | |
| One set 6-core standard Cable | |
|
Accessories |
One standard tool box.fire extinguisher 2 pcs |
|
Painting |
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime, 2coats of final paint |
|
Main beams |
Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
|
Packing |
Polish with wax before shipping |
Product feature and application
There are many advantages of aluminum fuel tank trailers, like more safety, longer life span, more environmental protection.
Aluminium fuel tanker loads highly flammable liquids like oil, fuel, diesel, so safety is the top priority item for consideration.
The aluminium fuel taker is lighter than steel tanker which makes the vehicle gravity lower. Whats more, the lighter weight makes the brake distance shorter. All these factors improve the vehicle safety level.
Secondly the aluminium alloy is unflammable material and it accumulates less electrostatic. The aluminium fuel tank could conduct the electrostatic more efficiently, so decrease the possibility of fire accident.

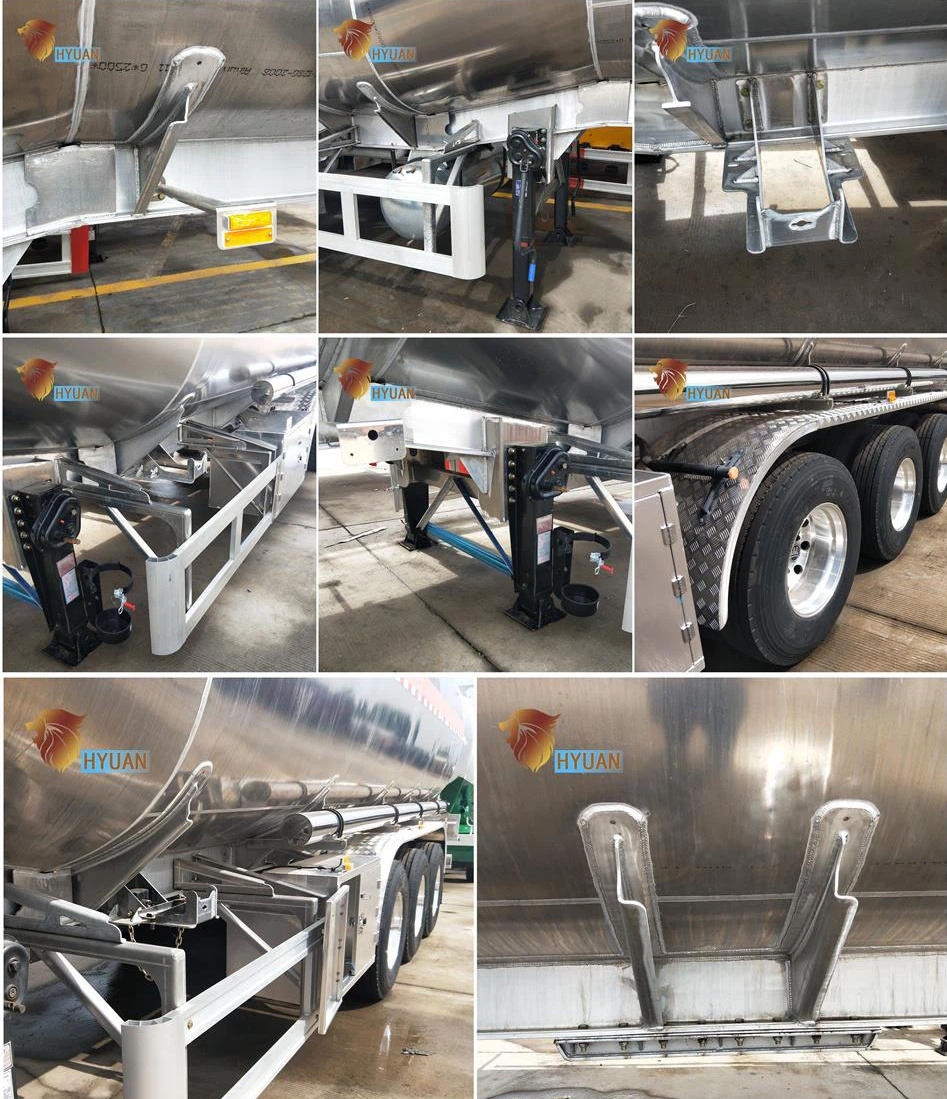

Production details
1) Volume: 20-60cbm with singl/3/4/5 compartments
2) Carbon steel, stainless steel or Aluminum
3) Suspension; Spring, single point or air suspension
4) Material of the main beam: Q235
5) Axles number: 2 3 4 axles.
6) Design type; Straight beam
7) Jost landing gear, FUWA/BPW 13/16TONS axles and tir-angle/Double coin tires
