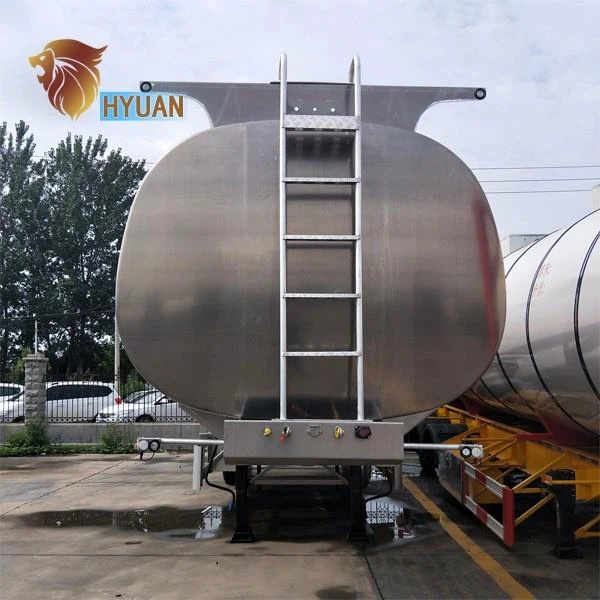

45000liters Aluminum Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
The volume of the fuel tankers transport semi-trailer can be customized, to reach 40,000 litres, 45,000 litres, 54,000 litres, up to 90,000 litres. With the different compartments, like two, three, four, or more compartments, to load different liquid. The liquid tanker semi trailer used for carrying different liquid like fuel, petrol, water, palm oil, bitumen asphalt etc.
Product specification
|
Trailer Model |
Round Shape or Ellipse |
|
Outside Dimensions |
11000mm-13000mmX2490mmX3950mm/3800mm-3900mm |
|
Tare weight |
About 8-12.8T |
|
Total Volume |
25m³-60m³ |
|
Material |
1. Q235B/Q345B carbon steel 2. 5XCT4aluminum5454 3. 304 stainless steel |
|
Tanker Body Material |
1. 6mm/5mm Q235B/Q345B carbon steel 2. 7mm/6mm 5XCT4 aluminum 5454 3. 5mm/4mm 304 stainless steel |
|
Axles |
13T/16T, FUWA/BPW/HuaJing brand |
|
Axle Number |
2/3/4/ Axle or multi axle |
|
Main Beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel. |
|
Tire |
12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
|
King Pin |
JOST brand 2.0 or 3.5 inch bolts type or Welding type |
|
Support legs |
JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) |
|
Rear ladder |
Dismountable or foldaway |
|
Wheelbase |
8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm |
|
Spring leaf |
8/10/12/16 pieces |
|
Manhole Cover |
2/3/4/5/6 piece Carbon steel API manhole cover,500mm European standards |
|
Brake Chamber |
6 double brake chamber |
|
Electrical System |
24V, 7core socket, lights according to European standards |
|
Accessory |
One tooling boxes, Two spare tire carrier, Two fire extinguisher |
|
Other tools |
A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) |
|
Discharge mouth |
diameter is 280mm |
|
Receptacle |
7ways (7wire harness) |
Product feature and application
1) We can provide customers with different volume of oil tankers.
2) We can produce according to customer demand.
3) The cabin customers of the tanker can choose according to their own requirements.
4) The tank body adopts longitudinal welding technology, which is highly sealed.
5) The configuration provided is the best.
6) Use high quality paint to prevent corrosion and prolong the service life of oil tankers.

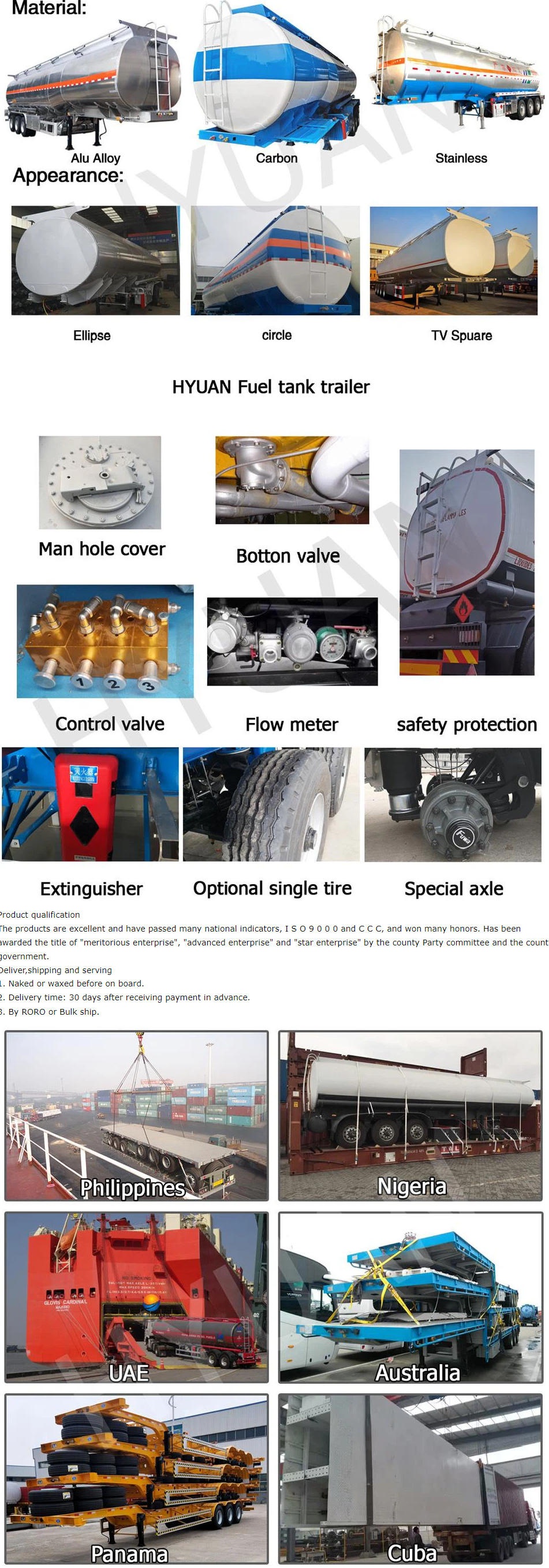

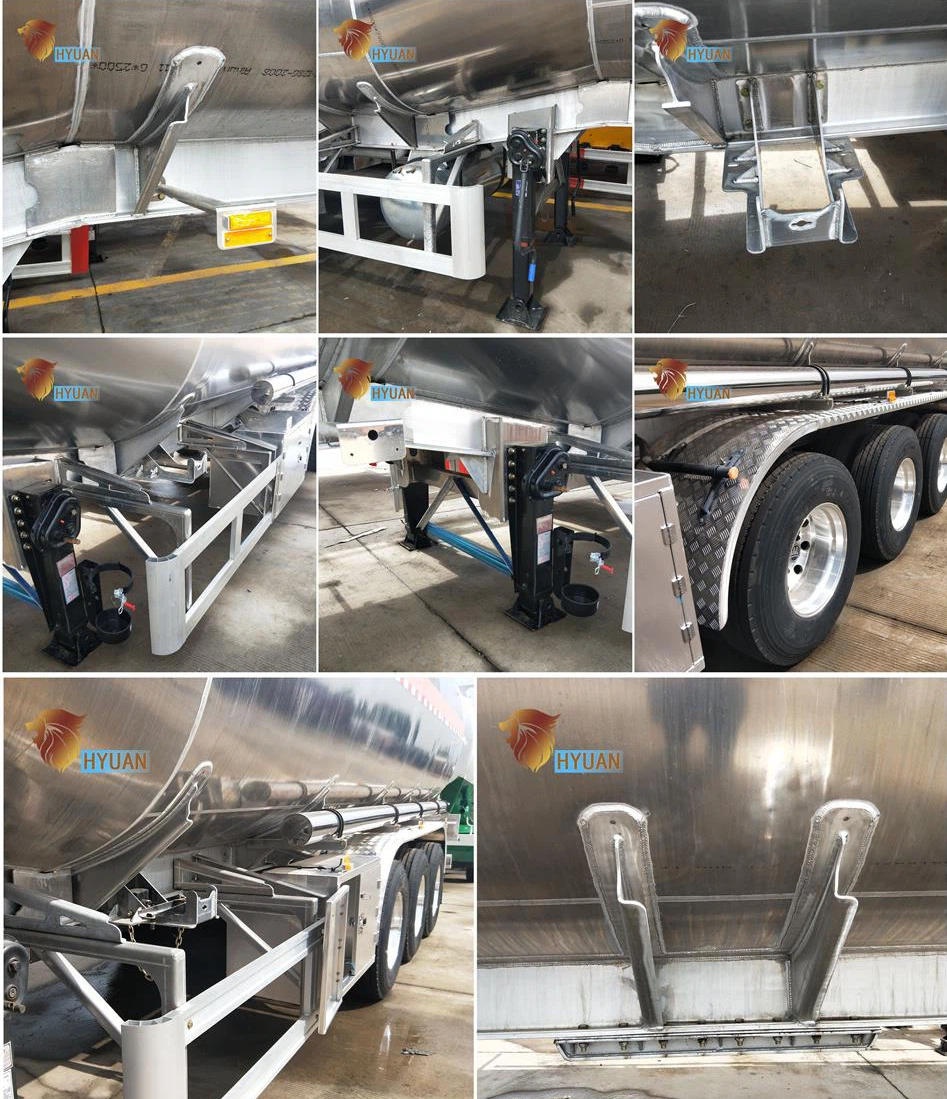

Production details
FUWA/BPW Axle
Material: Aluminum
JOST Landing Gear
Volume: 32-60m³
Mechanical suspension/Germany or America type /Air Suspension
Personalized customization as your requirement
