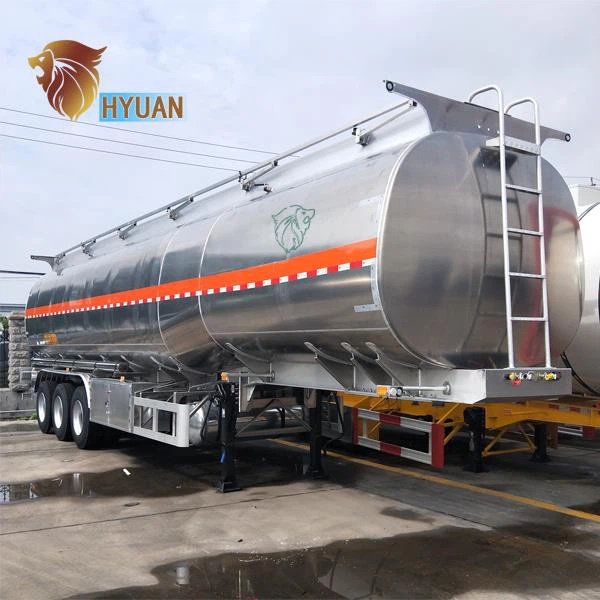

3 Axles Aluminum Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Fuel Tank semi trailer is a tanker with a trailing head connected to the trailing section. Compared with the conventional single tanker, oil tank semi trailer can effectively improve the transportation efficiency. In the same tonnage situation, reduce transportation costs, saving fuel consumption.
Product specification
|
Fuel tank semi trailer Specification |
|
|
Model Name |
Fuel tank Semi trailer |
|
Function |
Transport oil and fuel |
|
Overall Dimension L*W*H) |
11500*2500*3800mm(optional) |
|
Tare weight |
10500KG |
|
Tank body |
Q235/4mm steel |
|
End plate |
Q235/6mm steel sheet |
|
Axle |
3 axle 13T |
|
Suspension system |
Mechanical Suspension/Air suspension |
|
Steel Spring |
10/10/10 leaf spring suspension |
|
Manhole cover |
500mm manhole cover 8 sets |
|
Tire |
12.00R20 12pcs |
|
Rims |
9.0, 12 pieces |
|
Discharge valve |
4disc valve ,8pcs |
|
Discharge pipe |
4seamless steel tube ,8pcs |
|
Spare Wheel Bracket |
2 bolt-in king pin |
|
Landing gear |
Fuwa brand two-speed,manual operating,heavy duty landing gear 28t |
|
Tool box |
one piece |
|
Compartment |
8 |
|
Braking system |
RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
|
Electrical system |
voltage:24V 2.Receptacle:7ways(7wire harness) |
| Tail lamp with turn signal,brake light&reflector,side lamp etc. | |
| One set 6-core standard Cable | |
|
Accessories |
One standard tool box.fire extinguisher 2 pcs |
|
Painting |
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime, 2coats of final paint |
|
Main beams |
Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
|
Packing |
Polish with wax before shipping |
Product feature and application
1) If welding line should be beautiful and strong.this process will be checking by the quality inspector of factory
2) Surface should be clean and looks beautiful.
3) Brake system should be adjust before the product leave the factory
4) Lamp should my checking before leave the factory
5) All the parts should be reinforce .especially the bolt shoule be more reinforce before the produce leave the factory
Production details
1) Cutting
Use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing
2) Welding
After steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and the middle plate will be welding together . this process will be use submerged arc welding process.this type of welding is very special .its exclusively used in I beam welding .after this welding process other parts of the trailer will be use different welding way for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on
3) Blasting
This process is use for the first step of surface cleanness-stress relief-derusting before paiting .
4) Electrophoresis coating
This process use for more detail surface cleanness
5) Epoxy zinc primer spray coating
This process is the lasting one before paiting .after this process the trailer an be paiting
6) Assembly
After all the process we have mationed. the last procedure of the trailer is assembly. this process all the parts will be assemly. it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on
