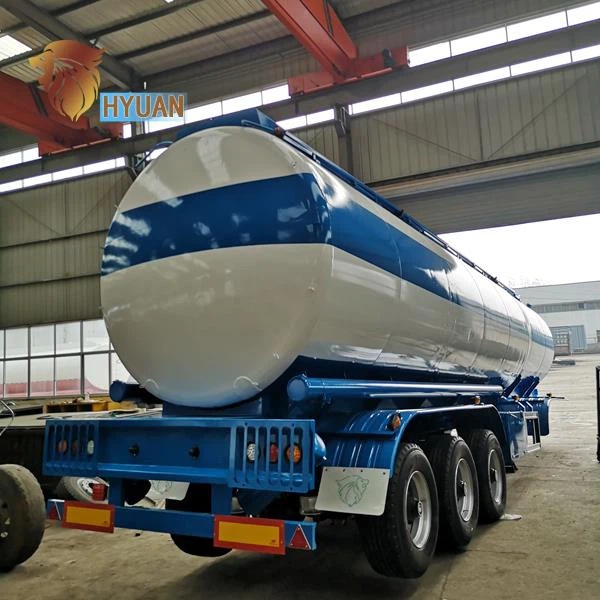

3axles Carbon Steel Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Chinese Oil Tank Fuel Tanker Trailer is a tanker with a trailing head connected to the trailing section. Compared with the conventional single tanker tanker tanker tanker, oil transport can effectively improve the transportation efficiency. In the same tonnage situation, reduce transportation costs, saving fuel consumption.
Product specification
|
Manufacturer Name |
Shandong Liangshan HYUAN Automobile Co.,Ltd |
|
Shape |
Round Shape or Ellipse |
|
Outside Dimensions |
11000mm-13000mmX2490mmX3950mm/3800mm-3900mm(Optional) |
|
Total Volume |
25m³-60m³ |
|
Tanker Body Material |
5mm or 6mm, Q235B carbon steel |
|
Axles |
13T/16T,FUWA/BPW/HuaJing brand |
|
Axle Number |
2/3/4/ Axle or multi axle |
|
Main Beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel. |
|
Tire |
11R20 12R20 11R25 12R25 13R25 |
|
King Pin |
JOST brand 2.0 or 3.5 inch bolts type or Welding type(2"(50mm)or3.5"(90mm) JOST) |
|
Support legs |
JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) |
|

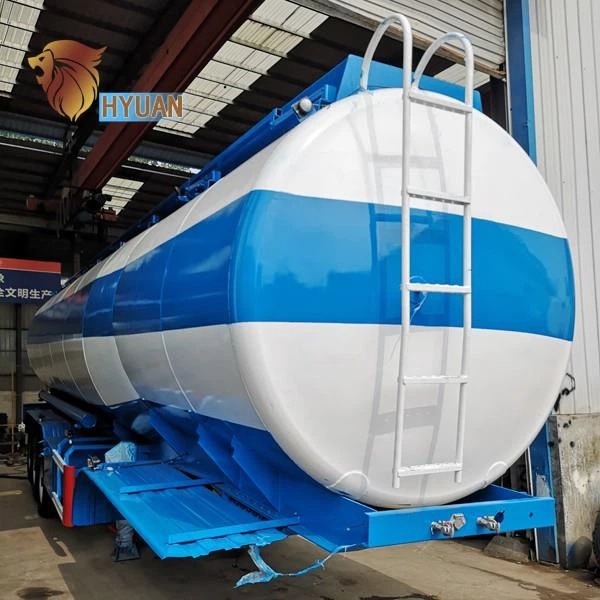

Rear ladder |
Dismountable or foldaway |
|
Wheelbase |
8050/7650+1300mm,5060/6660/6960/6580+1310+1310mm |
|
Spring leaf |
8/10/12/16 pieces |
|
Manhole Cover |
2/3/4/5/6 piece Carbon steel API manhole cover,500mm European standards |
|
Brake Chamber |
6 double brake chamber |
|
Electrical System |
24V, 7core socket, lights according to European standards |
|
Accessory |
One tooling boxes,Two spare tire carrier, Two fire extinguisher |
|
Other tools |
A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) |
|
Discharge mouth |
diameter is 280mm |
|
Fire Extinguisher |
Two pieces |
|
Receptacle |
7ways (7wire harness) |
Product feature and application
1) The tank body is made of 4mm or 6mm high-quality carbon steel according to national standards. The shape of the tank body is divided into oval or square round tanks, which can contain 1-4 kinds of oil products. Can also produce heating and heat preservation series tanks.
2) Alcohol, chemical tanker made of high quality stainless steel at home and abroad, the thickness of 4 mm to 5 mm.
3) All kinds of hydrochloric acid, sulfuric acid, lye tanker made of plastic, thickness of 12 mm to 22 mm.
4)A plurality of anti-wave baffles are arranged in the tank body. High pressure gas leak test is adopted to ensure that the tank body has high strength, stable center of gravity and safe and stable vehicle

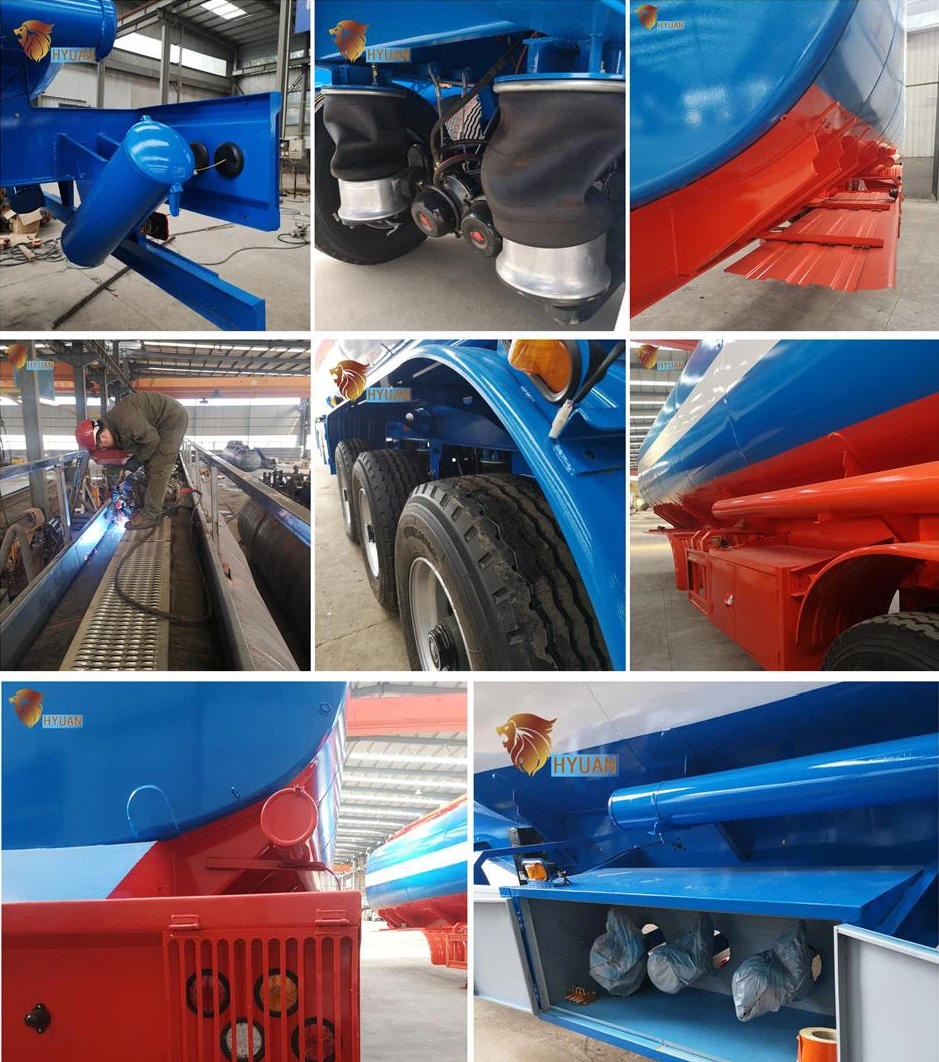

Production details
Chassis
All the chassis are manufactured under standard process to ensure quality.
Tank Welding
Automatic submerged arc welding is used to ensure the tank welding quality.
Trailers parts
All the parts are supplied to whenever you need.
1) light weight design.
2) Good quality carbon steel Q345B. Aliuminum alloy, stainless steel material are optional
3) OEM
