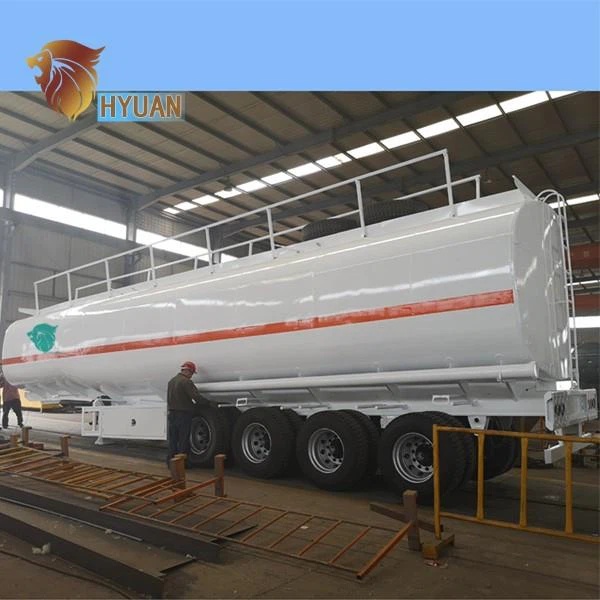

40000 Liters Carbon Steel Fuel Tank Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Fuel Tanker Trailer also know as tank trailer, road tanker etc. Apply for transporting Fuel, Water, Liquid chemical, Crude oil, Food oil etc.
Fuel Tanker Trailer is widely used in oil depot, petrol station, oil field, chamical factory, food oil factory, bitumen factory etc.
Product specification
|
Function |
Fuel, petroleum, gasoline, etc |
|
Overall dimension |
11600x2500x3440 mm |
|
Volume |
40m3 |
|
Loading weight |
25000kg |
|
Tank material |
Tank body: 6.00mm; Dish end: 6.00mm; |
|
Compartments |
3 compartment or optional |
|
Bottom valve |
1 set per compartment, 4” pneumatic controlled valve |
|
Discharge valve |
3 sets |
|
Manhole |
3 set manhole with internal breath valve |
|
Main beam |
Carbon steel Q345B. The height 500 mm, upper plate 14mm, down plate 16mm, middle plate 8mm. |
|
Traction pin |
2” (50mm) or 3.5(90mm) optional |
|
Land gear |
Standard 28ton |
|
Axle |
13ton * 3 axle BPW brand |
|
Spring leaf |
90mm*13mm*10pcs or 100mm*12mm*12pcs |
|
suspension |
Mechanical suspension/Air suspension optional |
|
Rim |
9.00-22.5 12pcs |
|
Tire |
Tubeless tire12R22.5 or 315/80r22.5 or 385/68r22.5 |
|
Tire quantity |
12 units |
|
valve |
WABCO RE 6 relay valve |
|
Brake Chamber |
T30/30+T30 Spring brake chamber |
|
Tool box |
1 unit 1m*0.5m*0.5m |
|
Spare wheel carrier |
2 units |
|
Marker lamp |
LED type |
|
Voltage |
24V |
|
Receptacle |
7ways (7 wire harness) |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Product feature and application
1) More safty by 7%Lower center gravity Gooseneck design
2) 12% Larger volume by semi elliptical section barrel design
3) 10 year Long service life by tanker automacit arc welding
4) ADR standard suit for most oil companys rules
Production details
A. Steel auto cutting
B. End plate bulging machine makes end plate more accurate
C. Canning machine makes tanker body more beauty and tight
D. Tanker body auto welding
E,G. Chassis welding by experienced worker
F. Dust-free painting
