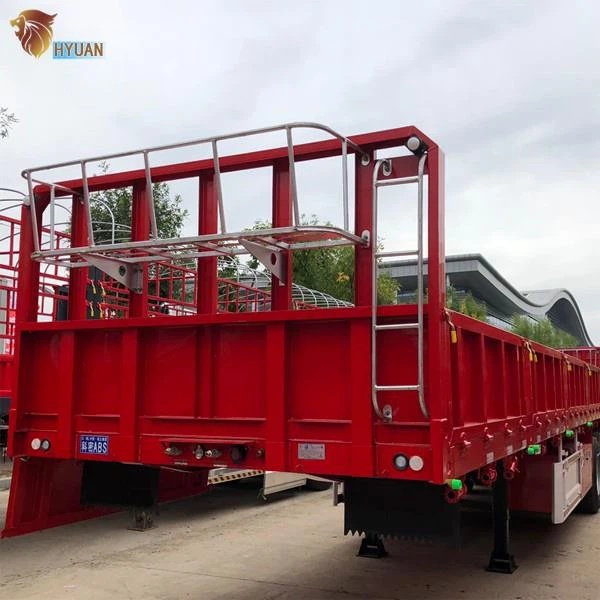

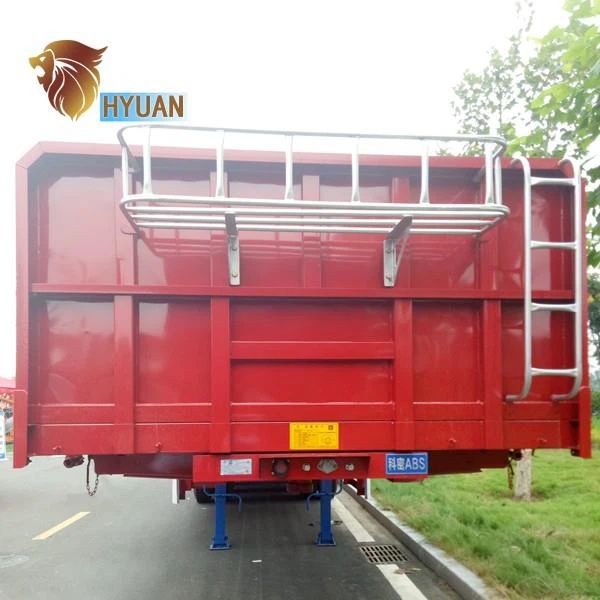

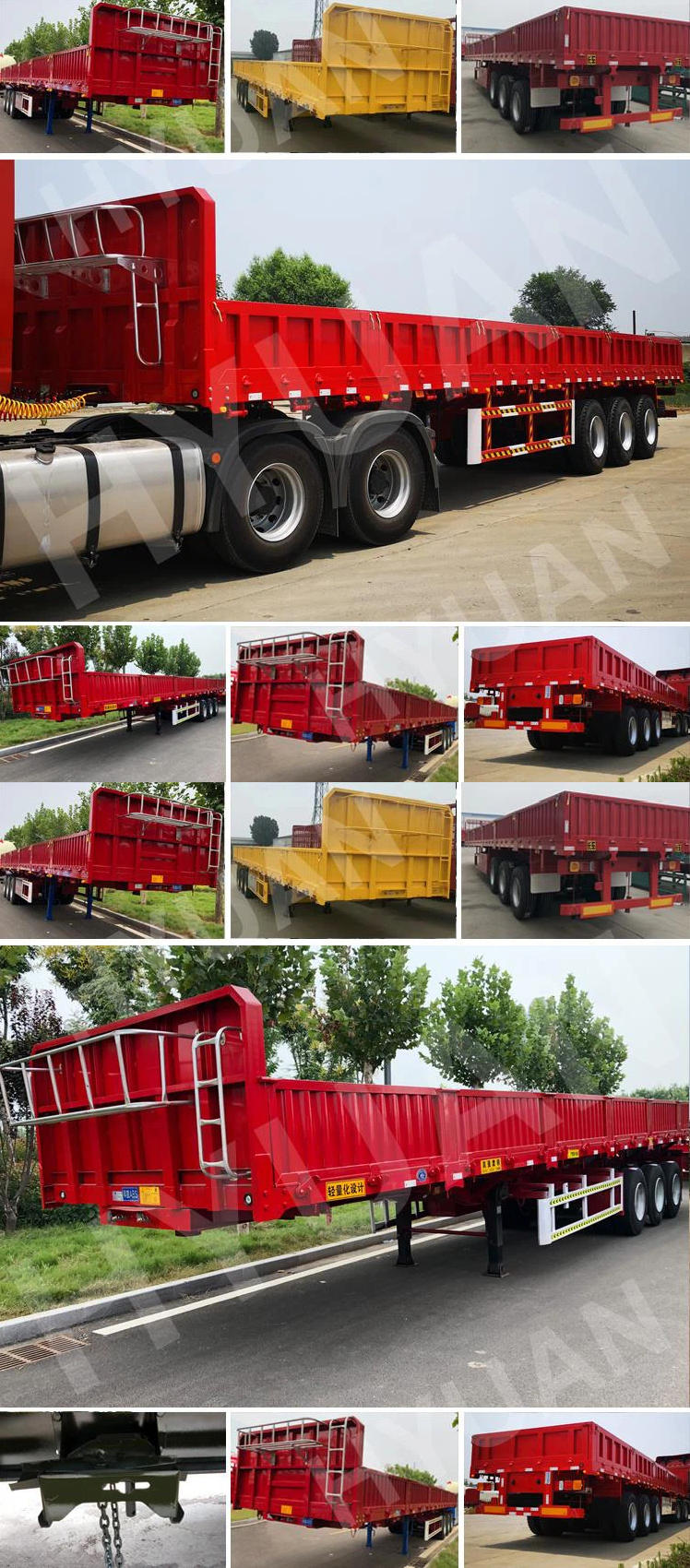

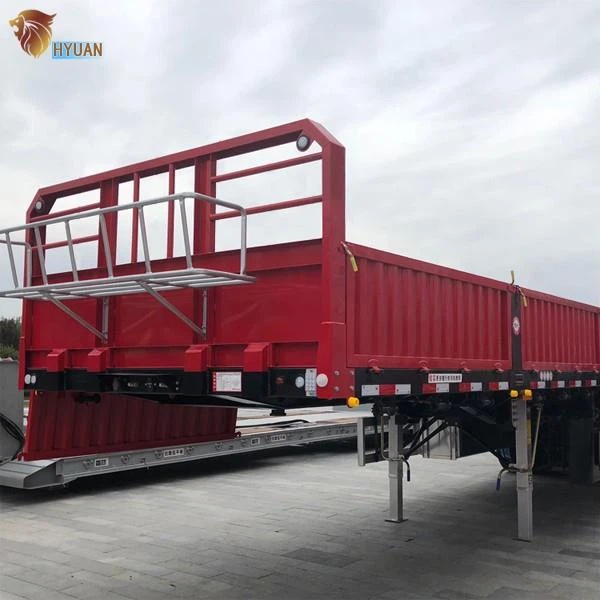

60Ton Cargo Transport Side Wall Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Side wall semi trailers mainly used to transport agricultural and sideline products such as fruits, vegetables, as well as some daily necessities and other light foam goods. With the removable fence, fence semi trailers can also be used as flatbed semi trailer for container transport.
Product specification
|
Specifications |
||
|
Parameter |
||
|
Outside Dimensions (L*W*H) |
(6000-17000) *(2500-3300) *(1550-2500) mm |
|
|
Rated Load |
20 to 80 ton |
|
|
Tare Weight |
7000 kg |
|
|
Wheel Base |
8390+1310+1310 (mm) |
|
|
Twist lock No |
12 |
|
|
Running Gear |
||
|
Tires |
specification |
12R22.5-18 |
|
No. of tires |
8/12/16 |
|
|
Spare tire carriers |
1 or 2 |
|
|
Axles |
Brand |
FUWA (BPW optional) |
|
No. of axles: |
2/3/4 |
|
|
Axle-load |
13000kg |
|
|
Wheel rim |
7.50-20 rim or 8.00 |
|
|
Suspension |
rigid suspension,10 pcs leaf-spring |
|
|
Brakes |
brand |
TKL brand |
|
Brake chamber |
double air chamber |
|
|
System |
Dual line braking system /ABS |
|
|
Under Frame |
||
|
Departure Angle |
16 |
|
|
Front/Rear Overhang |
1890mm |
|
|
Main Beam |
material |
I beam, Q345B, automatic submerged arc welded |
|
specification |
Height is 500mm, upper plate is 14mm, lower plate is 16mm, middle is 8mm |
|
|
Cross Beam material |
Q235B |
|
|
Side beam |
Channel steel |
|
|
Plate form |
Steel Sheet 3mm thickness or diamond plate (Also can choose other thickness, such as 2mm, 3mm, 4mm, 5mm, 6mm) |
|
|
King Pin |
50# or 90# |
|
|
Landing gear |
28Ton |
|
|
Accessory |
One tooling box with a set of standard trailer tool |
|
|
Electrical |
||
|
Voltage |
24V |
|
|
Receptacle |
7 ways (7 wire harness) |
|
|
Lights |
Front corner marker lamp: red; reflector lamp: white |
|
|
Side marker: orange |
||
|
Rear lamp: red; rear reflector: white; turn single lamp: orange |
||
|
Painting, marking and side guard can according to the customer’s requirement |
||
Product feature and application
1) Exquisite processing technology: According to the Austenite continuous cooling transformation curve of the different materials, the different cooling rate quenching liquid is selected for the quenching process, and its' cooling curve is measured, with control precision.
2) The accuracy of the material dimension is high and mechanical and processing property is good.
3) Specializing in the production of stiffness, gradual change stiffness of the special vehicles, heavy trucks, light trucks and other vehicles, and the leaf spring of less pieces of the variable cross-section, and we can design, manufacture the special use or new type automobile leaf-spring according to the demand of the users.
Production details
Design Drawing: Before production, we will sent the design drawing to our customer to confirm the detail of the vehicle. We hope we can supply the most suitable product to our customer.
Cutting and Welding: The I beam cutting adopt the Computer Numerical Control Plasma Cutting Machine. The I beam welding adopt the Gantry Main Sill Welding Machine.
The Beam Welding: Main beam and side beam all use I-shaped beam, it can ensure the trailer more durable.Reinforced rear plate can avoid the rear plate was broken away when heavy duty machines climbing the ramp of trailer.
Surface Treatment: In order to remove the rust of the trailer body, we use the sand blasting to retreat the surface of the trailer.
The trailer can have the beautiful appearance, the painting will be coating evenly, firm adhension, gloss more durable
Painting: One layer of the anti-rust painting, two layer of painting
Test: We will test the quality of the trailer before delivery.
