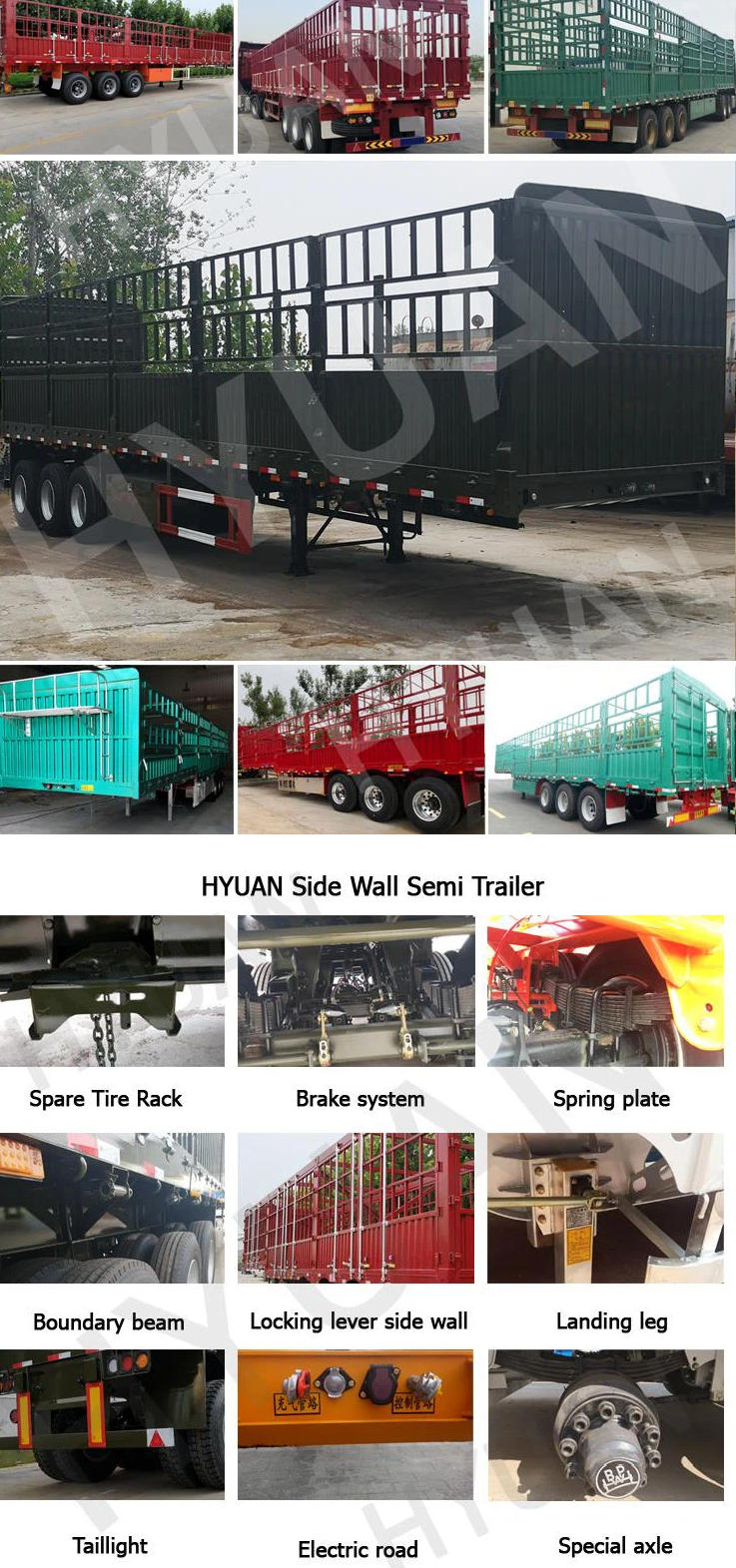

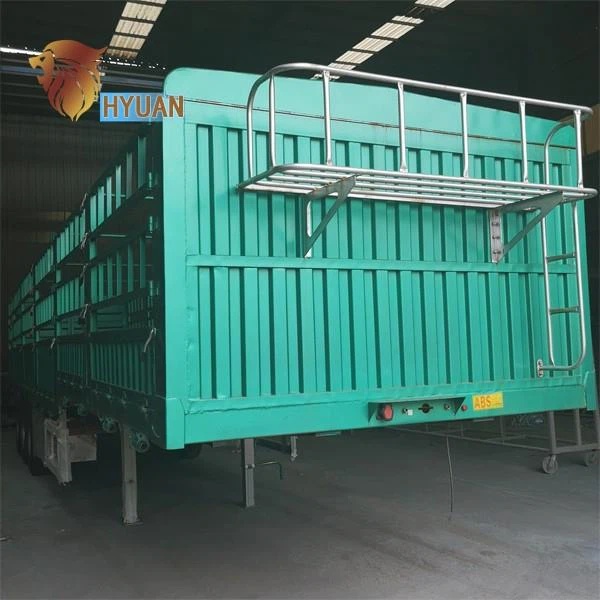

40ft Cargo Transport Side Wall Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
3 Axle 40FT container wallside cargo semi trailerFrame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
Product specification
|
Product name |
Side wall animal transport stake fence cargo truck semi trailer |
|
Dimension |
12500-18000*2500-3000*1430-1550mm |
|
Tare Weight |
About 8.3T |
|
Loading Capacity (T) |
≤ 60 T |
|
Axles |
13 T/16T, FUWA /BPW /Huajing Brand |
|
Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
|
Tire |
12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
|
Suspension |
Mechanical suspension/Germany or America type /air suspension |
|
Spring |
90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
|
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
|
Support leg |
JOST brand D200T or China brand 28Tons (Double speed) |
|
Main beam |
Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. |
|
Side beam |
16mm or 18mm channel steel (Material is Q235steel). |
|
Side Wall |
600mm-1800mm ,the open door can be choose freely. With 300-500mm height square tube or round tube |
|
Bottom Platform |
3mm-5mm thickness (According to the capacity which you loading for) |
|
Brake chamber |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber |
Product feature and application
1. Apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics
2. Overall assembly and disassembly convenient, can be more than one car, van, car warehouse gate, tailgate car at the same time.
3. Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.

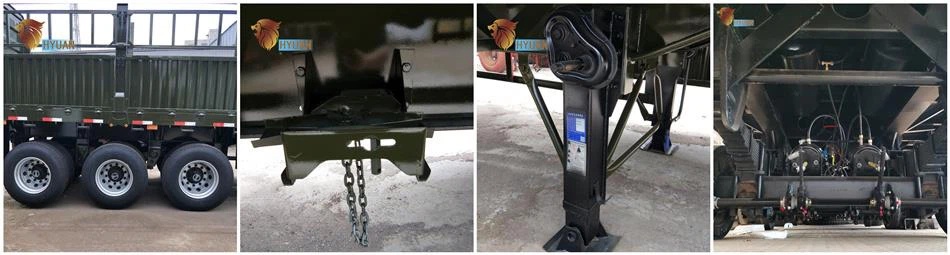

Production details
1) The vehicle body is made of superior steel products, advanced technologies, strict production process and the vehicle
structure is reasonable, reliable performance, easy operation, good appearance.
2) Frames are all wear girder structure, the longitudinal beam adopts flat or gooseneck. Web from 400 mm to 400 mm high manganese plate welding, longitudinal beam adopts automatic submerged arc welding to welding, the frame adopts blasting treatment, beam cross the longitudinal beam and weld the whole.
3) Suspension adopts an non-independent steel plate stamping type rigid suspension (options air suspension) that is consist of tandem of leaf spring and hanging pedestal, reasonable structure, strong rigidity and strength, is used to carry Impact load slow.
