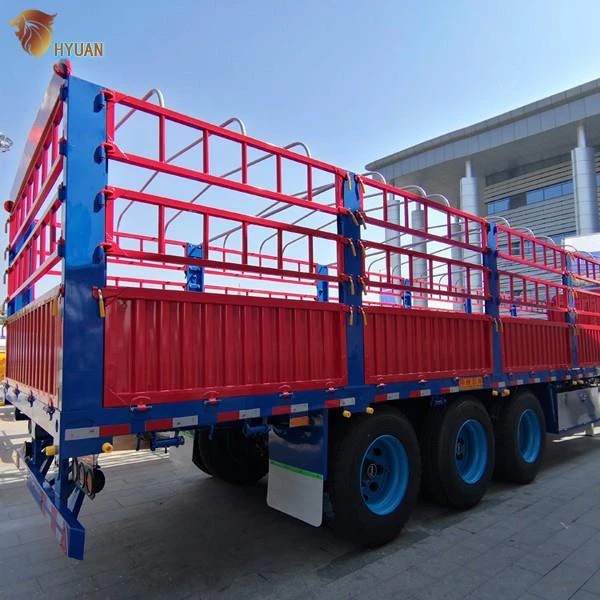

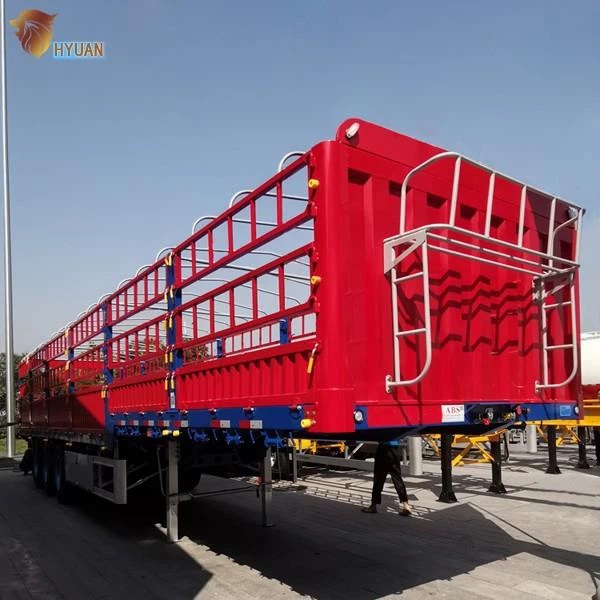

3axles Cargo Transport Side Wall Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
Side wall semi trailers mainly used to transport agricultural and sideline products such as fruits, vegetables, as well as some daily necessities and other light foam goods. With the removable fence, fence semi trailers can also be used as flatbed semi trailer for container transport.
Product specification
|
Specifications |
||
|
Parameter |
||
|
Outside Dimensions (L*W*H) |
(6000-17000) *(2500-3300) *(1550-2500) mm |
|
|
Rated Load |
20 to 80 ton |
|
|
Tare Weight |
7000 kg |
|
|
Wheel Base |
8390+1310+1310 (mm) |
|
|
Twist lock No |
12 |
|
|
Running Gear |
||
|
Tires |
specification |
12R22.5-18 |
|
No. of tires |
8/12/16 |
|
|
Spare tire carriers |
1 or 2 |
|
|
Axles |
Brand |
FUWA (BPW optional) |
|
No. of axles: |
2/3/4 |
|
|
Axle-load |
13000kg |
|
|
Wheel rim |
7.50-20 rim or 8.00 |
|
|
Suspension |
rigid suspension,10 pcs leaf-spring |
|
|
Brakes |
brand |
TKL brand |
|
Brake chamber |
double air chamber |
|
|
System |
Dual line braking system /ABS |
|
|
Under Frame |
||
|
Departure Angle |
16 |
|
|
Front/Rear Overhang |
1890mm |
|
|
Main Beam |
material |
I beam, Q345B, automatic submerged arc welded |
|
specification |
Height is 500mm, upper plate is 14mm, lower plate is 16mm, middle is 8mm |
|
|
Cross Beam material |
Q235B |
|
|
Side beam |
Channel steel |
|
|
Plate form |
Steel Sheet 3mm thickness or diamond plate (Also can choose other thickness, such as 2mm, 3mm,4mm,5mm,6mm) |
|
|
King Pin |
50# or 90# |
|
|
Landing gear |
28Ton |
|
|
Accessory |
One tooling box with a set of standard trailer tool |
|
|
Electrical |
||
|
Voltage |
24V |
|
|
Receptacle |
7 ways (7 wire harness) |
|
|
Lights |
Front corner marker lamp: red; reflector lamp: white |
|
|
Side marker: orange |
||
|
Rear lamp: red; rear reflector: white; turn single lamp: orange |
||
|
Painting, marking and side guard can according to the customers requirement |
||
Product feature and application
1)The capacity is for 30tons-500tons , we can manufacture it according to your needs.
2) The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
3) The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
4) The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
5) The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs

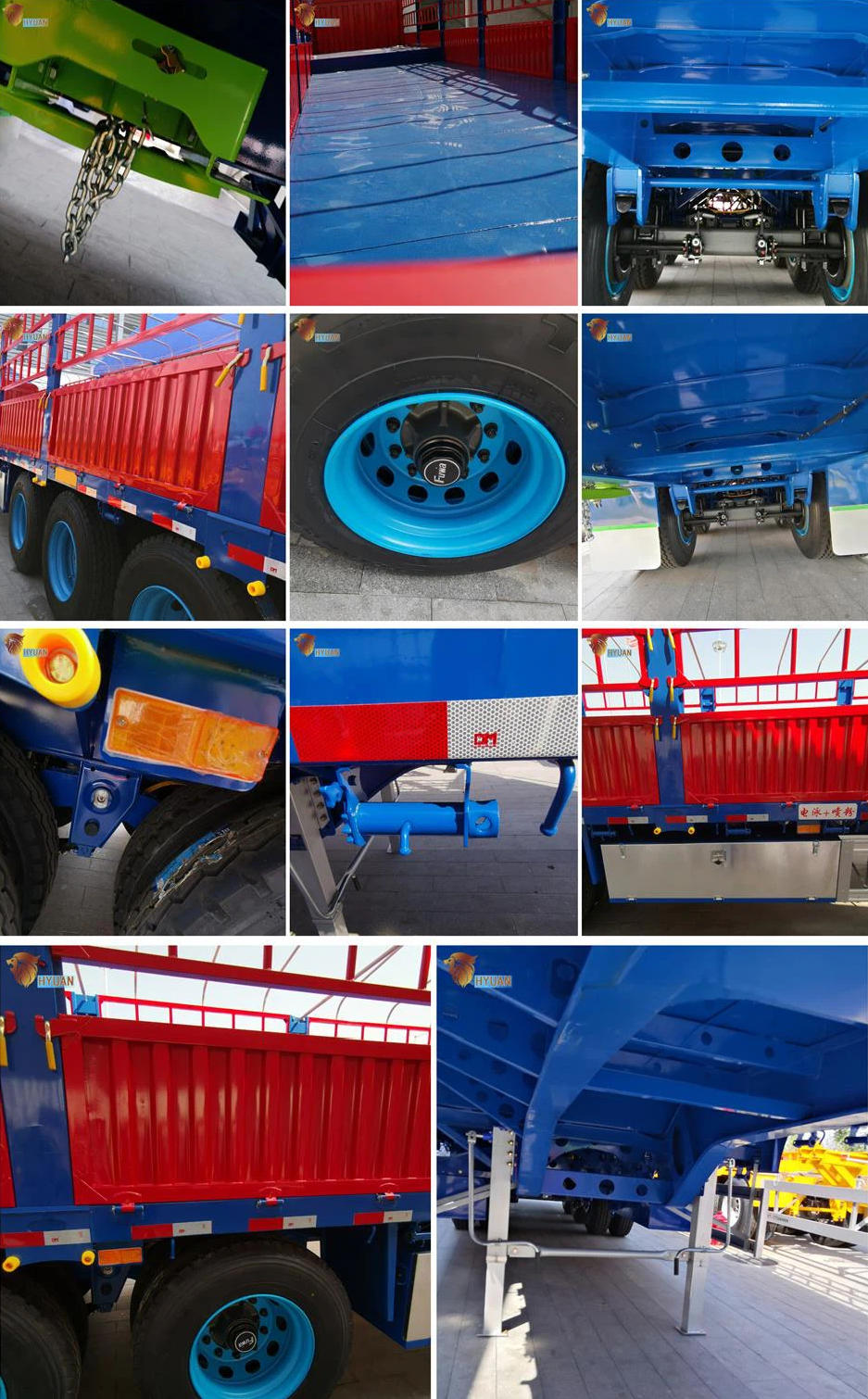

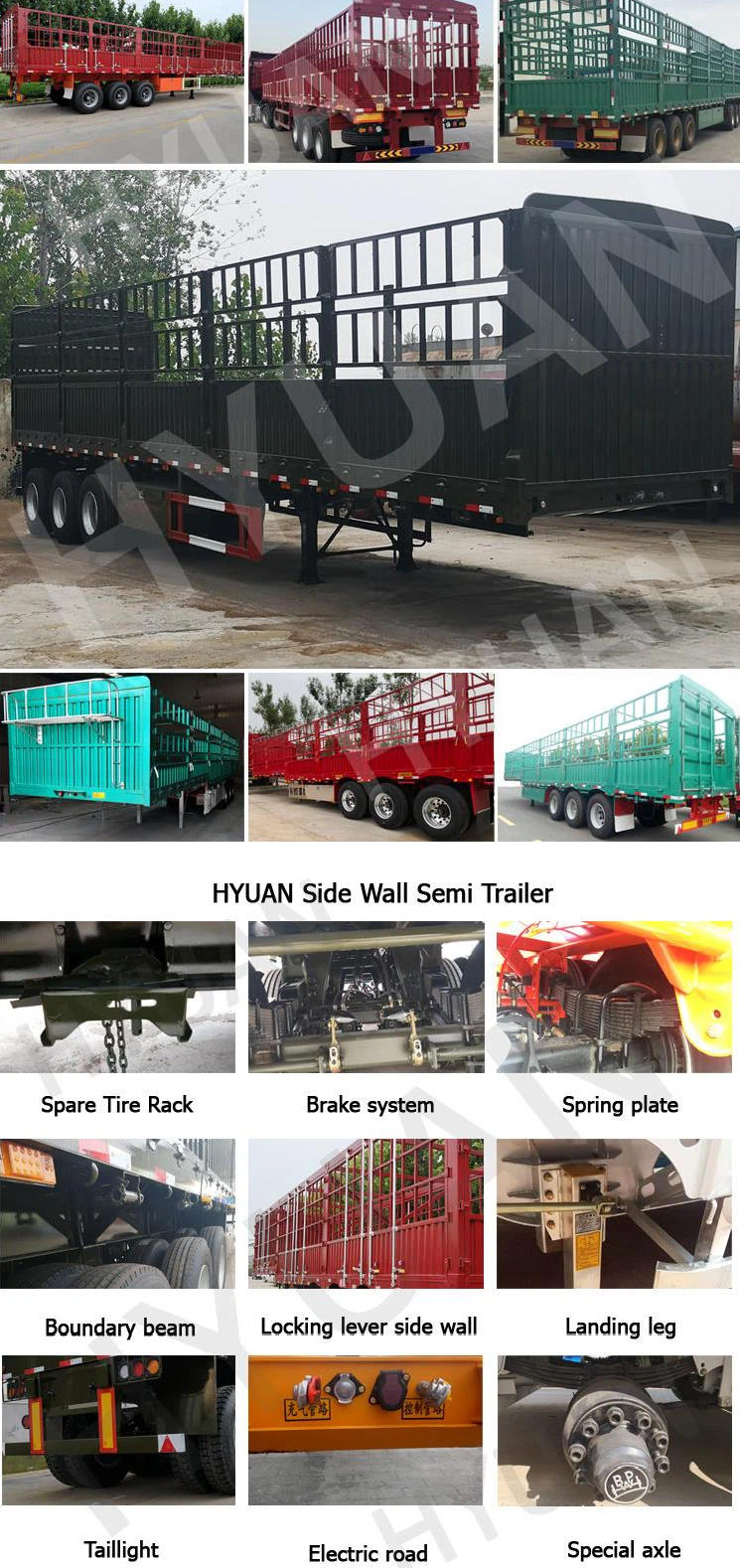

Production details
1) The vehicle body is made of superior steel products, advanced technologies, strict production process and the vehicle
structure is reasonable, reliable performance, easy operation, good appearance.
2) Frames are all wear girder structure, the longitudinal beam adopts flat or gooseneck. Web from 400 mm to 400 mm high manganese plate welding, longitudinal beam adopts automatic submerged arc welding to welding, the frame adopts blasting treatment, beam cross the longitudinal beam and weld the whole.
3) Suspension adopts an non-independent steel plate stamping type rigid suspension (options air suspension) that is consist of tandem of leaf spring and hanging pedestal, reasonable structure, strong rigidity and strength, is used to carry Impact load slow.
