40ft Animal Transport Side Wall Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction

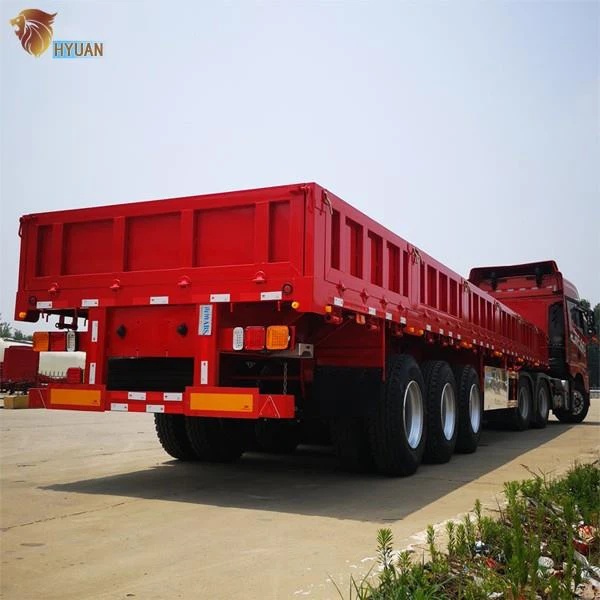

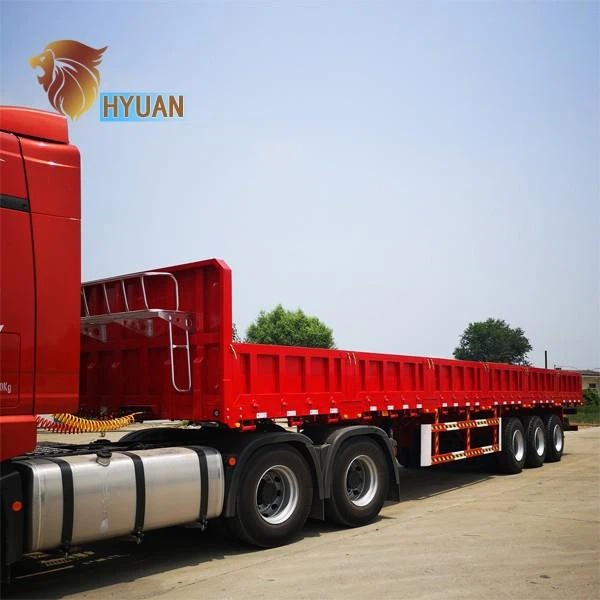

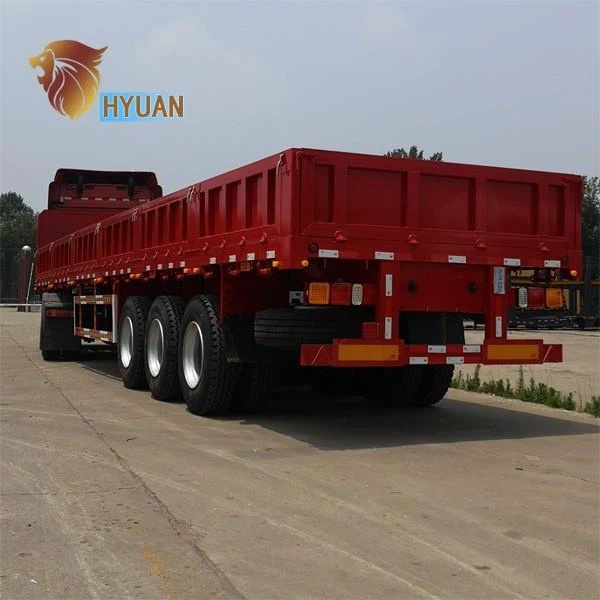

HYUAN side wall semitrailer covers series products such as drop-side semi-trailer and cargo semitrailer, uses W-shape through-going beam, saves cap steel, makes through-going beam and bottom plate have direct contact.increases contact area of through-going beam and floor board, reduces floor board sinking caused by cap steel, and has tare weight with about 1.5t lighter than standard product.
Product specification
|
Dimension(Optional) |
Axle No. |
Rated Load (kg) |
Tire No. |
Tire Size |
|
|
20ft |
2 |
40000 |
8 |
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
|
|
40ft 45ft 48ft 53ft |
3 |
60000 |
12 |
||
|
40ft 45ft 48ft 53ft |
4 |
75000 |
16 |
||
|
Wheel Base(mm) |
1310 |
||||
|
leaf-spring Pcs |
10 |
||||
|
Axle |
13/16/18 T |
||||
|
Suspension |
Heavy Duty Mechanic Suspension with Leaf Springs |
||||
|
Main Beam Material |
Q345B manganese plates, automatic submerged arc welded |
||||
|
Brake System |
Dual line braking system with automatic braking system/chambers |
||||
|
Brake Air Chamber |
Double Model |
||||
|
Kingpin |
2' or 3.5' Interchangeable |
||||
|
Landing gear |
28T loading capacity with 80T static lifting capacity. |
||||
|
Platform |
4-6 mm diamond steel plate |
||||
|
Brake System |
Dual Lines Braking System With Automatic Air Chambers |
||||
|
Brake Air Chamber |
Four double and two single chamber |
||||
|
Electrical System |
24V, 7core socket, lights according to European standards. |
||||
|
Mainbeam Size |
Upper plate |
14mm |
|||
|
Lower plate |
16mm |
||||
|
Mid Web |
8 mm |
||||
|
Height |
500-520mm |
||||
|
Tool Box |
1 box of standard tools |
||||
|
Spare tire carrier |
2 sets |
||||
|
Color and Logo |
Depends on the buyer’s requirement. |
||||
|
Pin Height |
According to the height of the tractor saddle. |
||||
|
Painting |
Three coats painting; Any color will be available |
||||
|
Other Specifications |
The frame can be flat plate style and skeleton style. Twist lock settings installed 12 pics, 8 pics, and 4pcs to satisfy the containers with different sizes for convince. |
||||
|
Application |
For animal/livestock/bulk cargo transport |
||||
|
Fence Height |
300mm+2000mm |
||||

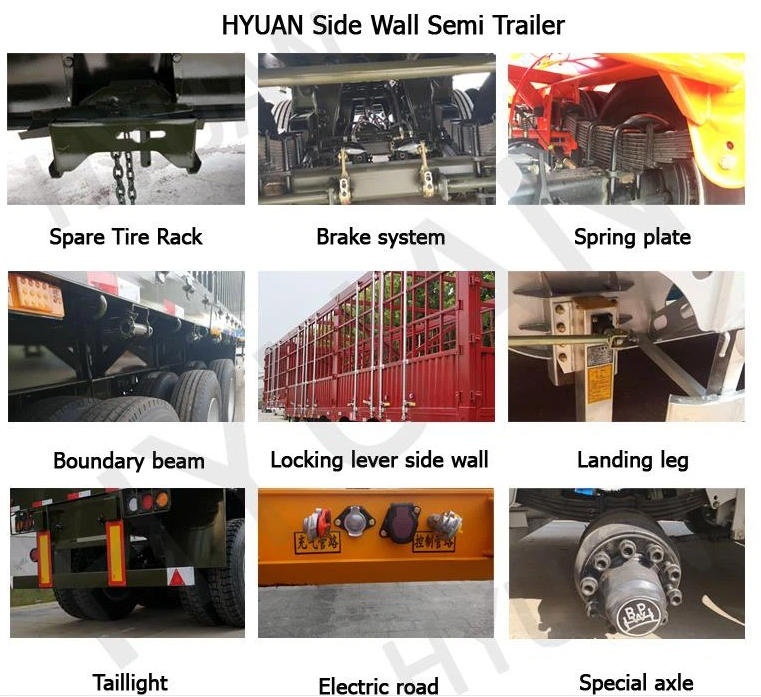

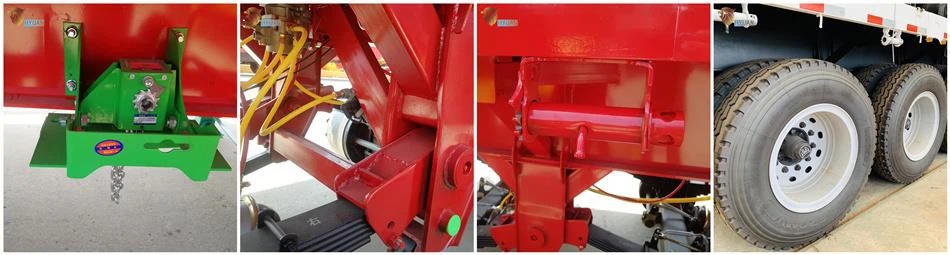

Product feature and application
Axle:
Famous Brand Axle Support
Trailer Durable and High Truck Attendance Rate
Chassis:
China Best Q345B-T700 support Stronger Main Beam
Tire:
Good Quality Tire support Trailer Running Safety&Smoothly
King Pin:
JOST Detachable Type support Durable and Fast&Easy Replace
Emergency Valve:
Fast Response,Low Failure support Safetly&Protect Tire Longer Time Use
Production details
1) Cutting use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing
2) Welding after steel cutting process the next step is welding. this process the main work is beam welding. the top plate-bottom plate and the middle plate will be welding together. this process will be use submerged arc welding process. this type of welding is very special. its exclusively used in I beam welding. after this welding process other parts of the trailer will be use different welding way for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on
3) Blasting this process is use for the first step of surface cleanness-stress relief-derusting before paiting.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Packaging Details: Nude packing and covered with wax. Normally carried by bulk carriers or ro-ro ship, container transport is aslo available if the dimension is suitable.
Shipping Details: 35 days after received your payment.
