Model Number:3axie sidewall semi trailer
Side Wall Semi TrailerShipping:Support Sea freight

Lead Time:

Quantity(Units)	1 - 3	>3
Est. Time(days)	20	Negotiable

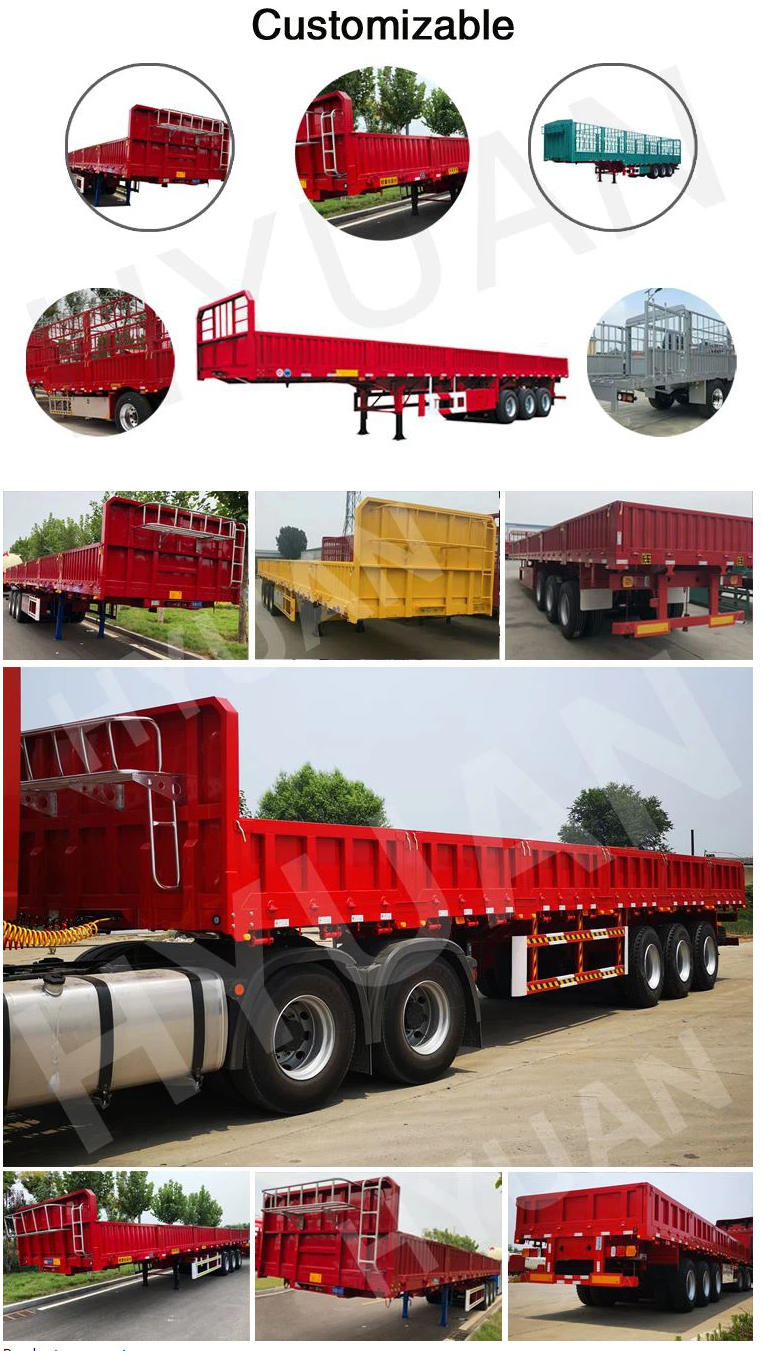

Customization:

Graphic customization (Min. Order1units

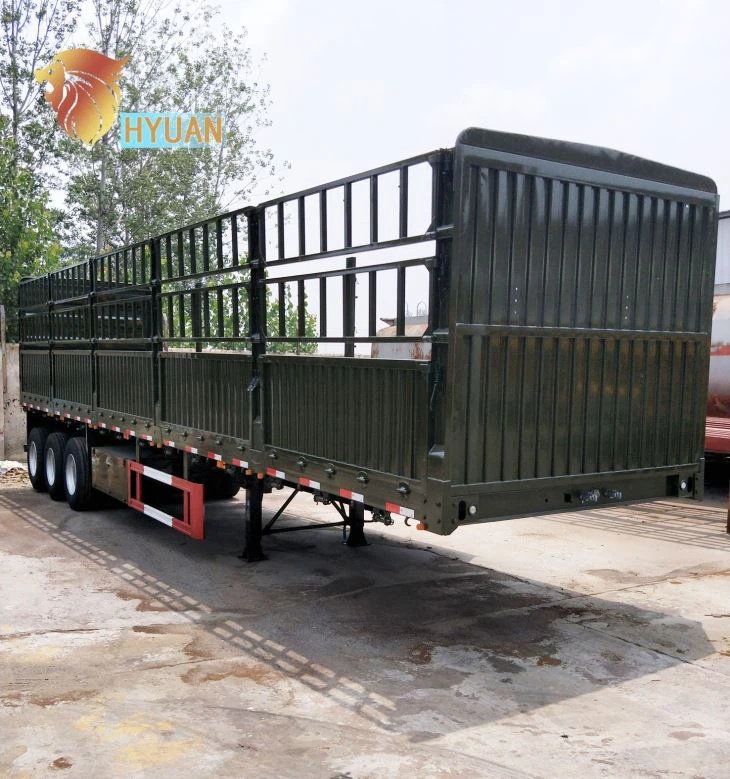

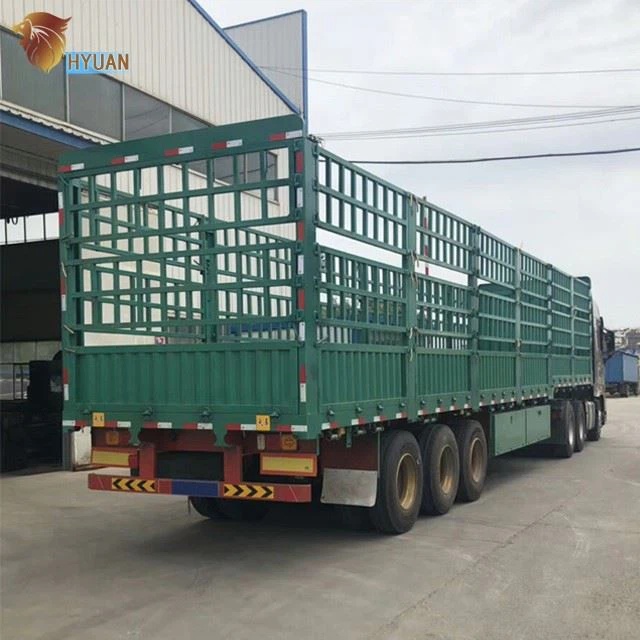

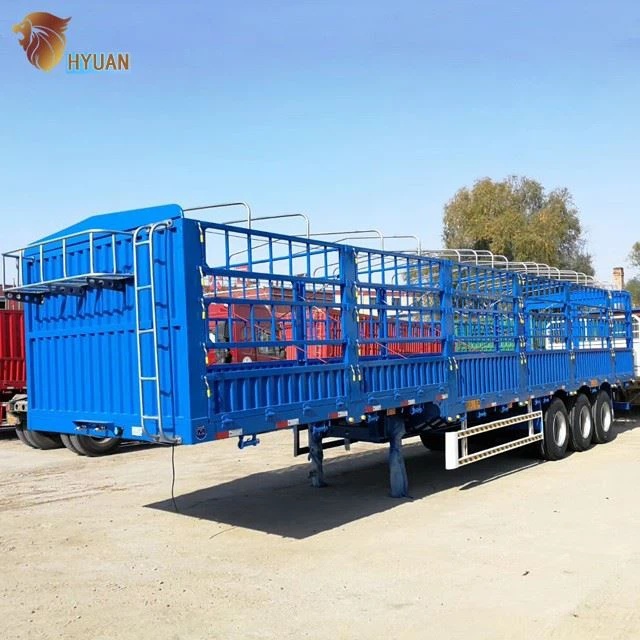

product display

Main Beam

T700/Q345, high strength carbon steel from largest steel company in China



Welding

Submerged Act Welding, full automatic technology



Axle

Famous brand in China, strong out-sourcing



Painting

Sand balsting, prime coating, surface painting,color opitional, wax polishing



Experience

Fully experienced R&D Dept. and workers since 2007

Product parameters

Name

Side Wall Cargo Semi Trailer

Gross Weight

About 7T-10T

Loading Capacity

30T-80T

Dimension

11000mm-13000mmx2500mmx600mm-800mm

(rail height can be optional 2400mm , total height 4500mm)

(Exact size depends on the final design)

Tyre specifications

optional

11R20  12R20 11R22.5 12R22.5

Axles

13T/16T, FUWA/BPW/HuaJing brand

Axle Number

2/3/4/ Axle or multi axle

Suspension

Mechanical suspension(German Type or America Type) or Air suspension

Rim

8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5

Spring leaf

8/10/12/16 pieces

King pin

JOST brand 2.0 or 3.5 inch bolts type or Welding type

Support legs

JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed )

Main Beam

Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel  .

Side beam

16mm-25mm channel steel (Material is Q235 carbon steel)

Platform plate

3mm flat plate (checkered plate are optional)

Brake chamber

6 double brake chamber

Twist Locks

Four ,Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers

Valve

WABCO/KANGJIAN valve

Light

Tail lamp with turn signal, brake light & reflector, side lamp etc

Painting

Sandblasting, rust prevention, two primer, two finish
