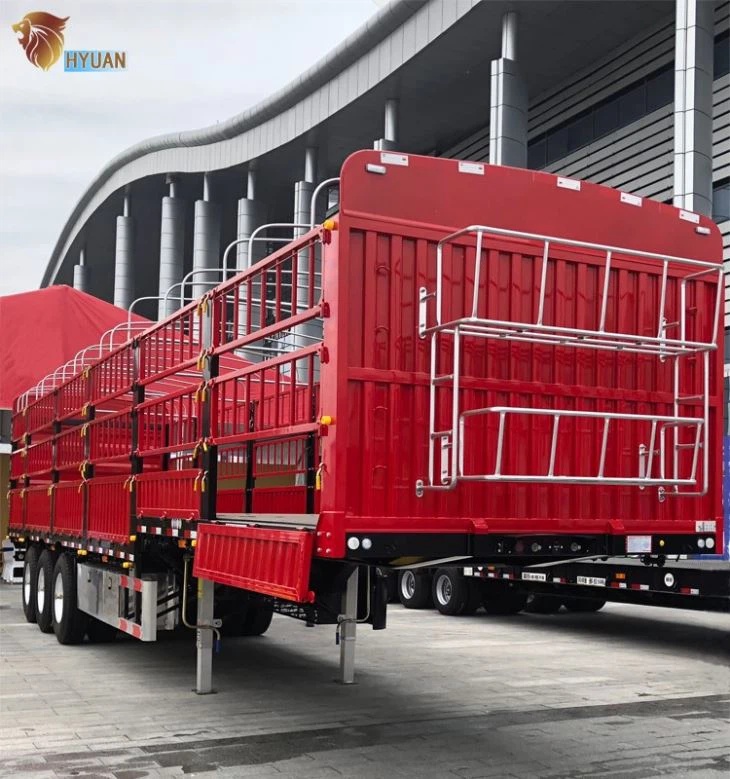

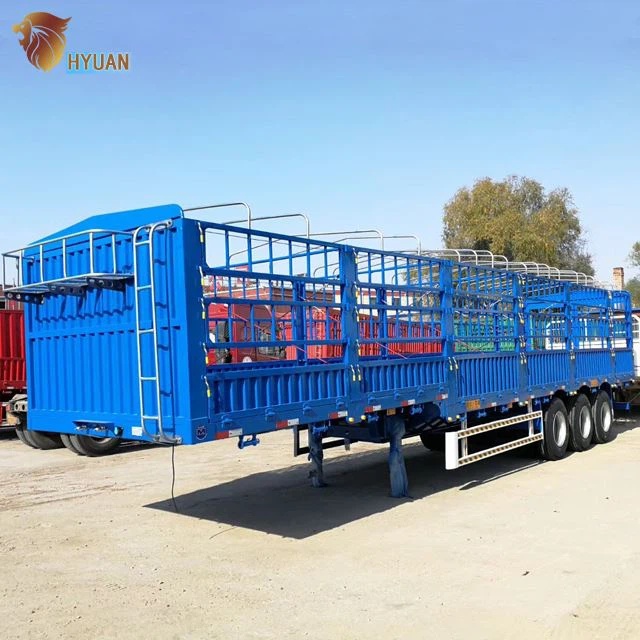

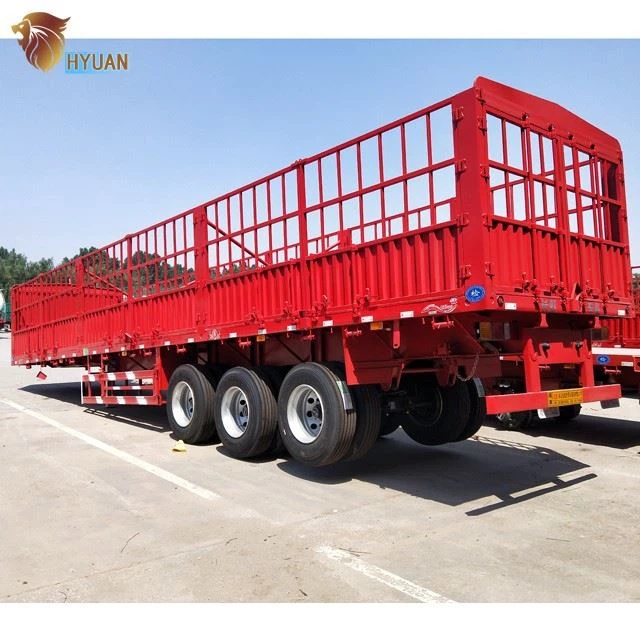

Side Wall Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Model Number:3axie sidewall semi trailer
Shipping:Support Sea freight
Lead Time:
Side Wall Semi Trailer
| Quantity(Units) | 1 - 3 | >3 |
| Est. Time(days) | 25 | Negotiable |
Customization:
Graphic customization (Min. Order1units
product display
Main Beam
T700/Q345, high strength carbon steel from largest steel company in China
Welding
Submerged Act Welding, full automatic technology
Axle
Side Wall Semi Trailer
Famous brand in China, strong out-sourcing
Painting
Sand balsting, prime coating, surface painting,color opitional, wax polishing
Side Wall Semi Trailer
Experience
Fully experienced R&D Dept. and workers since 2007
Product parameters
Name
Side Wall Cargo Semi Trailer
Gross Weight
About 7T-10T
Loading Capacity
30T-80T
Dimension
11000mm-13000mmx2500mmx600mm-800mm
(rail height can be optional 2400mm , total height 4500mm)
(Exact size depends on the final design)
Tyre specifications
optional
11R20 12R20 11R22.5 12R22.5
Axles
13T/16T, FUWA/BPW/HuaJing brand
Axle Number
2/3/4/ Axle or multi axle
Suspension
Mechanical suspension(German Type or America Type) or Air suspension
Rim
8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5
Spring leaf
8/10/12/16 pieces
King pin
JOST brand 2.0 or 3.5 inch bolts type or Welding type
Support legs
JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed )
Main Beam
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel .
Side beam
16mm-25mm channel steel (Material is Q235 carbon steel)
Platform plate
3mm flat plate (checkered plate are optional)
Brake chamber
Twist Locks
Four ,Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers
Valve
WABCO/KANGJIAN valve
Light
Tail lamp with turn signal, brake light & reflector, side lamp etc
Painting
Sandblasting, rust prevention, two primer, two finish
