Side Wall Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Side Wall Trailer Advantages:
2. Nice quality
3. Compensation may be paid if the delivery date is exceeded
4. Small order welcome

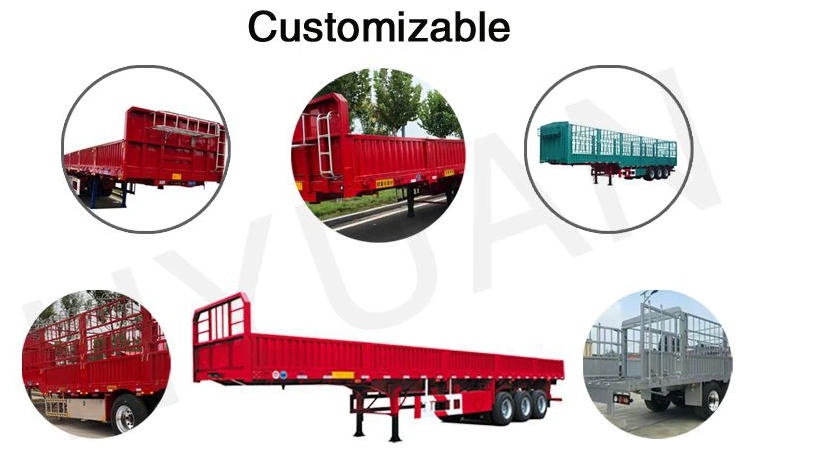

5. According to your order, we support sustom service
6. Welcome visits our company at any time
7. We will reply you for your inquiry in 24 hours
Production Description
|
Function |
Carry 40ft or 2*20ft container or other stuff |
|
Overall Dimension (Lx W x H)(mm) |
12500mm*2500mm*1600mm(According to customers requiremers) |
|
Loading Weight( KG) |
40000kg |
|
Total Weight(KG) |
46350kg |
|
Axle Brand |
3*13TON Axle FUWA Brand |
|
Axle Number |
Three |
|
Wheelbase(mm) |
7450+1310+1310 |
|
Suspension system |
Mechanical Leaf Spring Suspension |
|
Leaf spring |
90(W)mm*13(Thick)mm*10 Layer |
|
The material of Main beam |
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
|
Side beam |
Q235 16# channel steel |
|
Platform plate |
3mm Diamond plate |
|
Container Twist Locker |
12pcs container lock |
|
Tire Type and quantity |
12R22.5 12units |
|
Rim |
9.00-22.5 |
|
Traction Pin |
2” or 3.5” |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Standard |
|
Landing Gear |
28ton single action supporting legs |
|
Brake system |
Dual Line braking system |
|
Brake air chamber |
Six double chamber |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |

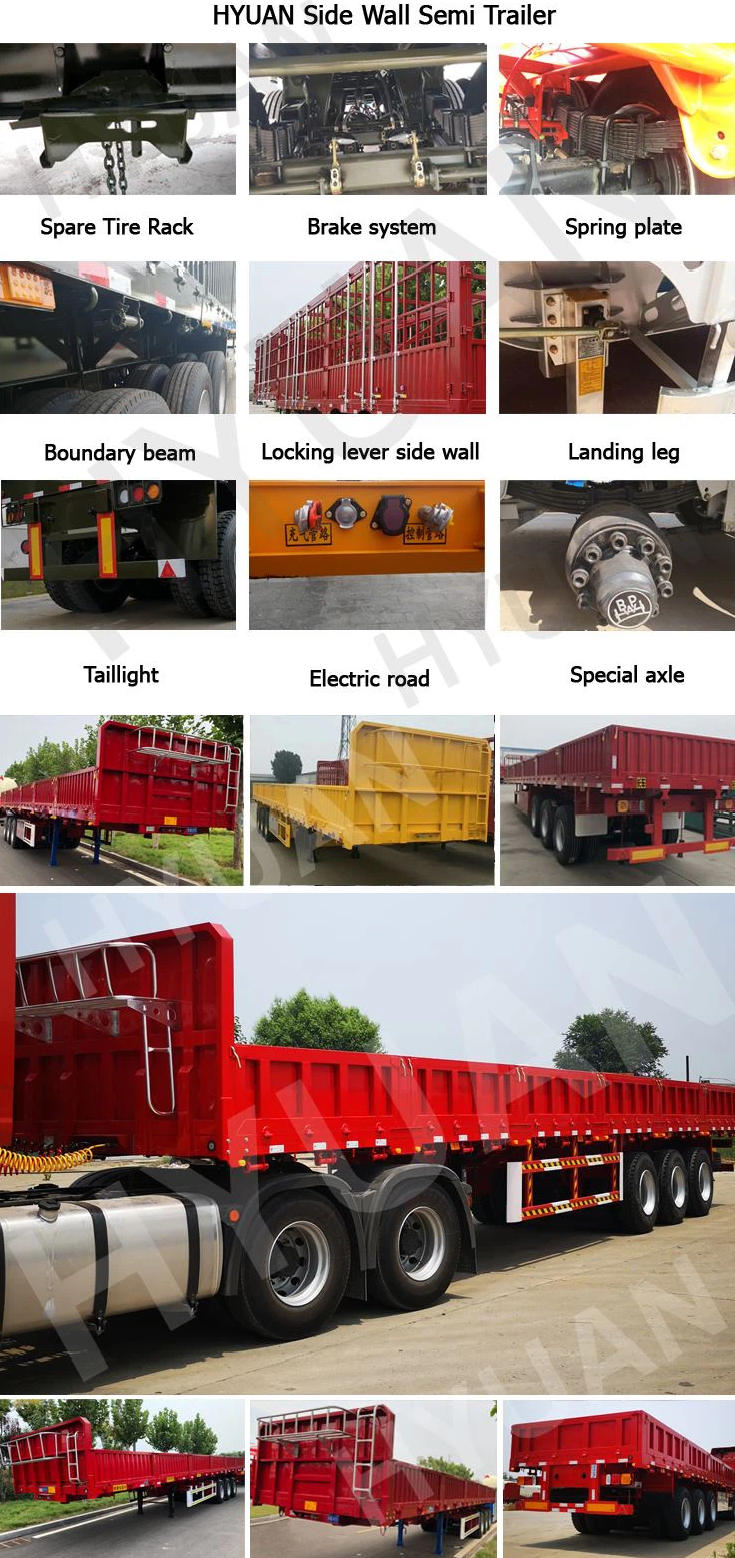

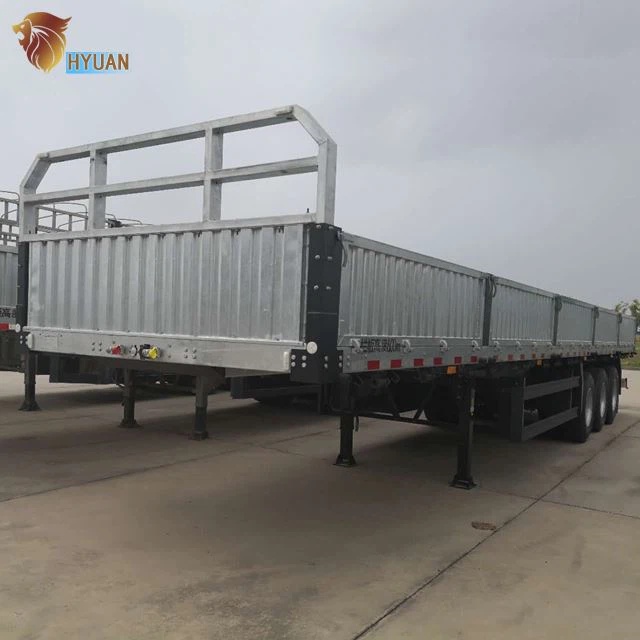

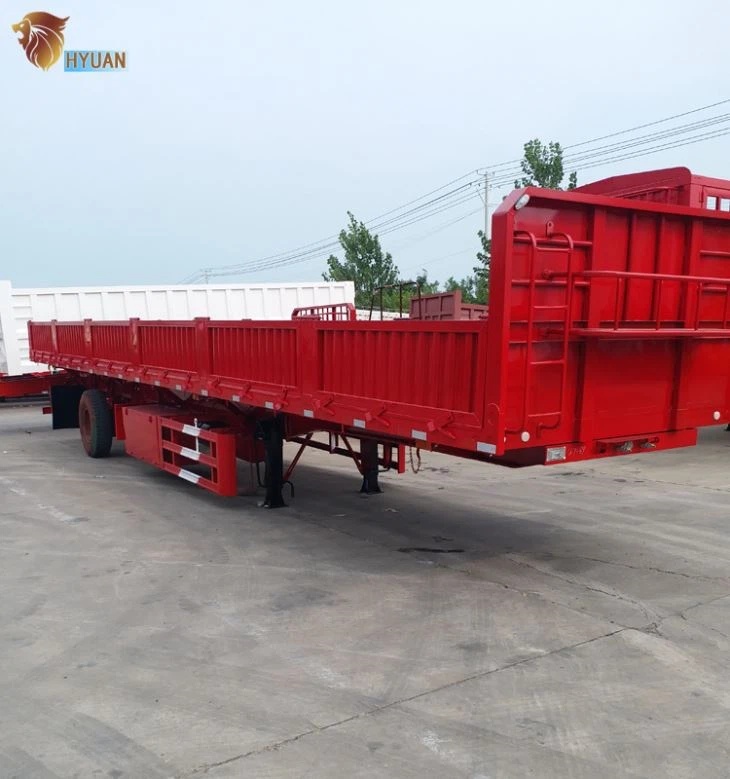

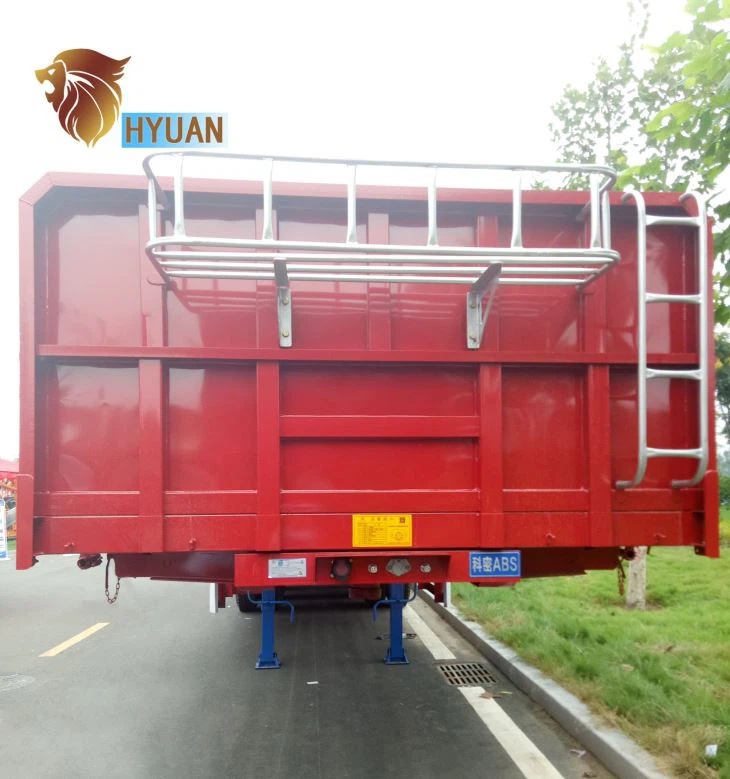

Side Wall Trailer, namely cargo area has 600mm or 800mm side panel, widely used to transport cargo, high duty and extra durability designed I beam,with high tensile steel,welded by automatic submerged-arc processes. we select FUWA axle and spare parts are from famous brands, stability is good.
1.We have well experienced in reseaching and developing different trailers:container trailer, low bed trailer, Side Wall Trailer, stake semi trailer, tank trailer and heavy duty trailer etc.
2.High tensile strength steel Q345B for I-beam
3.Tyre:10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
4.King pin:Optional for 2" or 3.5" Kingpin
5.Extendable distance:According to your requirements.
