3 Axles Side Wall Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Please Attention
HYUAN 3 Axles Side Wall Semi Trailer ,Fence, box, Drawbar Trailer are models for transporting bulk goods by side wall trailer and high side fence cargo trailer two types. Though customizing dimension, we can manufacture different dimensions and payloads for you.
Product Description
|
Product name |
3 Axles Side Wall Semi Trailer |
|
Axle NO. |
3 pcs |
|
Size |
11800*2500*1700mm(Optional) |
|
Tyre specifications |
12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional) |
|
Tyre No. |
12 |
|
Axles |
13T/16T,FUWA/BPW/YAHUA /HYUAN brand or optional |
|
Suspension |
Mechanical suspension(German Type or America Type) or Air suspension |
|
Payload |
30T-80T |
|
Rim |
8.00-20/8.5-20/8.8-20 (Patent of electrophoretic paint) |
|
Spring leaf |
8/8/8, 10/10/10, 12/12/12 pieces |
|
King pin |
JOST brand 2.0 or 3.5 inch bolts type or Welding type |
|
Support leg |
JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) |
|
Main Beam |
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel . |
|
Usage |
For bulk cargo/container transportation |
|
Brake System |
Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber. |
|
Twist Locks |
Four ,Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers |
|
Electrical system |
24V,7 pin socket,One set 7-core standard Cable |
|
Light |
Tail lamp with turn signal, brake light & reflector, side lamp etc |
|
Tool box |
1 set |
|
Spare tire carrier |
2 sets |
|
Color and Logo |
Depends on the buyers requirement. |

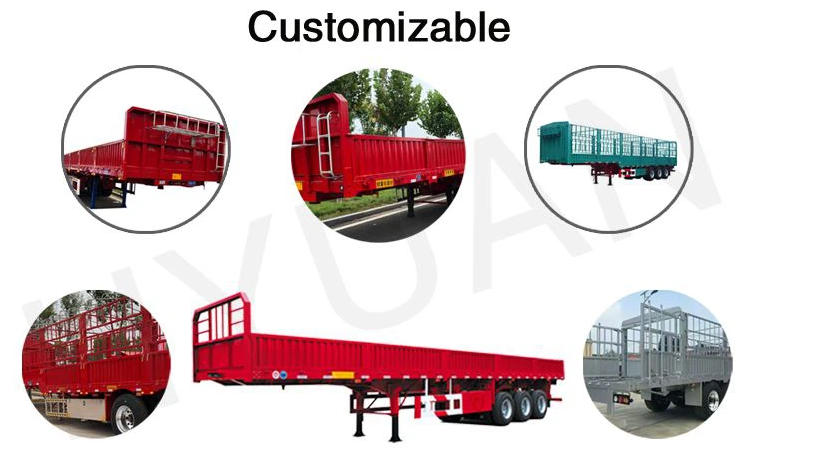

Above parameter is just for your refernce, Considering different countries have different road safety rules, defferent regulations, different road conditions.We can manufacture different side wall trailer according to your sepecial situation.

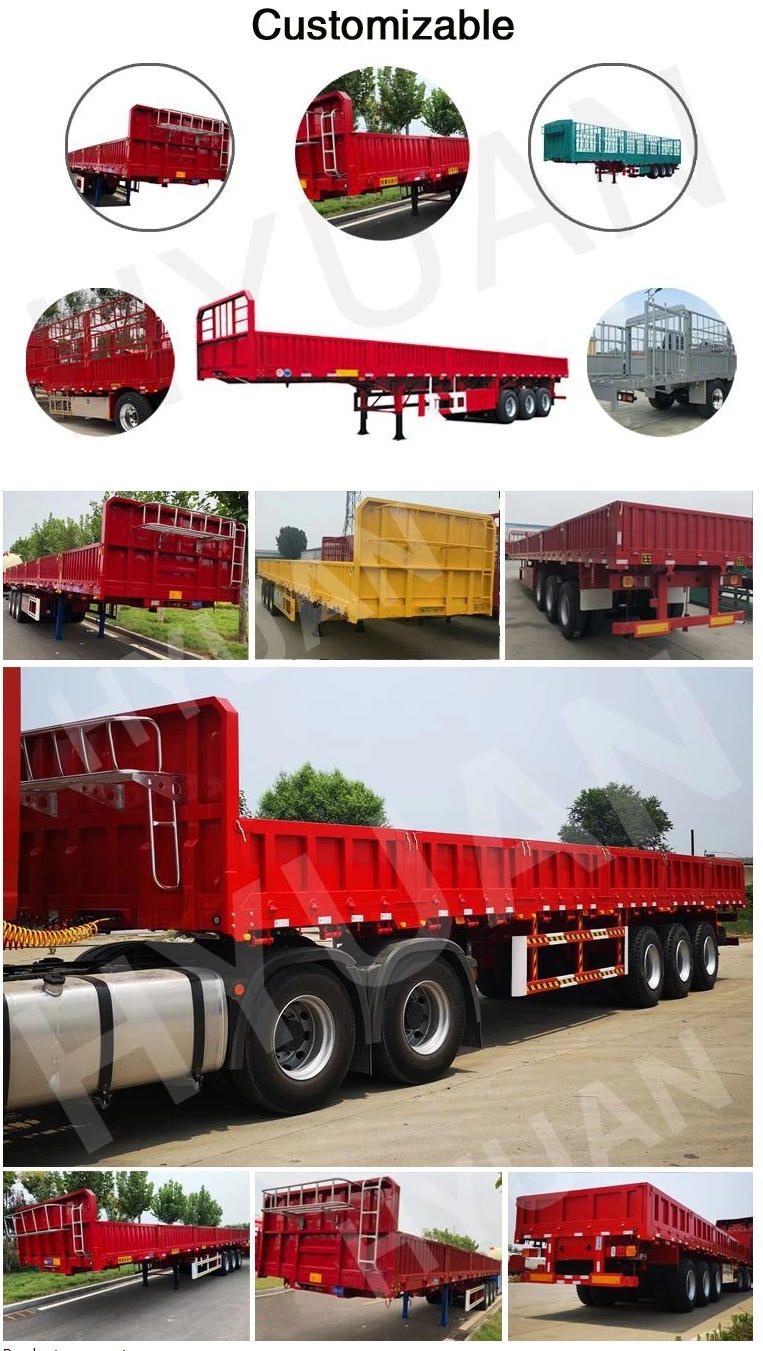

Detailed Images

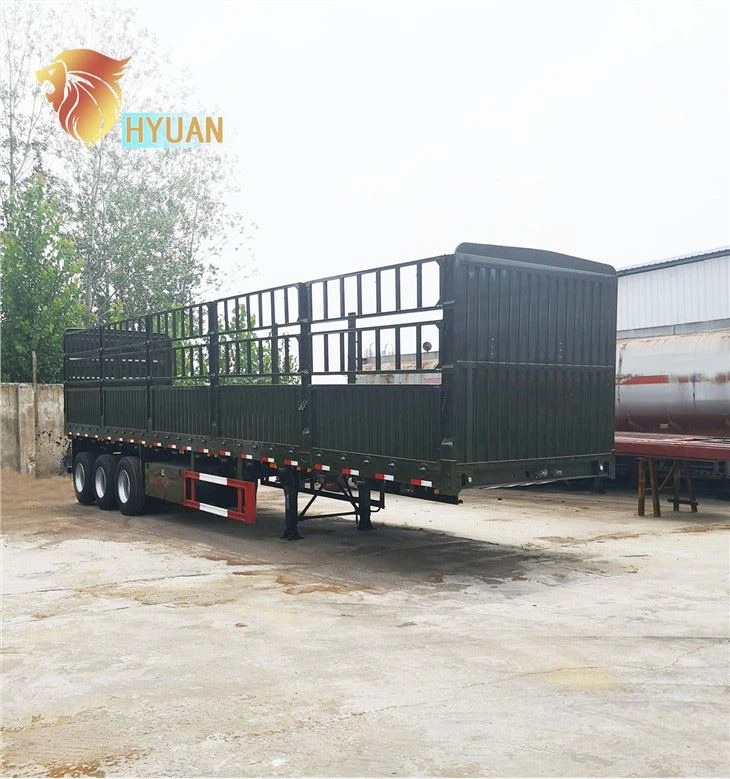

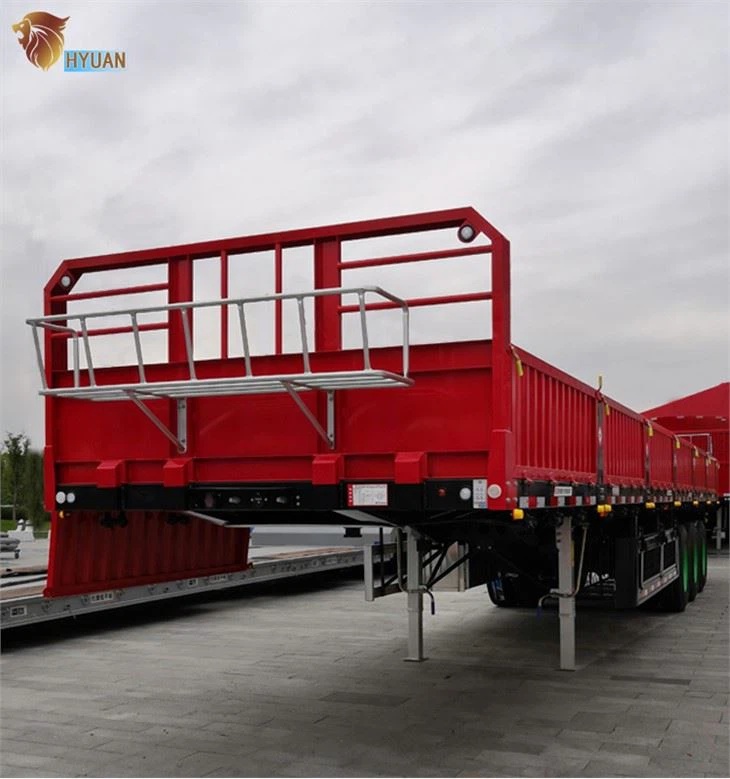

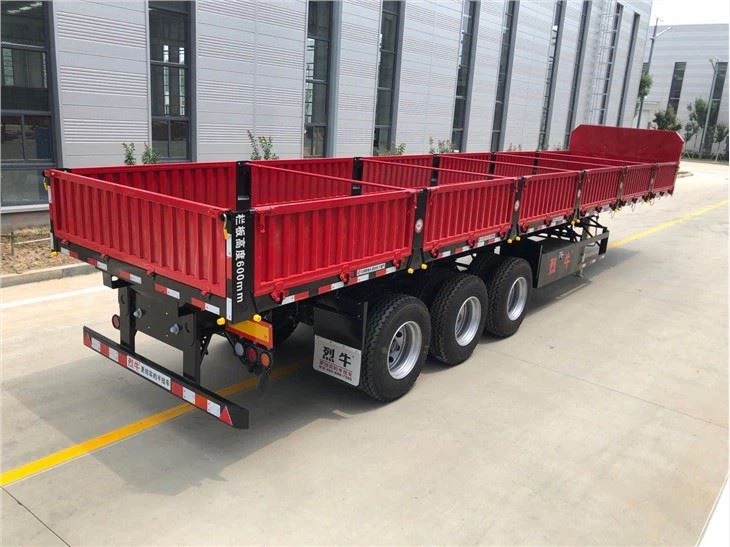

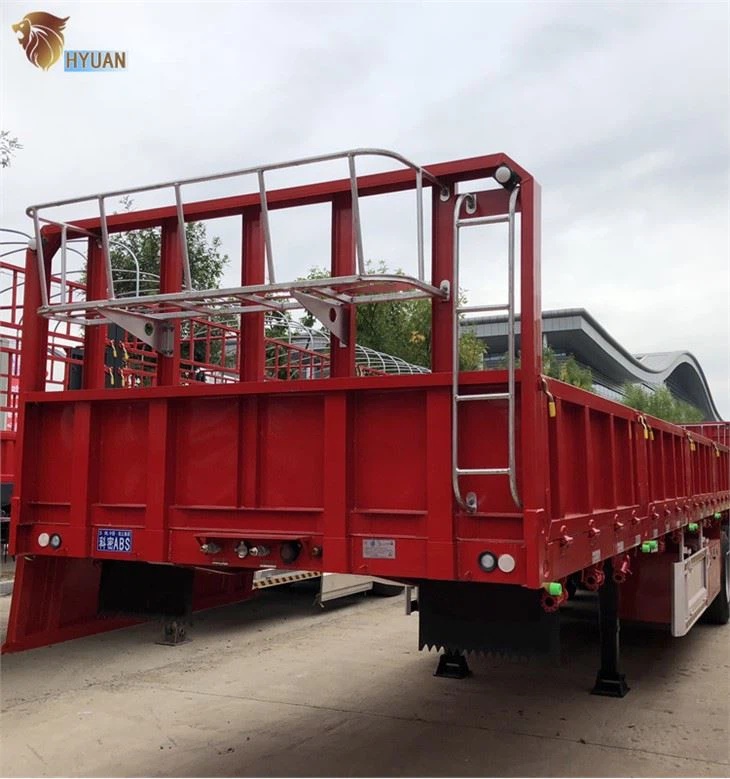

1. 3 Axles Side Wall Semi Trailer, And cargo semi trailer, adopt advanced design concept. The payload can reach 35 ton, 40 ton, 60 ton. After fully understanding and analyzing the transportation environment in different countries.
2.The Side wall semi trailer trailers widely used in transportation industry. Like can load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.
3 Axles Side Wall Semi Trailer advantage:
1.Capable of rough road condition: international standard heavy duty chassis and running system applied to cope with rough road condition;
2. Light design: high tensile steel material and advanced design to achieve lower weight with high carrying capacity, reduce operation cost;
3.Surface treatment:(shot blasting +painting)Zinc-rich-primer and polyurethane topcoat as customers choices.
