45ft Gooseneck Skeleton Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction

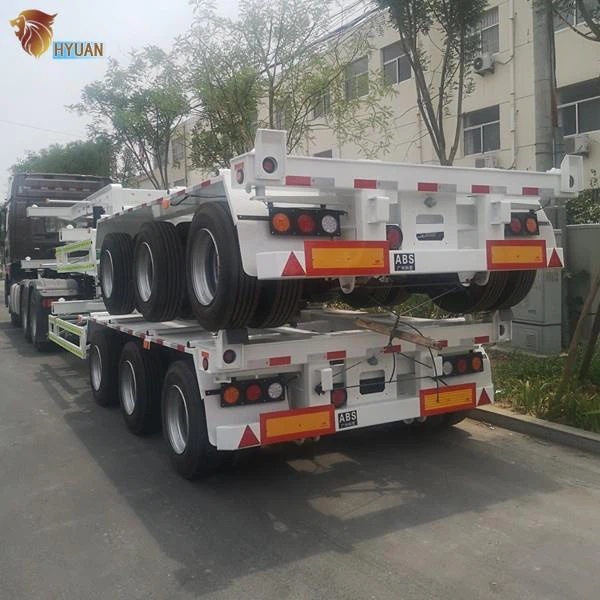

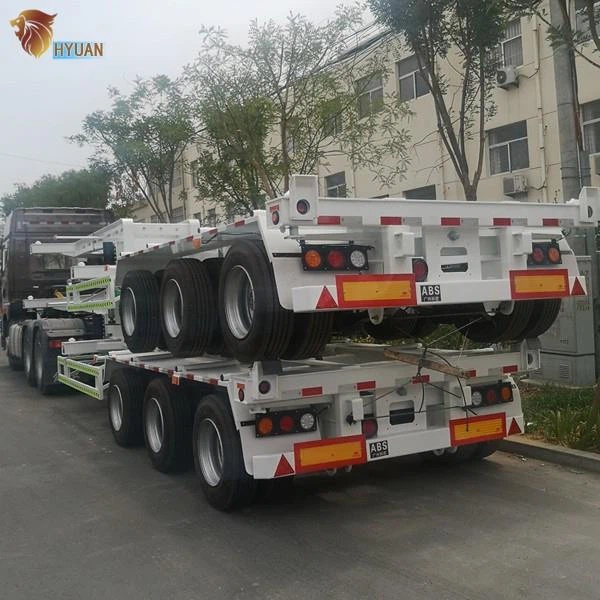

3 Axles 40ft 45ft container chassis skeleton semi trailer is the best choice to transport all kinds of containers.
Skeletal trailer can transport a 20-foot container, a 40-foot container, a 45-foot container or two 20-foot containers at the same time.
An adjustable chassis provides optimized weight distribution and allows containers to be moved to the rear of the trailer for easy loading and off-loading.
Product specification
|
Overall Dimension(mm) |
12500x2500x1650mm(Optional) |
|
Wheelbase |
7,500mm+1,310mm+1,310mm |
|
Payload |
40,000kg |
|
Tare weight |
6,500kg |
|
G.V.W.R. |
46,500kg |
|
Function |
transport 1x20ft, 2x20ft, 1x40ft container |
|
Running System |
|
|
Main beam |
height of the beam is 500mm,upper plate is 14mm, down plat is 16mm, middle plate is 8mm. |
|
Side beam |
16# |
|
Axle |
3x13Ton ZY brand |
|
Axle Number |
Three |
|
Tire |
12R22.5, 12 pcs. Taitong brand |
|
Rim |
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
|
Suspension system |
Mechanical Suspension |
|
Steel Spring |
10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
|
Electrical System |
Chinese standard 24V lighting system |
|
Brake system |
Dual line pneumatic brake, no ABS |
|
Brake air chamber |
6 units T30/30 Double brake chambers |
|
Emergency relay valve |
Standard |
|
Diamond plate |
4mm |
|
Traction/King Pin |
2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
|
Landing Gear |
Yahua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location |
|
Accessories |
|
|
Tool box |
1pcs, One crank and one shaft head wrench |
|
Mud guard |
Steel mud guard and front mudguard |
|
Spare wheel carriers |
2 pcs |
|
Bumper |
Rear bumper with adjustable height |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core electric cable protected by PVC conduit on main frame |
|
|
Paint |
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed |
|
Packing |
Nude, Polish with wax before shipping |
Product feature and application
1) 20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional
2) Chassis type: Flat bed, skeleton type
3) Main beam:Main beam 500mm height,Q345 or T70 high strong steel
4) Suspension; Rigid, single point or air suspension
5) Side beam: 14mm or 16mm channel steel or bending pieces
6) Axles number: 2axles, 3 axles ,4 axles.

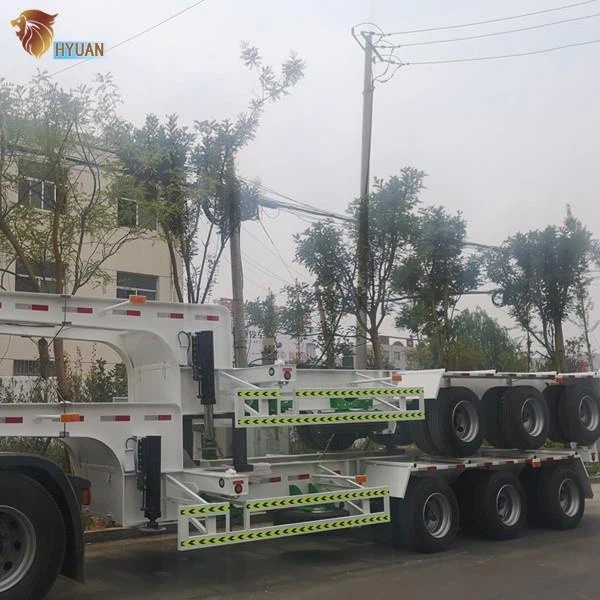

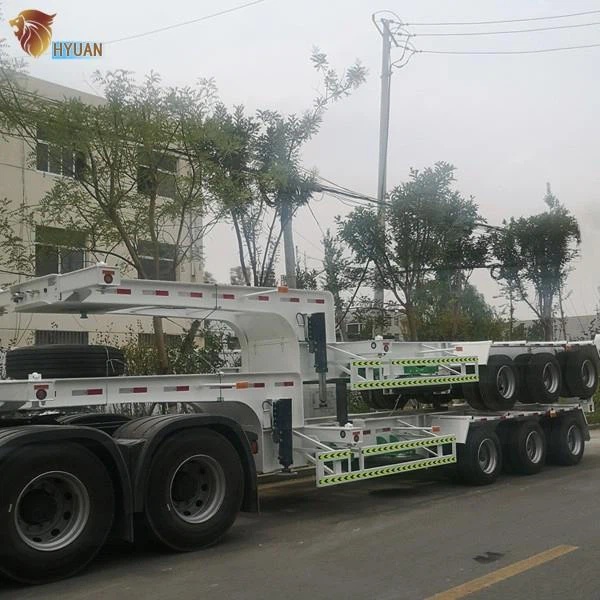

7) Design type: Straight beam or gooseneck type

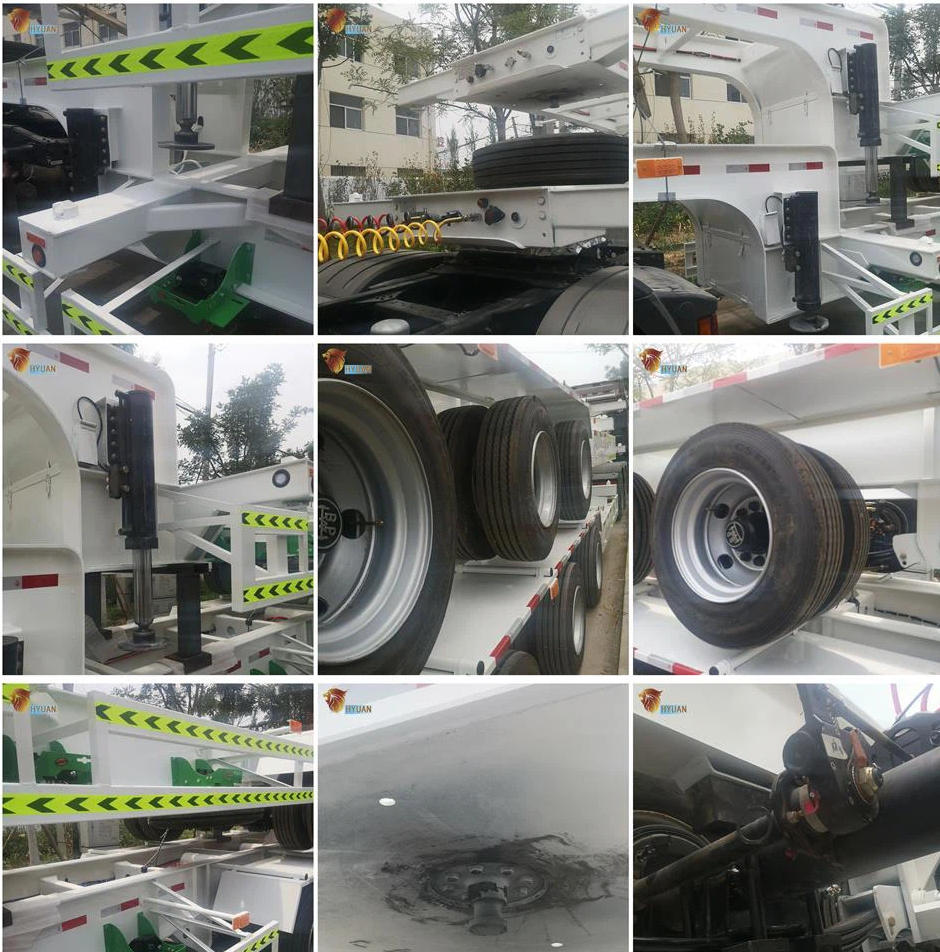

Production details
1) Usage:In the port for containers or bulk cargos transportation.
2) The rated capacity varies widely from 30Tons to 65Tons, and the dimension different from 6100mm to 15820mm, we can manufacture it according to your needs.
3) Axles: Fuwa / BPW with different tonnages by your need with price differences.
4) Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5) Loading Deck can be skeleton or flatbed.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Mode of transport: bulk cargo, ro-ro transport, container transport.
We can arrange the most cost-effective transportation solution according to the number of semi-trailers required by customers.
Our services
(1) OEM Manufacturing welcome: Product, Package..
(2) Sample order
(3) We will reply you for your inquiry in 24 hours.
(4) After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
