40ft Gooseneck Skeleton Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction

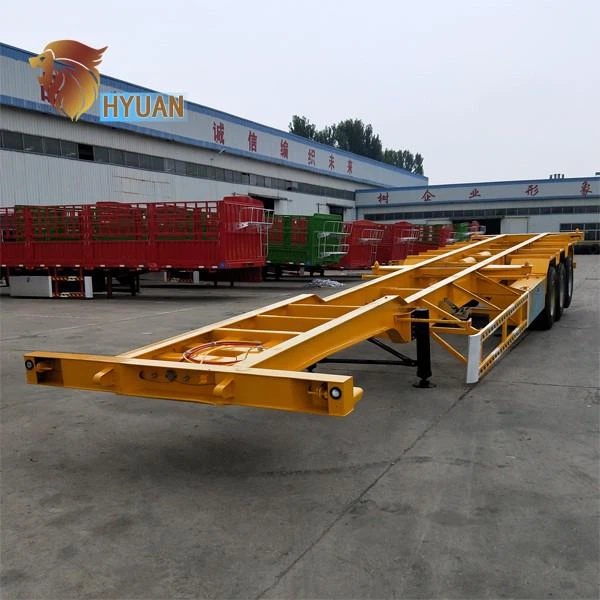

3 Axles 40ft container chassis skeleton semi trailer is the best choice to transport all kinds of containers.
Skeletal trailer can transport a 20-foot container, a 40-foot container, a 45-foot container or two 20-foot containers at the same time.
Product specification
|
Trailer Model |
Skeleton Semi Trailer |
|
Specifications |
|
|
Overall Dimension (Lx W x H) (mm) |
12500*2500*1550 |
|
Tare Weight(KG) |
6550 |
|
Loading Weight( KG) |
40000 |
|
Wheel Base |
2300mm+1310mm+1310mm |
|
Semi Trailer Chassis |
|
|
The material of Main beam |
The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm. |
|
Axle Brand |
13TON Fuwa axles brand |
|
Axle Number |
3 |
|
Suspension system |
Common Mechanical suspension |
|
Leaf Spring |
10/10/10 leaf spring suspension |
|
Landing Gear |
Chinese standard 28ton |
|
Tire Type and quantity |
12R22.5 tyres, triangle brand |
|
Container Twist Locker |
12pcs container lock |
|
Spare Wheel Bracket |
1 pieces |
|
Tool Box |
1 Standard |
|
Electrical & Paint |
|
|

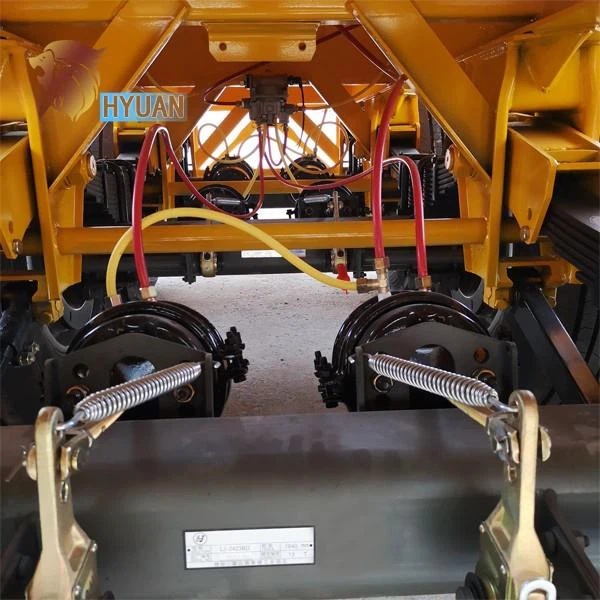

Brake system |
Dual Line braking system |
|
Brake air chamber |
Two double and two single chamber |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
|
Side Guard |
According to customer’s requirement |
|
Painting |
Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request |
|
Packing&Shipping |
|
|
Packing |
NUDE, Polish with wax before shipping |
|
Pattern and Logo |
According to customer’s request |
|
Shipping Terms |
Shipped by bulk cargo ship, Roll-roll ship or in container |
Product feature and application
(1) Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
(2) Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.
(3) We are serious about after-sales service.

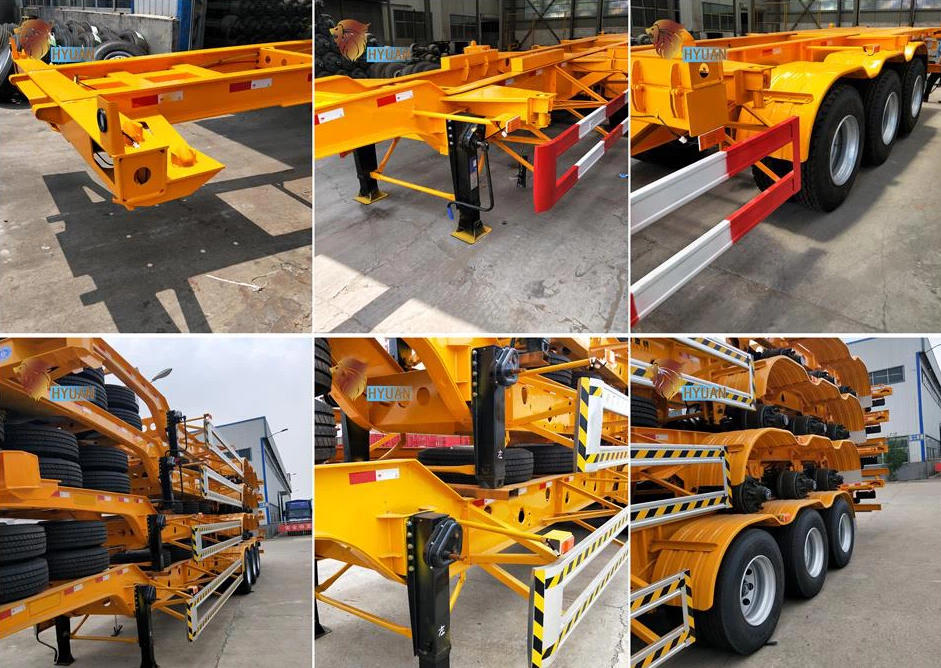

Production details
(1) American type/ German type ,Drum axles /Spoke axle 8T-25T
(2) Trailer mechanical suspensions 11t*2 13t*3 16t*4
(3) King pin /fifth wheel 2 inch(50# )& 3.5 inch(90#)
(4) Leaf spring 90 width*13 thickness*10 pcs 75*13*8pcs 120*16*12pcs( hot seller ) leaf spring
(5) Landing gear capacity 20T 25T 28T 30T single side & double side operation landing gear
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving

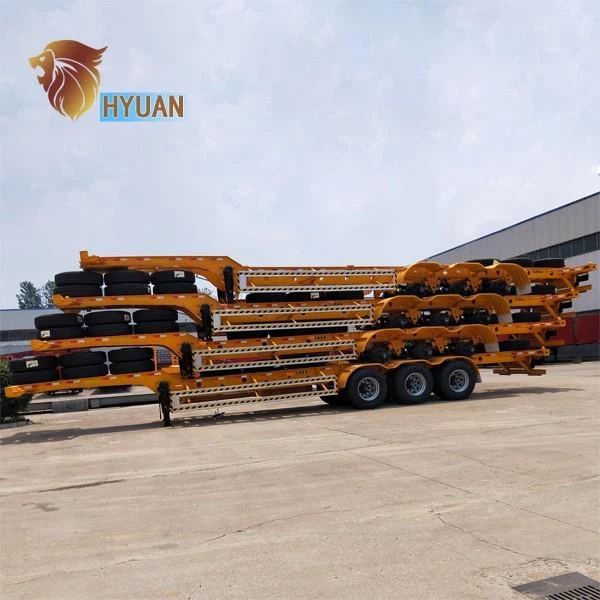

Nude , Skeleton semi trailer transport: We generally recommend put inside 40ftHQ container, the container transport can save a lot of freight. And of course there are other modes of transport: ro-ro shipment and bulk cargo shipment
Our services
(1) OEM Manufacturing welcome: Product, Package.
(2) Sample order
(3) We will reply you for your inquiry in 24 hours.
(4) After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
