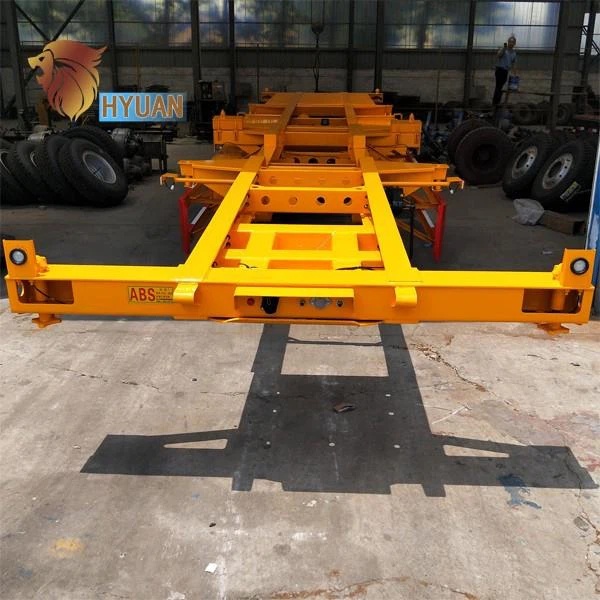

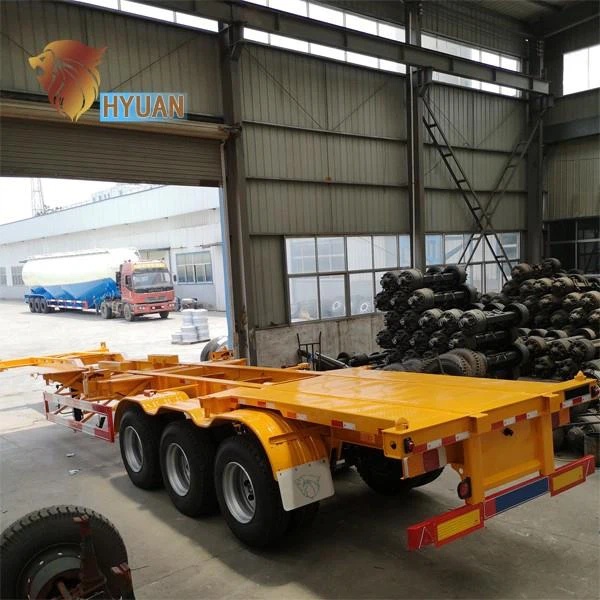

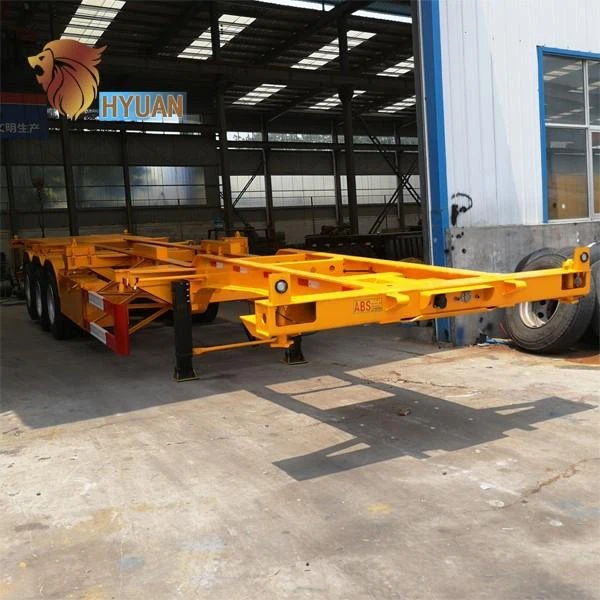

3axles Gooseneck Skeleton Semi Trailer
-
Leading sales products:
Powder material transport semi-trailer, concrete mixing transport truck, low flatbed semi-trailer, fence semi-trailer, box type transport semi-trailer, warehouse rack transport semi-trailer, dump truck, dump semi-trailer, low flatbed dump semi-trailer, container transport semi-trailer, oil tank truck, etc.
Product Introduction
The skeleton container semi-trailer uses the streamline design concept, and the appearance is simple, eliminating the cumbersome decoration. The normal speed of the transport vehicle is more than 100k. The flow line design of the vehicle can reduce the eddy current and turbulence when the oncoming airflow passes through the vehicle, thus reducing the air resistance. Overall coordination and feel beautiful both visually, but also reduce the drag coefficient of the vehicle, reducing fuel consumption, energy-saving and environmental protection.
Product specification
|
Product type |
Container transportation trailer series |
|
Outside dimension |
Length:12400mm,width :2500mm,height:1575mm size can be choose freely |
|
Tare weight |
About 6.2T |
|
Loading capacity |
30T-45T |
|
Axle |
13T/16T,FUWA/BPW Brand |
|
ABS system |
Optional |
|
Suspension |
Mechanical suspension (Germany type or America type) or Air suspension (china brand or BPW brand) |
|
Spring leaf |
90(W)mm*13(Thickness)mm*10Layer,optional |
|
Tires |
12.R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
|
Rim |
9.00-22.5/8.00-20/8.5-20 China brand |
|
King pin |
JOST 2.00 or 3.5 inch |
|
ABS |
Optional |
|
Valve |
WABCO valve |
|
Support legs |
JOST brand |
|
The material of main beam |
The height of the beam is 500mm ,upper plate is 14mm, down plate is 16mm, middle plate is 8mm. material is Q345B steel |
|
Twist locks |
Four, eight or twelve pieces |
|
Floor plate |
3mm diamond steel plate |
|
Support leg |
JOST brand |
|
Brake Chamber |
WABCO BE 6 RELAY VALVE; T30/30+T30 Spring brake chamber (TKL brand); Two pieces of 45L air tanks or China brand |
|
Electrical system |
24v,7 wire harness |
|
Light |
LED light (special for export market ) |
|
Tool box |
One piece 1mx0.5mx0.5m (size can be choose freely ) |
|
Painting |
Compete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime ,2coats of final paint |
Product feature and application
(1) Heavy duty and extra durability designed I beam;opting for high tensile steel Q345, welded by automatic submerged-Are processes. Top flange 14mm,width 140mm; middle flange 8mm; bottom flange 16mm, width 140mm
(2) The crossbeam is stamped with high-quality steel plate to form a groove, and the front and rear end beams are welded rectangular sections. The middle container locking device is provided with an integral long beam to improve the bearing capacity of the container locking device.

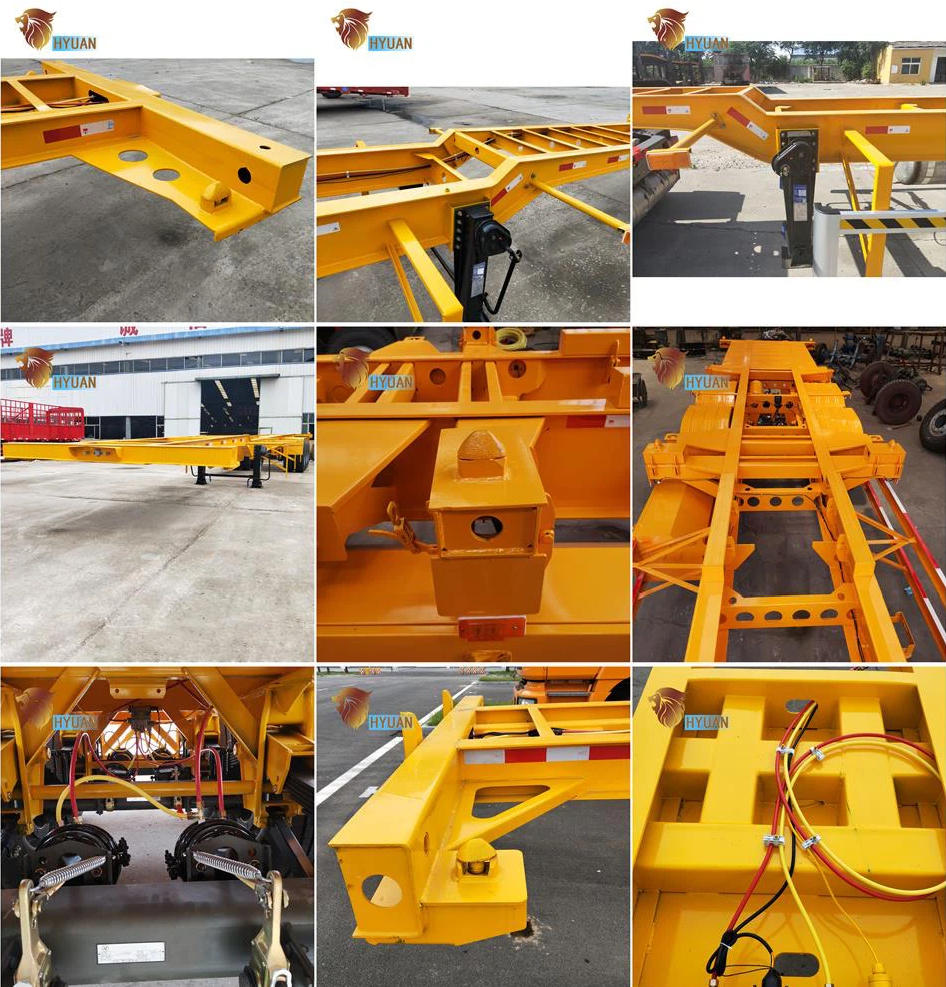

Production details
1. Strong trailer frame was made from T700 steel with lighter tare weight.
2. All cross beams are completely reinforced
3. Heavy duty type suspension:Mechanical, airbag, and bogie suspension to meet your transportation demand.
4. Strong container lock standard,ISO type,Korea type optional
5. Two pieces spare tire carriers, water tank, fuel tank, etc, are optional accessories which build modern transportation.
Product qualification
The products are excellent and have passed many national indicators, I S O 9 0 0 0 and C C C, and won many honors. Has been awarded the title of "meritorious enterprise", "advanced enterprise" and "star enterprise" by the county Party committee and the county government.
Deliver,shipping and serving
Nude, Skeleton semi trailer transport: We generally recommend put inside 40ftHQ container, the container transport can save a lot of freight. And of course there are other modes of transport: ro-ro shipment and bulk cargo shipment
FAQ
(1) Q:Are you a Manufacturer or Trading company?
A: We are trailer manufacturer and we have our own factory in Shandong province, China. You are welcomed to visit our factory to check our various trailers.
(2) Whats your MOQ?
One unit trailer.
(3) Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
(4) Whats the delivery time?
It depends on the semi trailer model.The delivery time of common semi trailer within 15 days after receiving the payment
(5) How do you ensurethe semi trailer quality?
We are direct factory and we have professional quality inspector.We will not let any imperfections departure from our factory.
